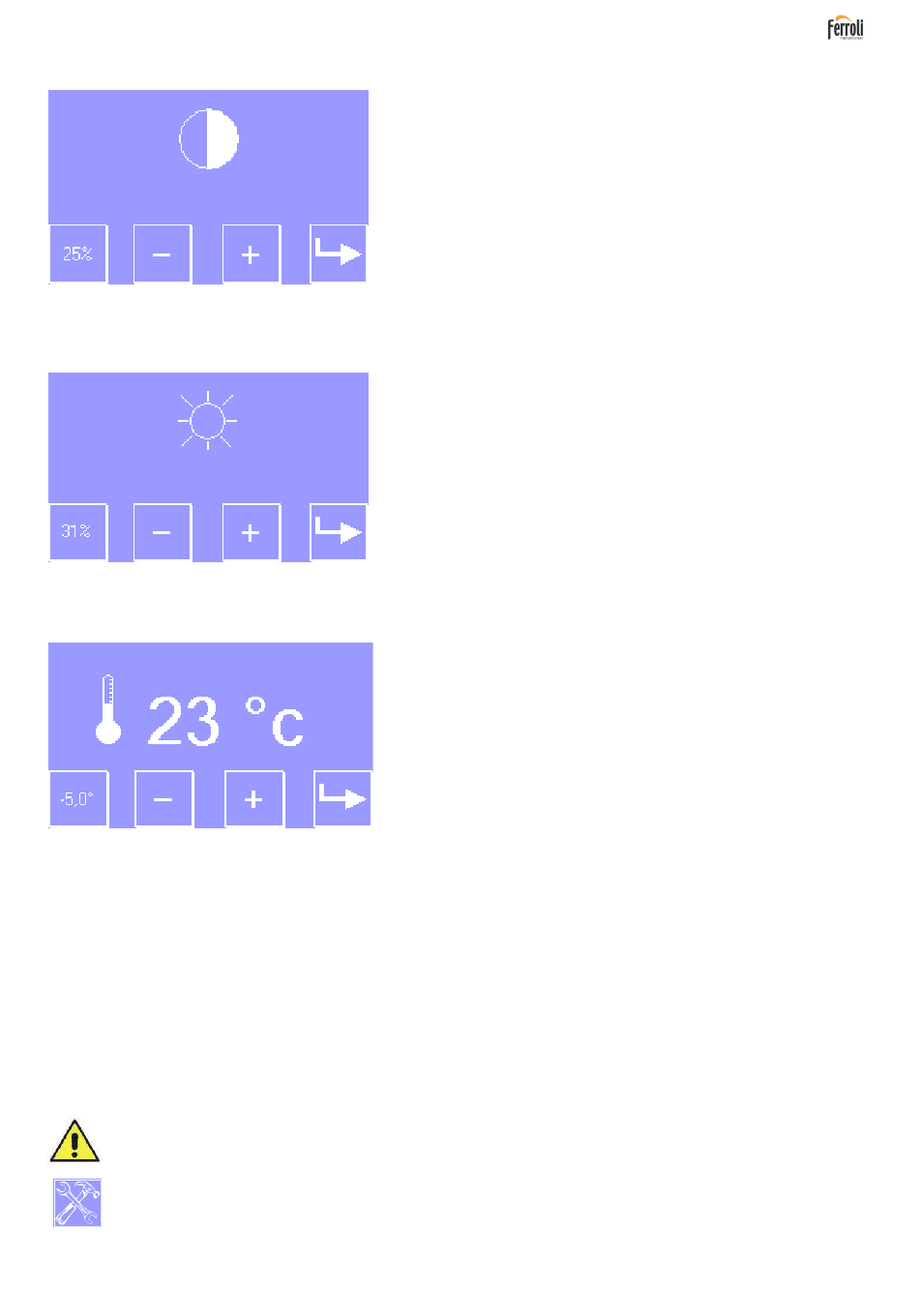

2.4.1 Adjusting the contrast

P1 P2

2.4.2 Adjusting the brightness

P1 P2
2.4.3 Setting the temperature probe
P1 P2
3 UTILITY DISPLAY USE

3.1 Main screen

The UTILITY display functions for interaction with the heating unit are:
Heating unit alarms cannot be RESET from the UTILITY display.
The service due alert flashes on the main screen when extraordinary maintenance of the heating unit is required.
The 4 touch controls are P1, P2, P3 and P4 and are located at the bottom of the display.
Press and hold the area marked by the dotted line corresponding to command P1 to
access the contrast adjustment menu.
The contrast percentage value is shown in the bottom left at area P1. Select P2 and
P3 to reduce and increase the value. Press P4 and the company logo screen will
reappear.
P3 P4
When the display is started, press and hold the area marked by the dotted line
corresponding to command P2 to access the brightness adjustment menu.
To adjust, follow the same procedures as given in the previous paragraph.
P3 P4
When the display is started, press and hold the area marked by the dotted line
corresponding to command P4 to access the remote probe setting menu.
This function allows the probe to be set with the actual ambient temperature
detected with an external thermometer.
To adjust, follow the same procedures as given in the previous paragraph.
P3 P4
- turning on and/or off;
- display of operation status;
- alarm conditions (see reference unit manual);
- temperature adjustment (ambient and/or heating);
- power adjustment;
- ventilation level;
- setting time management programs (chronothermostat);
- service due alert.
