Dexxo Compact RTS

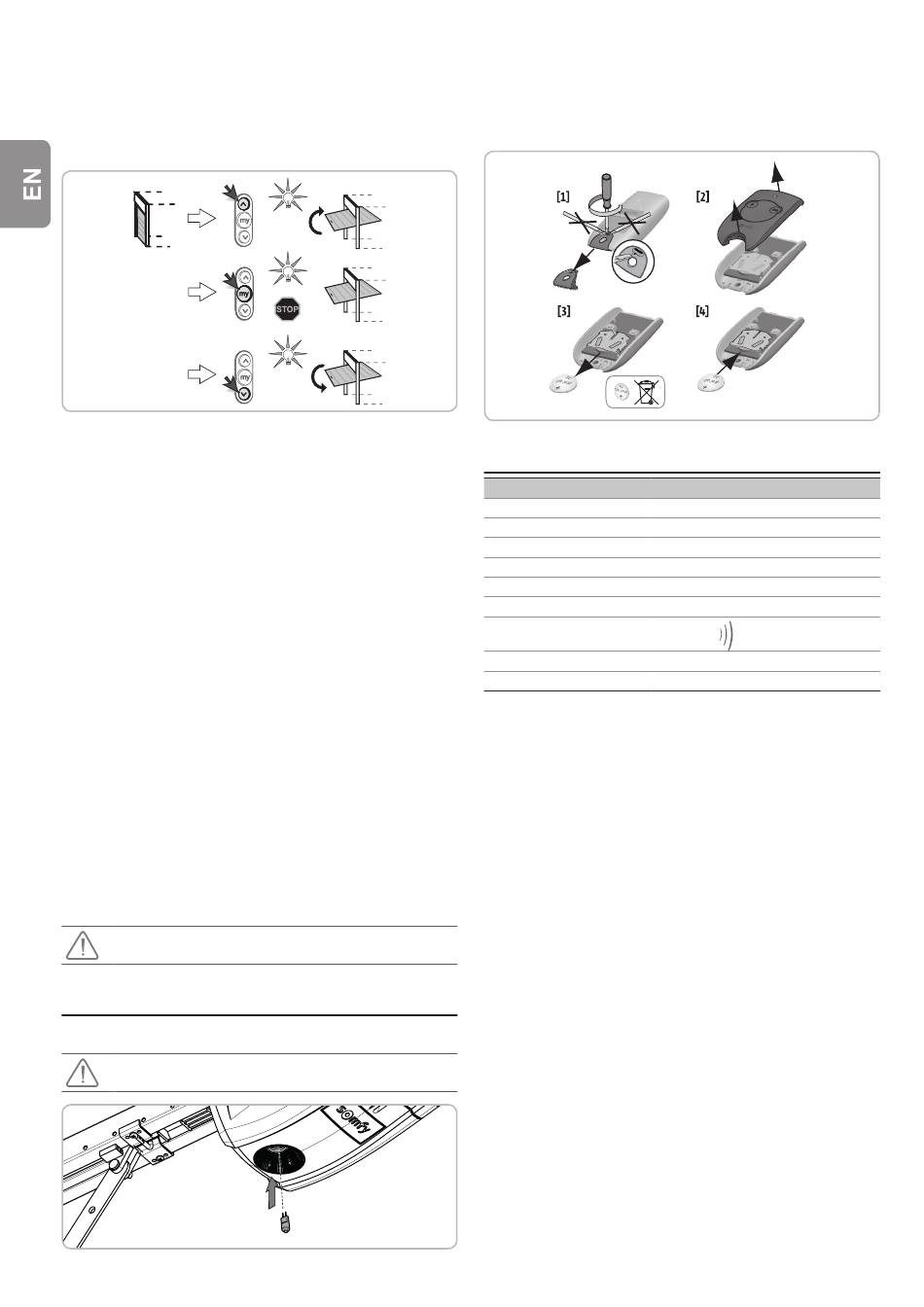

4.2 Specific operation

Depending on the peripherals installed and the operating options programmed
by your installer, the Dexxo Compact RTS motor may have the following
specific functions:
Operation in "Total opening" mode with a TELIS type remote
control or similar
Operation with safety cells
An obstacle placed between the cells will prevent the door from closing.
if an obstacle is detected when the door is closing, the door stops then reopens.
The integrated lighting is activated intermittently for 30 seconds.
Operation with orange flashing light
The orange light is activated whenever the door moves, with a 2-second pre-
warning before movement starts.
Operation using the backup battery - part no.9001001
If a backup battery is installed, the Dexxo Compact RTS motor will work even
during a general power outage.
Operation is then activated under the following conditions:
- Reduced speed.
- The lighting does not work.
- The safety devices do not work.
Battery specifications:
- Battery life: 24 hours; 5 to 10 operating cycles depending on the weight of the
door.
- Recharging time: 72 hours
- Service life before replacement: Approximately 3 years.
For optimum battery life, it is recommended that the main power supply be
switched off and the motor operated using the battery for several cycles, three
times a year.

4.3 Power outage

Following a power outage, the motor must recognise its "fully open" position
again.
Open the door fully using a memorised remote control. The door will open at a
degraded speed.
Allow the door to open to its "fully open" position.
5 - MAINTENANCE
5.1 Changing the integrated light bulb
Handle the bulb with gloves or a cloth.
Only use a 24 V - 20 W G4 halogen bulb.
4
24 V 20 W
5.2 Checks
Safety devices (cells)
Check for correct operation every 6 months (see section 4.2).

5.3 Replacing the battery

6 - TECHNICAL DATA

Technical data
Power supply
Standby power consumption
Max. power consumption
Tensile force - Maximum force
Use
Number of storable channels
Radio frequency
Integrated lighting
Operating temperature
230 V - 50 Hz
4 W
120 W
600 N
semi-intensive
32
433.42 MHz
< 10 mW
24 V 20 W G4 halogen bulb
-20°C / +60°C
