Troubleshooting the sauna heater

Table 1: Troubleshooting the sauna heater
Symptom Possible cause
Heater is not wor- Thermostat is not
king. set high enough.
Timer is not in the
range correspon-
ding to ON.
Heater is not wor- Fuses in the distri-
king. bution board have
blown/tripped.
Heater is not wor- Internal temperatu-
king. re cut-out activated.
For more details,
see The section
called Temperature
cutfunction, Page 7.
The fuses/earth The heater has re-
fault breaker in the mained inactive for
distribution board a long time, cau-
trip as soon as the sing an insulation
heater is turned on fault in the tubular
or during operation. elements.

ROHS (RESTRICTION OF HAZARDOUS SUBSTANCES)

Instructions for environmental protection:
Do not dispose of this product with the domestic refuse when no
longer in use. Take it to a recycling station for electrical and
electronic equipment instead.
For further information, see the symbol on the product, manual or
packaging.
Figure 6: Symbol
The different materials can be recycled as specifi ed by their
labelling.
You can help protect the environment by recycling or reusing
the spent appliances or the materials in them. Take the product
to a recycling centre without the sauna stones or the soapstone
jacket (if fi tted).
Contact your local authorities for details of your nearest recycling
centre.

SPARE PARTS LIST

Remedy
Raise the thermos-
tat setting.
Raise the time set-
ting, but not higher
than 3 hours.
Replace/reset the
fuses in the distri-
bution board that
have blown/tripped.
Check and remedy
the cause of tem-
perature cut-out
activation.
Resetting the tem-
perature cut-out.
There is a red
button under the
heater which can
be pressed in (see
Figure 5).
Switch off the hea-
ter and do not use
it. Contact an
electrician to check
the fault, or contact
the dealer during
the guarantee
period.

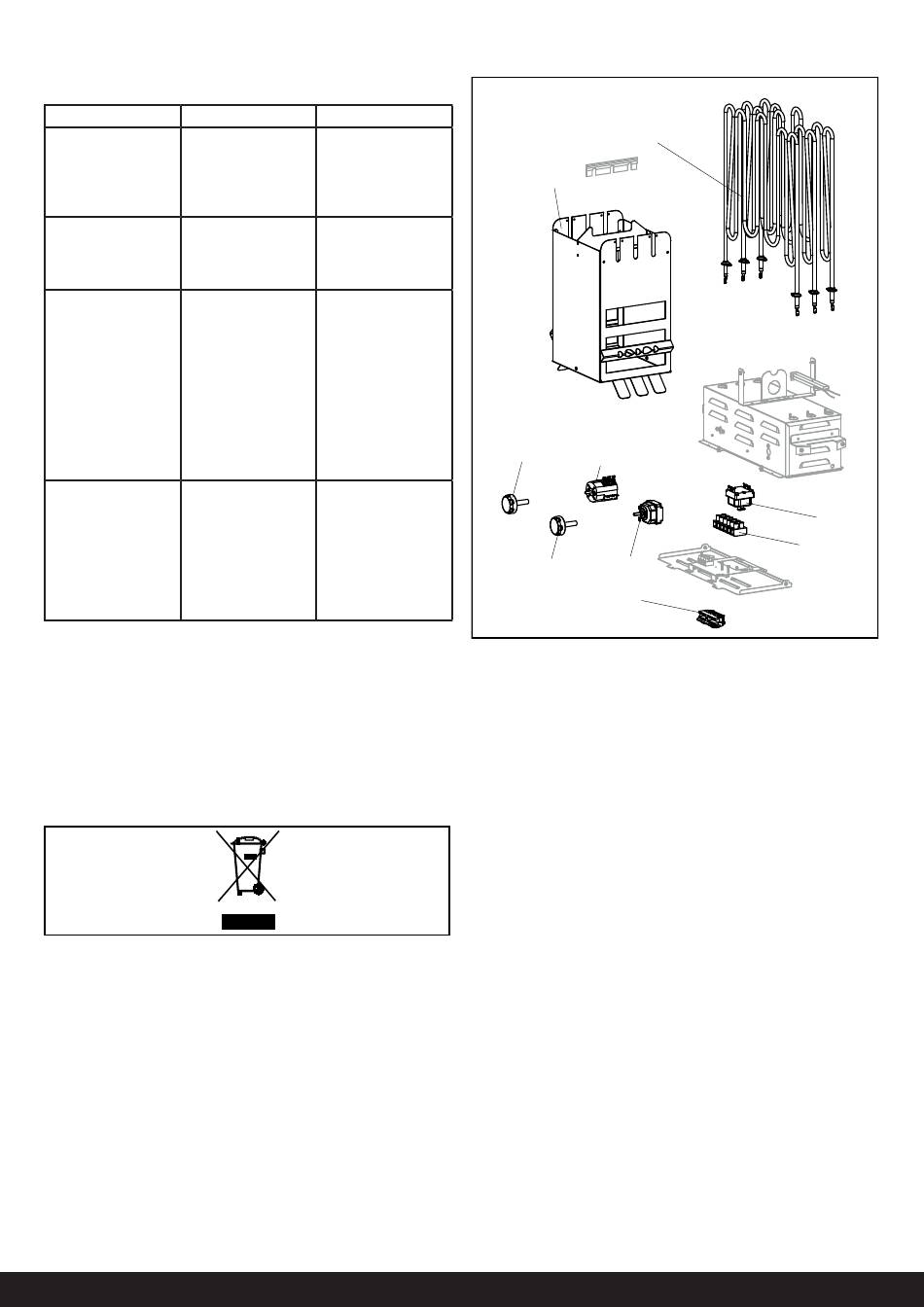

Figure 7: Spare parts
1.
2.
3.
4.
5.
6.
7.
8.
9.
Keep this user guide!
In the event of any problems, please contact the retailer
where you purchased the equipment.
© This publication may not be reproduced, in part or in whole,
without the written permission of Tylö. Tylö reserves the right to
make changes in materials, construction and design.
1
2
5
6
8
7
9
9600 0197 / 8 kW, 9600 0199 / 6 kW Tubular element
9600 0735 Stone compartment
9600 0723 Terminal block 6-pole
9600 0006 Temperature cut-out
9600 0128 Timer dial
9600 0012 Timer 9+3 6-pole
9600 0133 Thermostat dial
9600 0259 Thermostat
9600 0554 Strain relief connector
4
3
