AVL DiTEST VCI 1000
1 General
1.1 General Description
Using AVL DiTEST VCI 1000 (VCI: Vehicle Communication Interface) and the AVL DiTEST
diagnostic software, control unit diagnostics can be performed on automobiles (buses, trucks, vans,
passenger cars, and motorcycles). Communication with the PC is wireless using Bluetooth.
Alternatively, a USB cable can be used as well.
Please always observe the attached safety instructions!
(1) USB socket
type: Mini B
(below cover)
(2) USB socket
cover

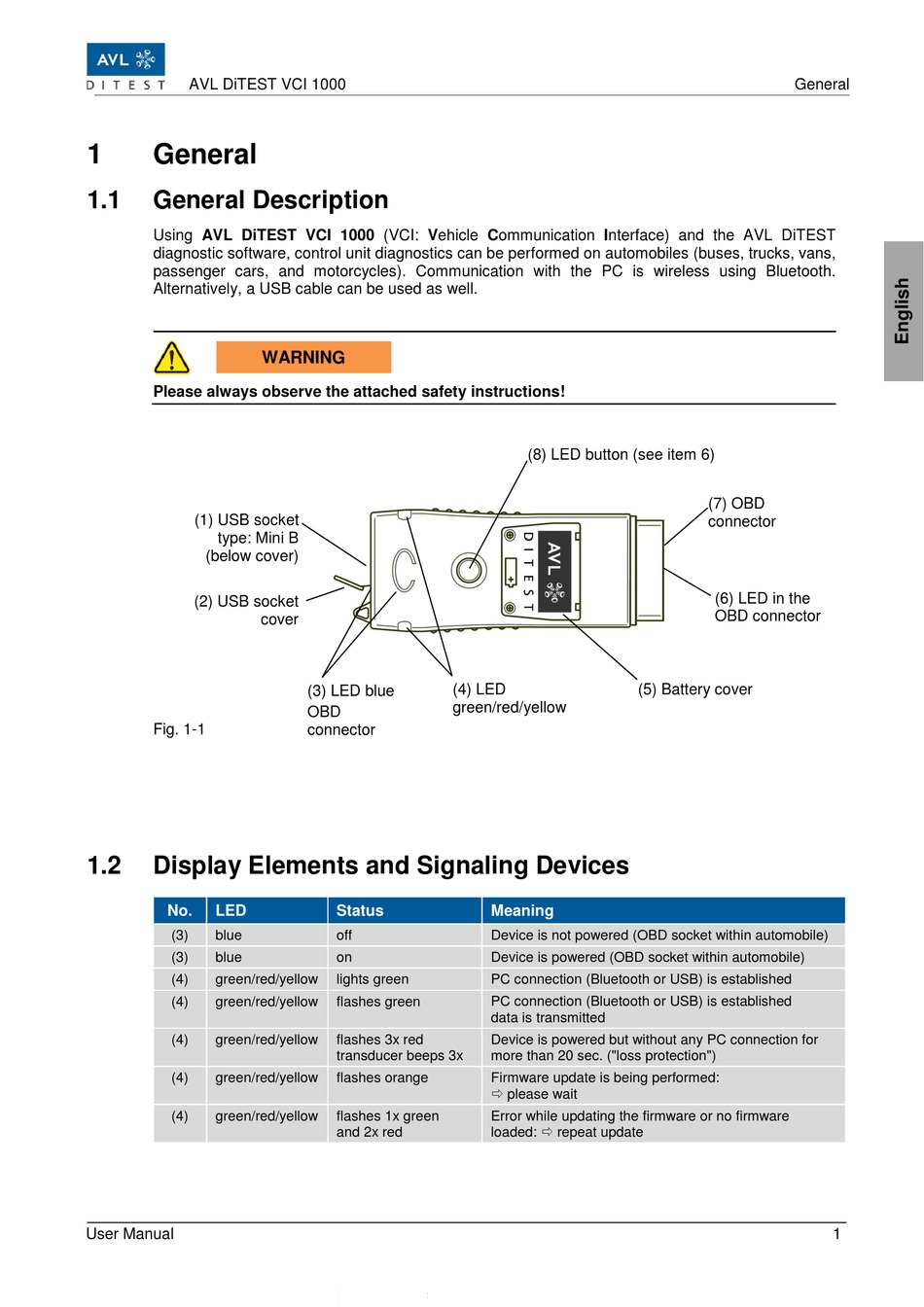

Fig. 1-1
1.2 Display Elements and Signaling Devices
No. LED
(3) blue
(3) blue
(4) green/red/yellow
(4) green/red/yellow
(4) green/red/yellow
(4) green/red/yellow
(4) green/red/yellow
User Manual
WARNING
(3) LED blue
OBD
connector
Status
off
on
lights green
flashes green
flashes 3x red
transducer beeps 3x
flashes orange
flashes 1x green
and 2x red
(8) LED button (see item 6)
(4) LED
green/red/yellow
Meaning
Device is not powered (OBD socket within automobile)
Device is powered (OBD socket within automobile)
PC connection (Bluetooth or USB) is established
PC connection (Bluetooth or USB) is established
data is transmitted
Device is powered but without any PC connection for
more than 20 sec. ("loss protection")
Firmware update is being performed:
 please wait
Error while updating the firmware or no firmware
loaded:  repeat update
General
(7) OBD
connector
(6) LED in the
OBD connector
(5) Battery cover
