DR 5600 DESOLDERING IRON
DD 5700 station allows you to connect
the DR 5600 desoldering iron by
adding the MS
desoldering pump Ref. 9004000 or
the MS 9005 air pressure desoldering
system Ref. 9005000.
For the desoldering iron to work
properly, the following components
are required: the control unit, the
desoldering iron, a desoldering pump
module and the DR 8500 stand.
These articles are not included with
the station.

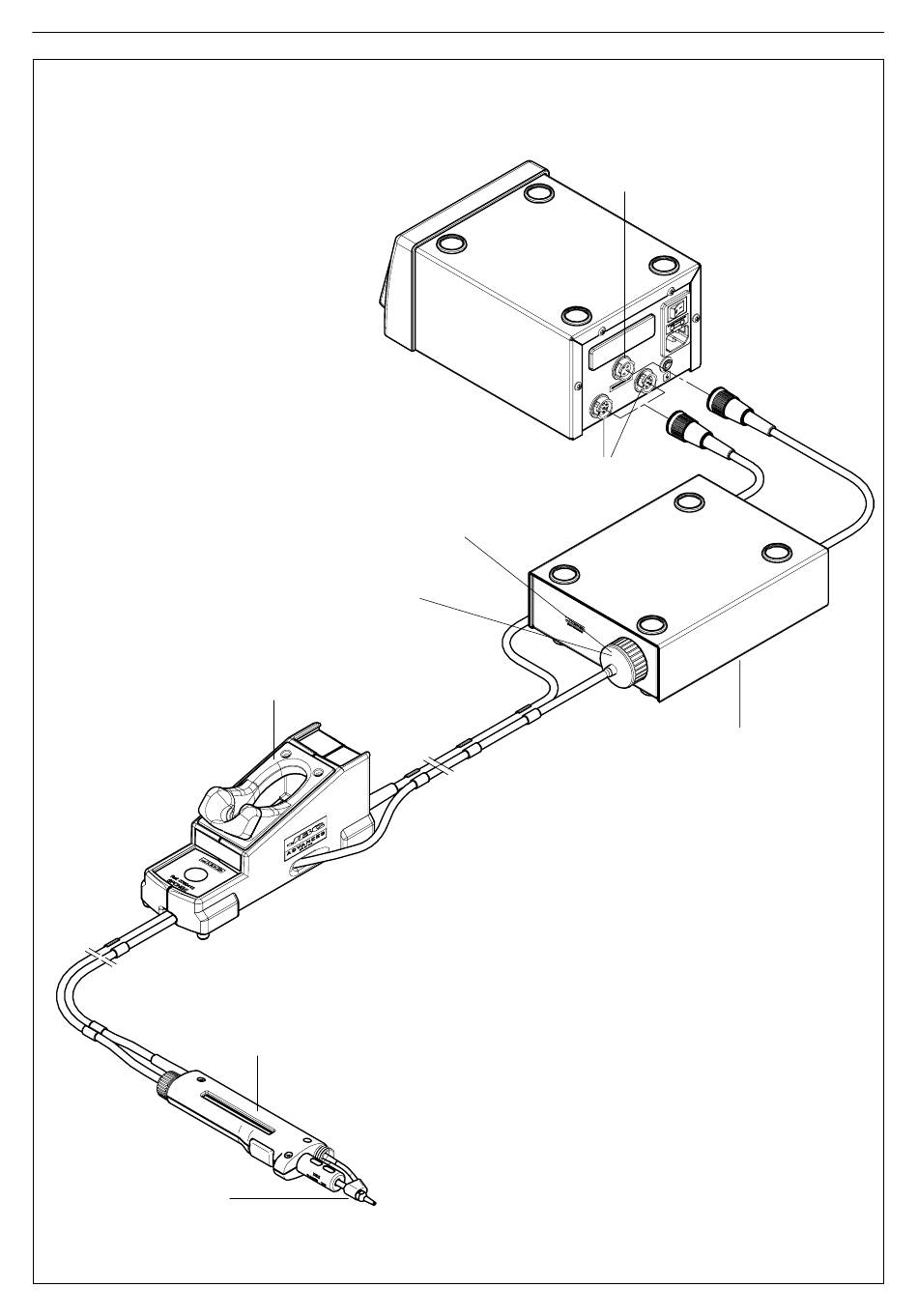

desoldering iron stand
Ref.0788500
DR 5600
desoldering iron
Ref.5600000
Heating element
Ref.5600010
9004 electric
Spare filters
Ref.0966689
Desoldering air filter
DR 8500
Desoldering pump
connector
Tool connectors
Electric desoldering pump
MS 9004 Ref.9004000
Air pressure desoldering system
MS 9005 Ref.9005000
The desoldering iron is connected to the
station following the below procedure:
Connect the cable connection from the
desoldering iron to the plug in the DR 8500
desoldering iron stand, connect the
vacuum hose to the desoldering air filter of
the desoldering pump module.
The cable connection of the desoldering
iron stand can be connected to any of the
two connectors at the back of the station
and the cable connection of the
desoldering pump is connected to the plug
"Desoldering pump".
