6.1 Mode of operation

The linear unit is used for linear processing and positioning. The slides are driven into their
positions by a tapped spindle or toothed belt drive. This motion can be carried out manually with
a handwheel or by an electric drive. Depending on the version, the slides are guided without any
play on rail sections or steel guide shafts with rollers.

6.2 Versions/Guidance concept

This linear unit is available in the versions and guidance versions given here.
•
After receiving this linear unit, check the device for possible damage and missing components.
•
Immediately notify RK Rose+Krieger GmbH of any faults found.
The linear unit is delivered ready for operation, but without a control system and without
accessories.

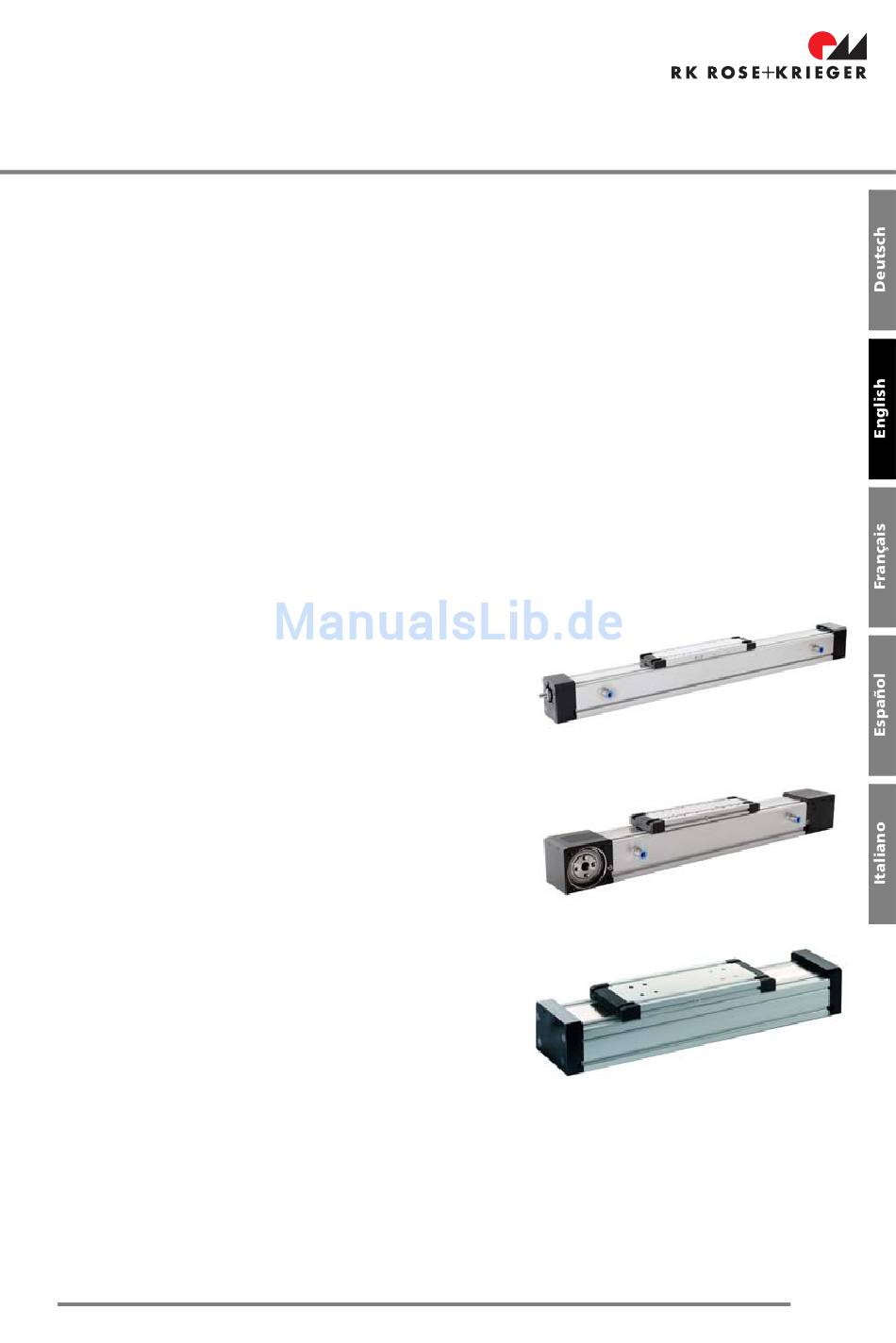

6.2.1 Versions

RK DuoLine S Clean
Version with spindle drive
RK DuoLine Z Clean
Version with toothed belt
RK DuoLine R Clean
Version without drive
