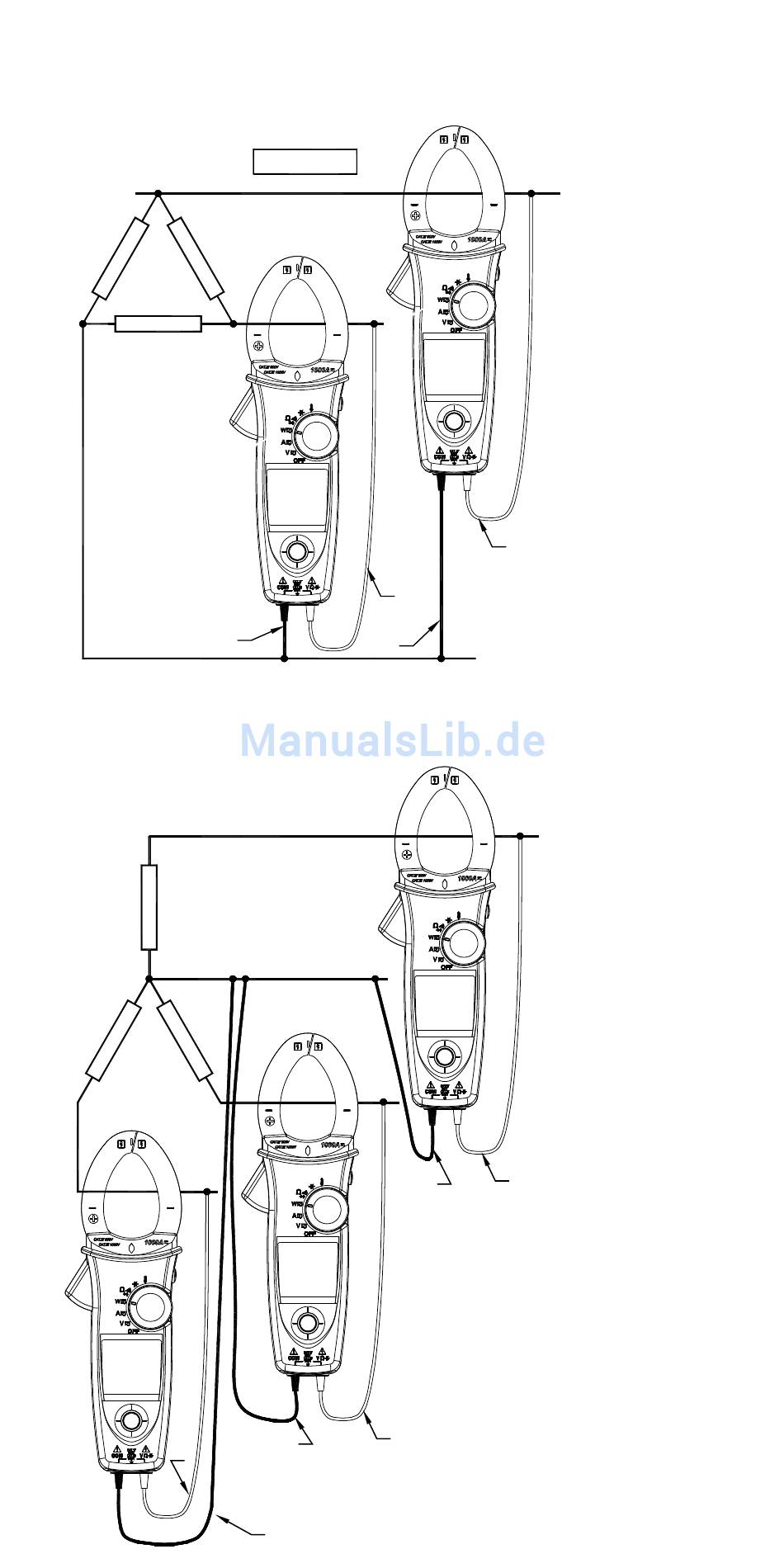

2.Three Phase Power Measurement
A. 3 phase 3 wire balanced / unbalanced
Step 1. Set the rotary switch to the "W" position
Step 2. Using the Navigator key to choose the "W" mode.
W=W1+W2
1
3
2
Wye or star
Red
Red
Black
Black
B. 3 phase 4 wire balanced / unbalanced
Step1. Set the rotary switch to the "W" position
Step2. Using the Navigator key to choose the "W" mode.
W=W1+W2+W3
1
N
2
3
Red
Black
Red
Black
Red
Black
