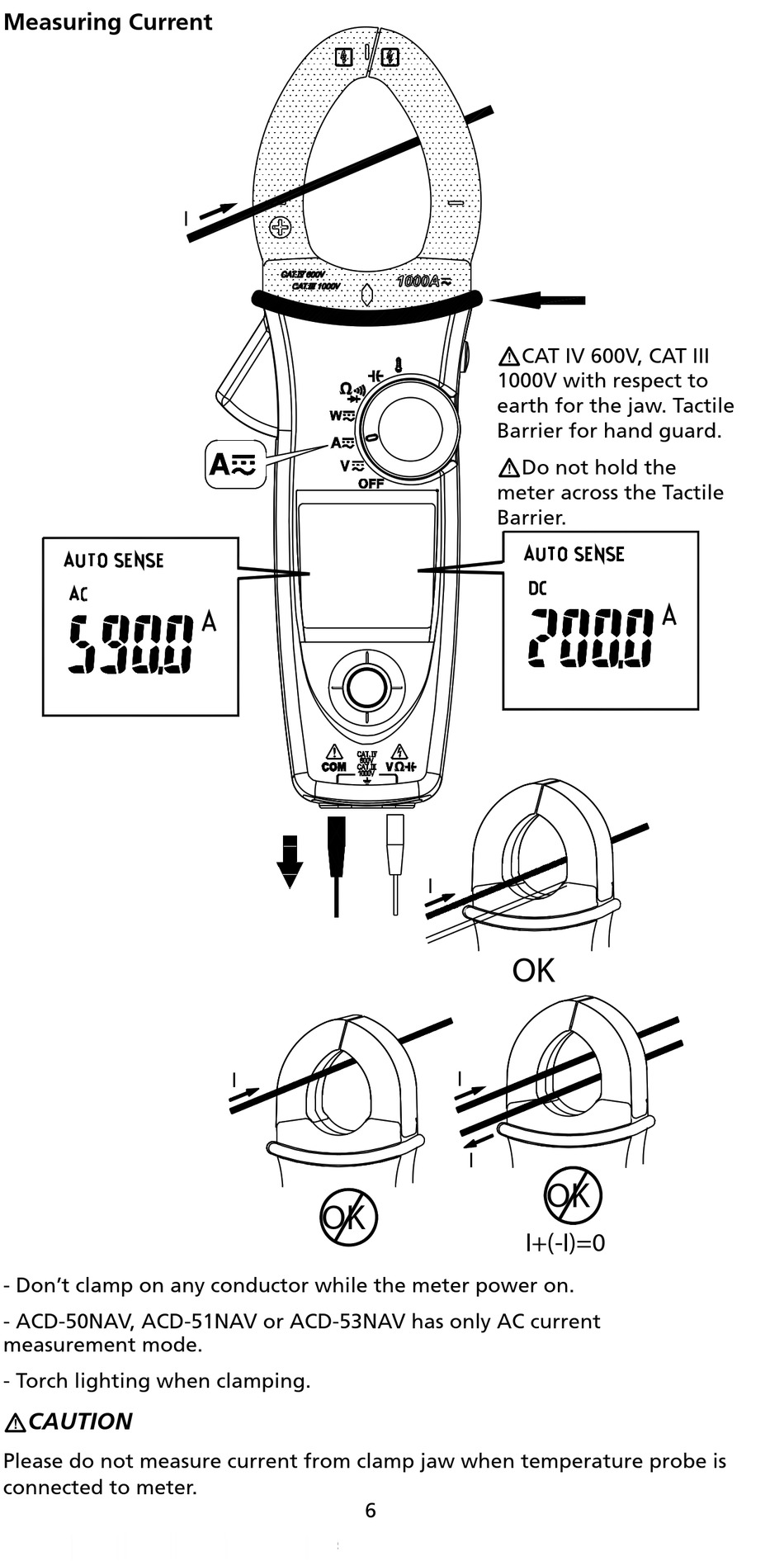

Measuring Current

- Don't clamp on any conductor while the meter power on.
- ACD-50NAV, ACD-51NAV or ACD-53NAV has only AC current
measurement mode.
- Torch lighting when clamping.
CAUTION
�
Please do not measure current from clamp jaw when temperature probe is
connected to meter.
I
I
OK
�CAT IV 600V, CAT III
1000V with respect to
earth for the jaw. Tactile
Barrier for hand guard.
�Do not hold the
meter across the Tactile
Barrier.
I
I
I
6
OK
OK
I+(-I)=0
