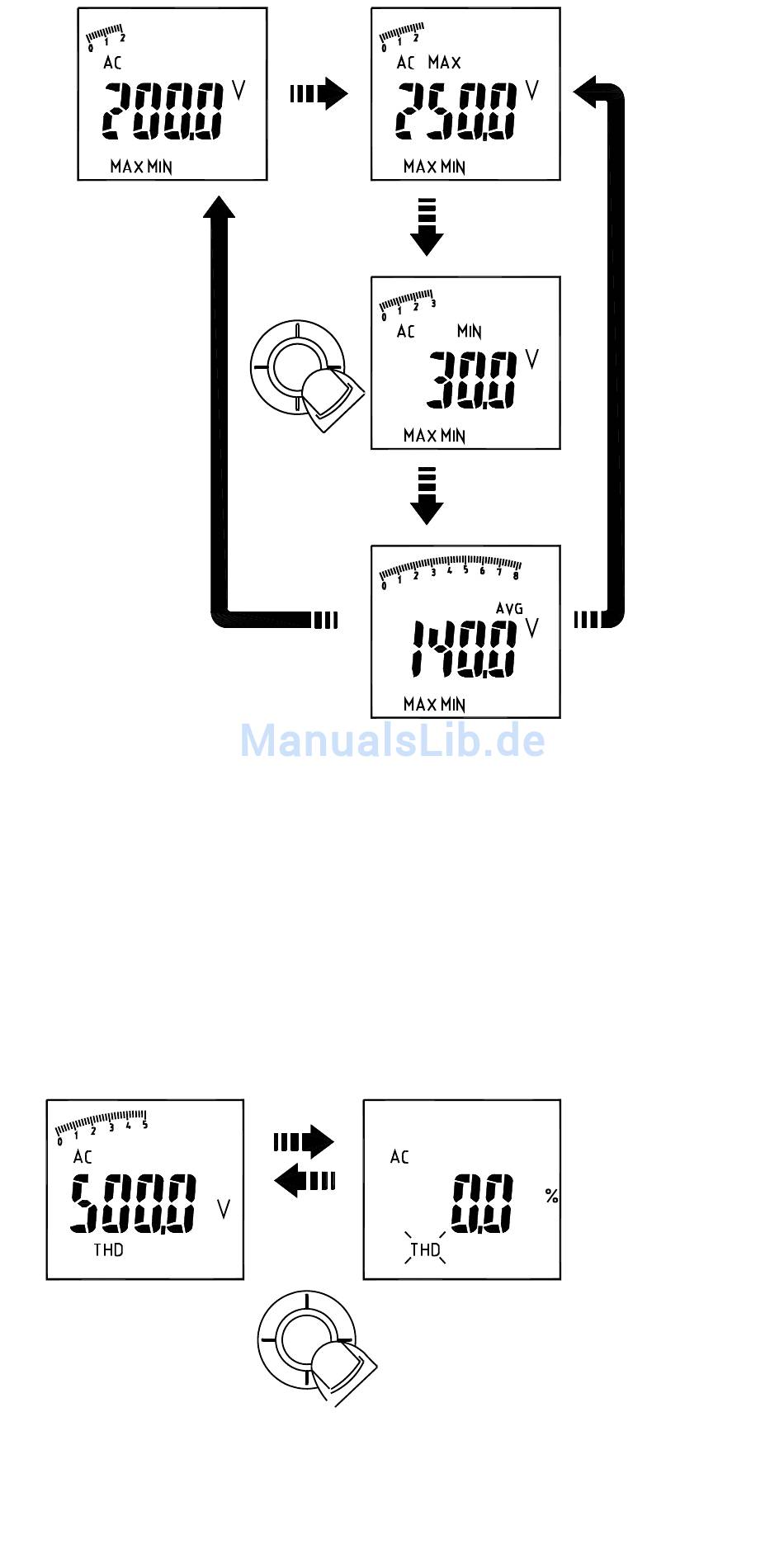

MAXMIN >2sec
Note :
• Press HOLD key in MAX MIN mode to make the meter stop updating
the maximum and minimum value. When the HOLD mode is
activated in MAX MIN mode, the HOLD mode must be deactivated
before the MAX MIN mode.
THD Measurement (AC mode only)
Select the "THD" indicator then press the navigator key to enter the THD
mode. THD-F=RMS of Harmonics ÷ RMS of fundamental ×100%. (harmonics
up to the 25th)
"MAXMIN"
ENTER
"THD"
"ENTER"
10
"MAXMIN"
"MAXMIN"
"MAXMIN"
