ENGLISH
3. Hardware Installation CHD2SU
3.1 Assembling the CHD2SU (When no hard disk is installed yet)
If you bought the CHD2SU with a hard disk pre-installed, you can skip this step and
continue to step 3.2
a. Remove the 2 back screws at both sides of the CHD2SU.
b. Gently slide the hard disk tray out of the back of the housing.

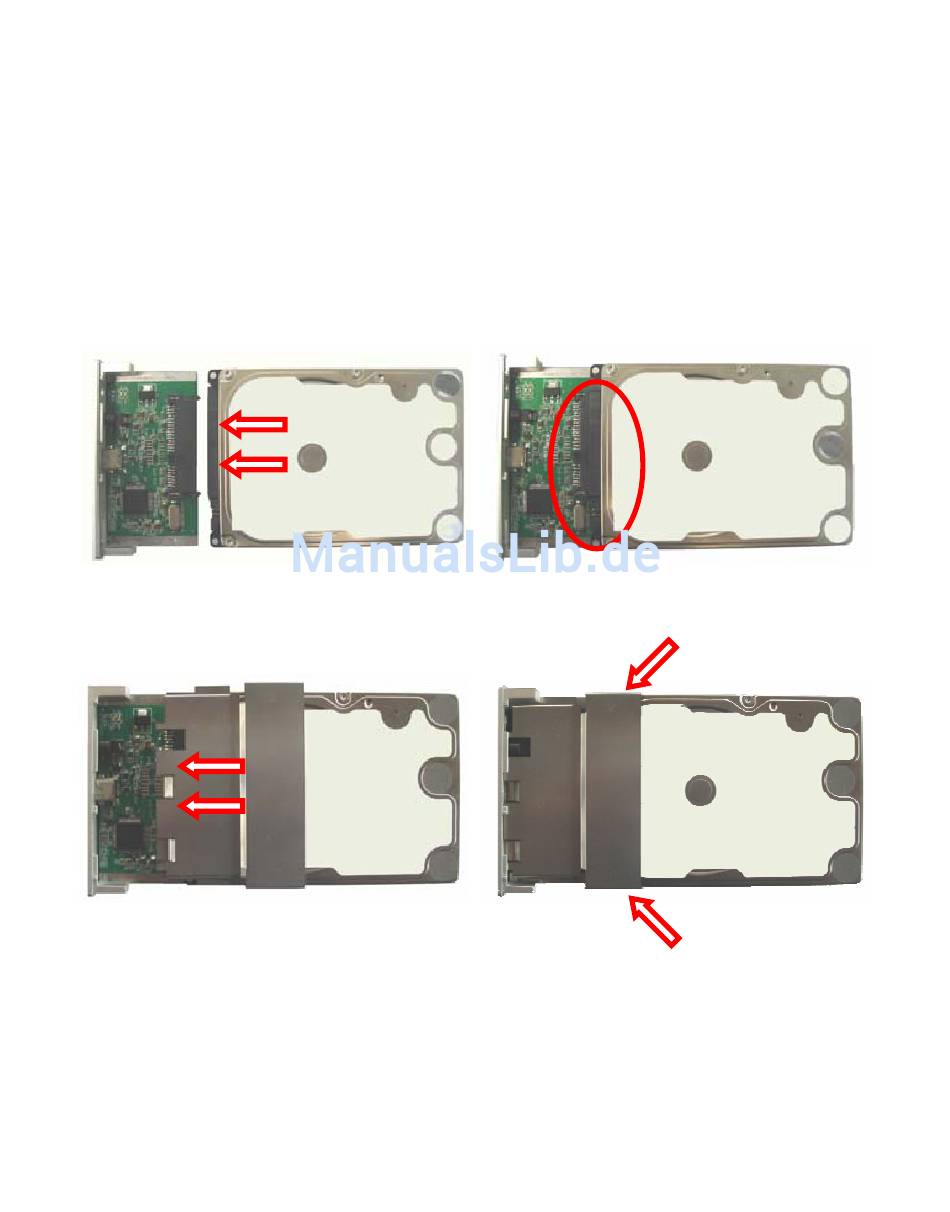

c. Connect the 2,5" hard disk gently to the connector. Make sure the connector is
connected correctly to the hard disk.
d. Place the metal shielding over the electronic circuit of the hard disk tray and
fasten the shielding with the 2 delivered screws.
e. Slide back the tray in the housing.
f. Fasten the 2 screws to secure the tray in the housing.
