NITROGEN PRESSURE REGULATOR LEAK TESTING KIT
• Pressure regulation of Nitrogen (N2)
• Pressure testing refrigeration systems
• Leak-down testing of refrigeration systems
• Purging of refrigeration systems
• Only for use on nitrogen pressure cylinders
1
12
13
14
53001
CGA580 (US)
No. No. Description Description

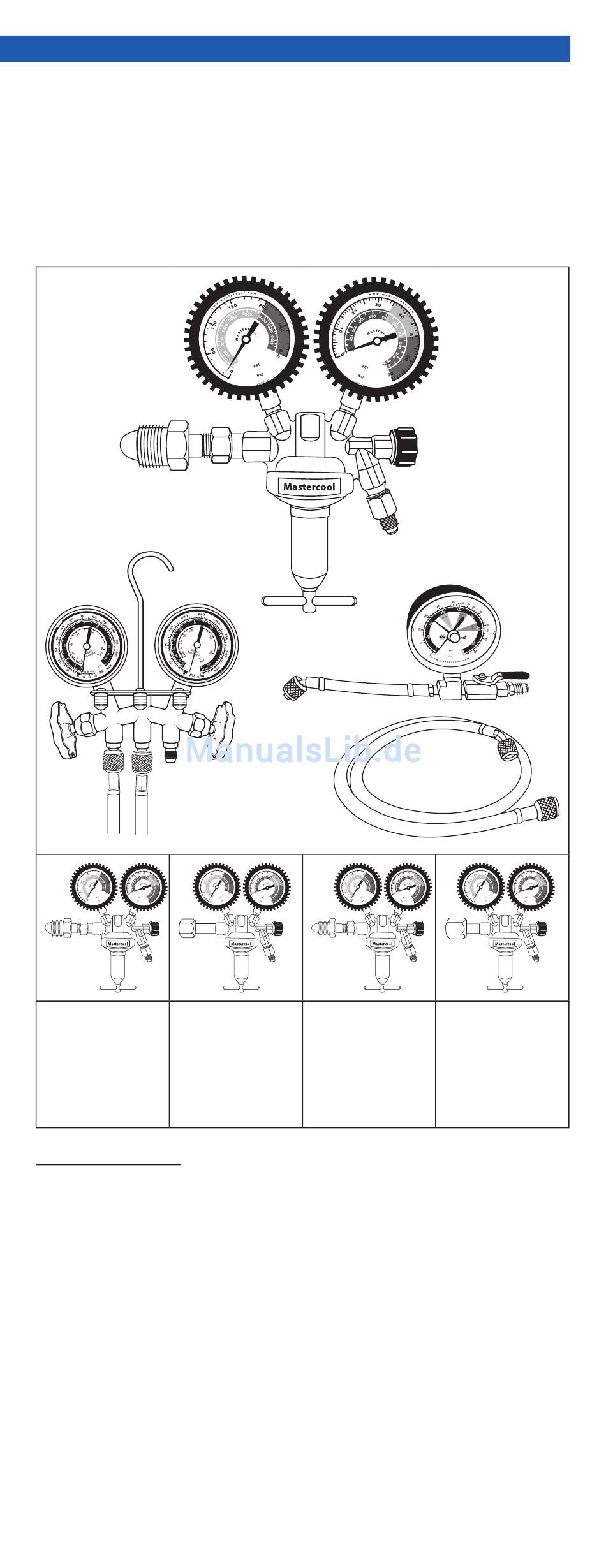

1. Cylinder Connection
2. High Side Gauge of Nitrogen Regulator (input)
3. Low Side Gauge of Nitrogen Regulator (output)
4. Output Control Valve
5. Charging Hose Connection on Regulator
6. Pressure Regulator T Handle
7. Leak Testing Gauge Assembly
8. Connection to Refrigeration System
9. Leak Testing Ball Valve Lever
10. Charging Hose Connection on Leak Testing Assembly
11. Charging Hose
12. Charging and Testing Manifold (not included in kit)
13. Low Side Valve on Manifold
14. Low Side Hose (blue)
15. Charging Hose (yellow)
2
2
15
53002
DIN477#6 &
DIN477#10
(includes adapter to
convert DIN477#6 to
DIN477#10
(France/Germany)
www.mastercool.com
5
6
8
53003
BS3 (England)
English
3
4
7
9
11
53004
AS2473.2 (Australia)
10
