Installation in furniture

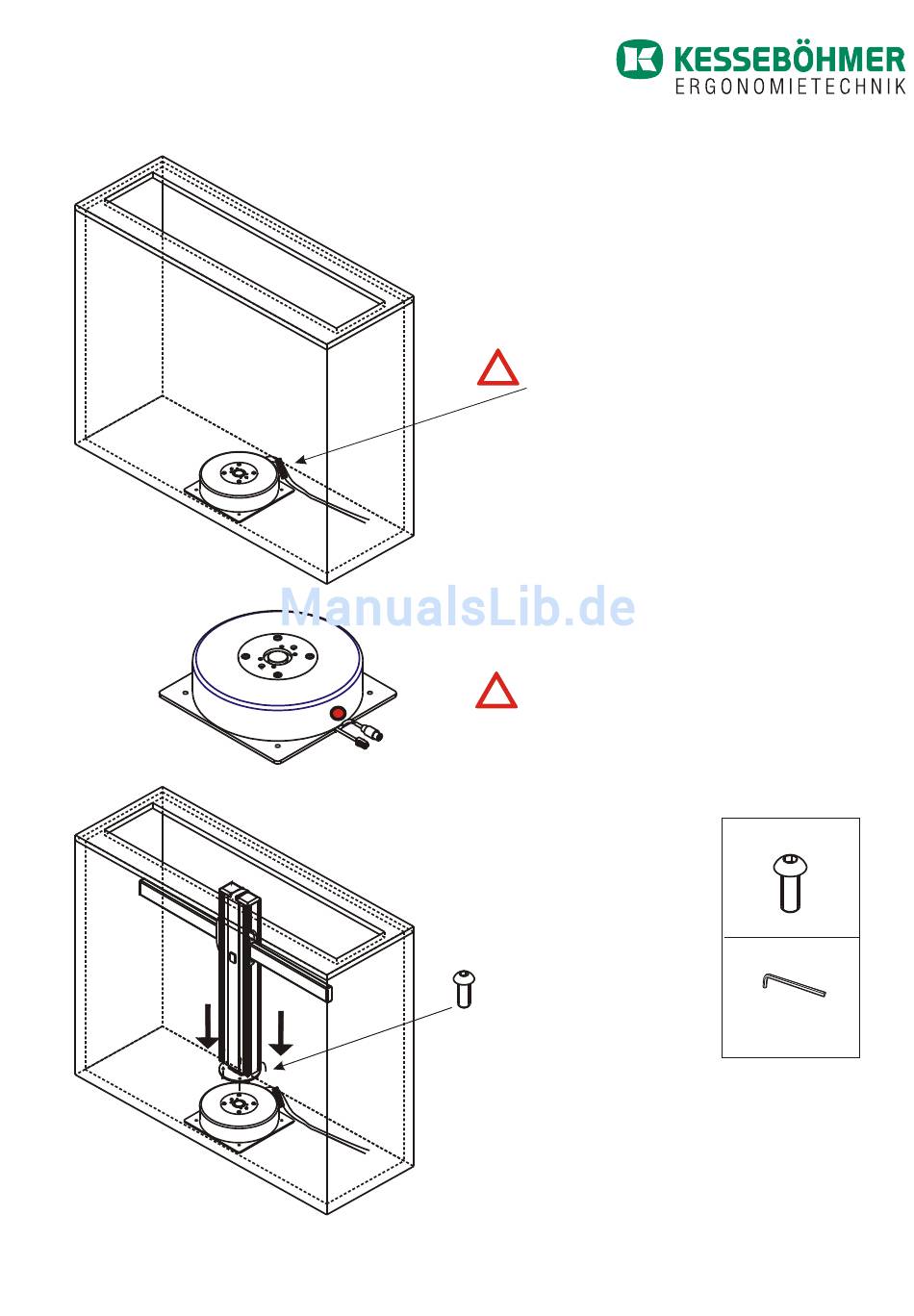

Affix rotary to furniture with 4 screws. Pay attention to
material thickness.
Attention: The cables of the rotary drive must be affixed
on the floor as closely to the drive as possible (cable
!
clamp), otherwise the cable will be abraded by the
turning movement.
The dot and the cable must remain in the same position
!
during the mounting process.
M6x16
4 x
M6x16
SW 4
max. 15 Nm
889012121 U76 Page 22 of 29
