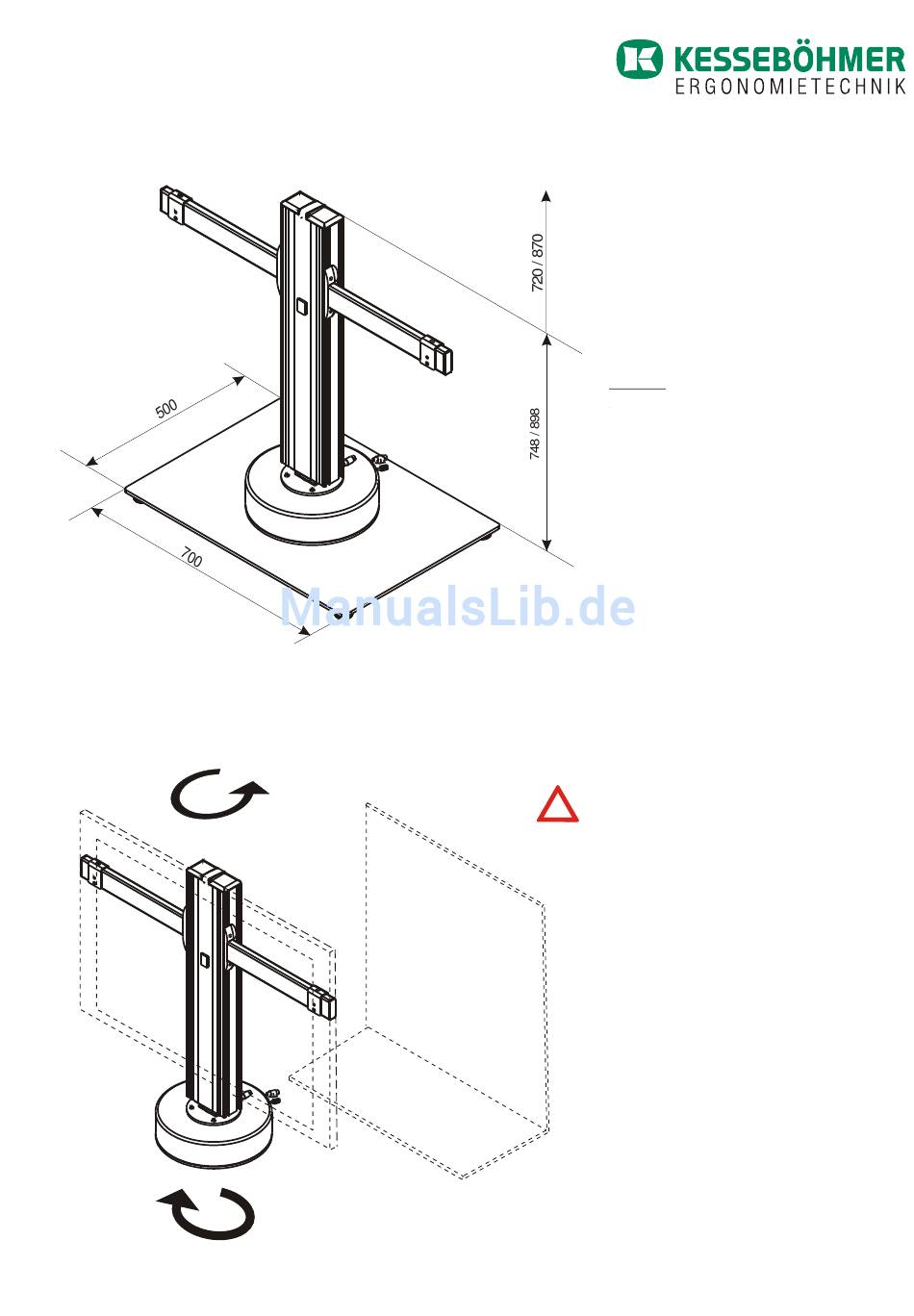

Free-standing SME with ground plate
130°
180°
889012121 U76 Page 18 of 29
Should the ground plate 700x500 mm, which is
available as an accessory, not be used, a plate of
the same size having a minimum weight of 22 kg
must be mounted.
Attention:
Set screws must be adjusted on a plane surface.
Item no for the ground plate: 889010903
During the pivoting action persons, animals
or objects must not be in the pivot area.
!
-A friction clutch stops the pivoting movement-
Minimum distance must be observed.
A minimum all-round distance of 25 mm
between built-in screen and furniture or other
structural objects must be maintained.
