Kessebohmer ScreenMotion Revolution 720 Montageanleitung Seite 20

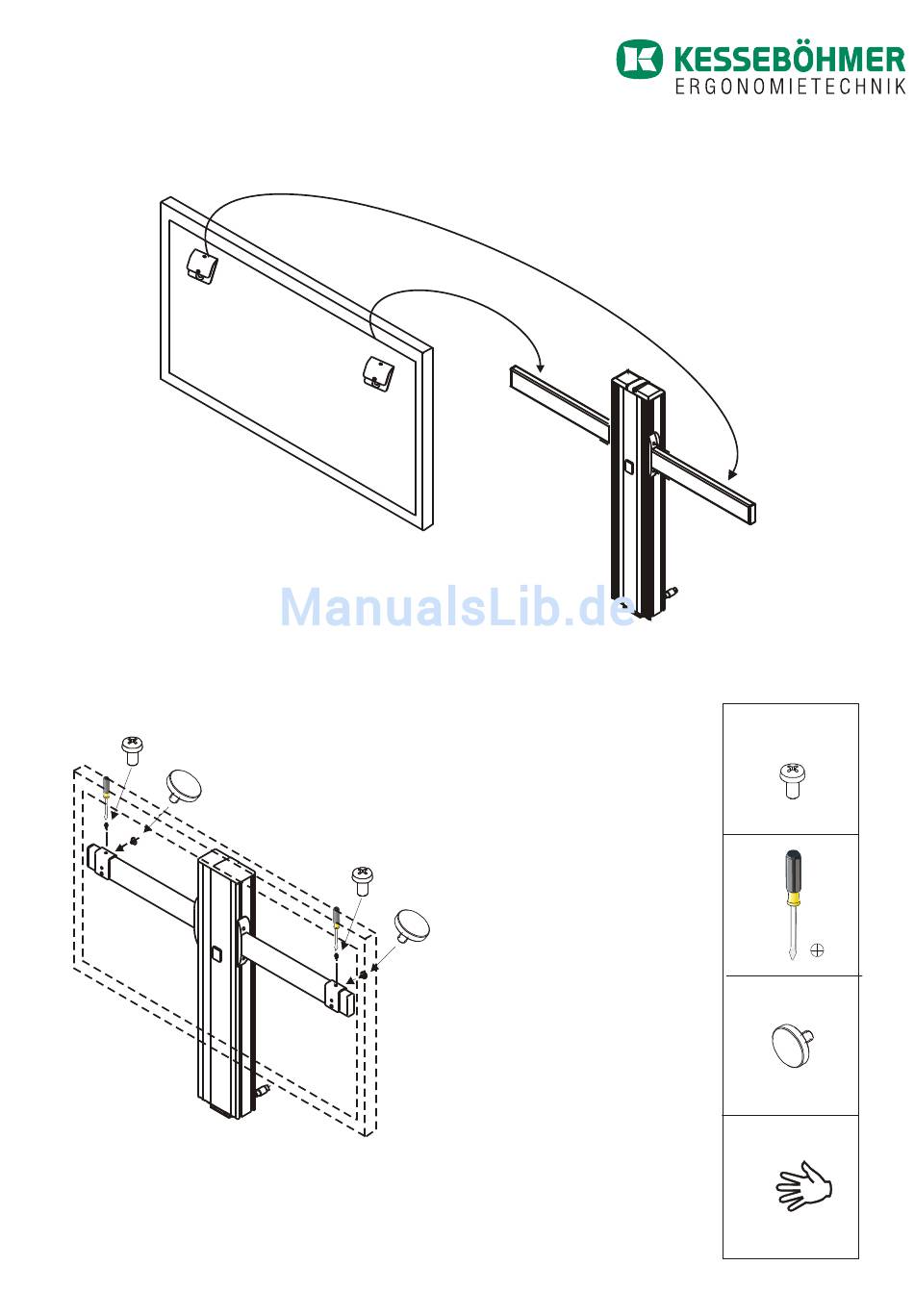

Affix screen support
M5x10
adjust
M6x12
fix
889012121 U76 Page 20 of 29
Use M5x10 screws and screw driver to
adjust screen support mounted on the
TV set on supporting arms.
M5x10
adjust
M6x12
fix
Tightly screw down M6x12 at the
supporting arms.
Hang screen support mounted on the TV set onto
the supporting arm.
M5x10
2x
M6x12
2x
