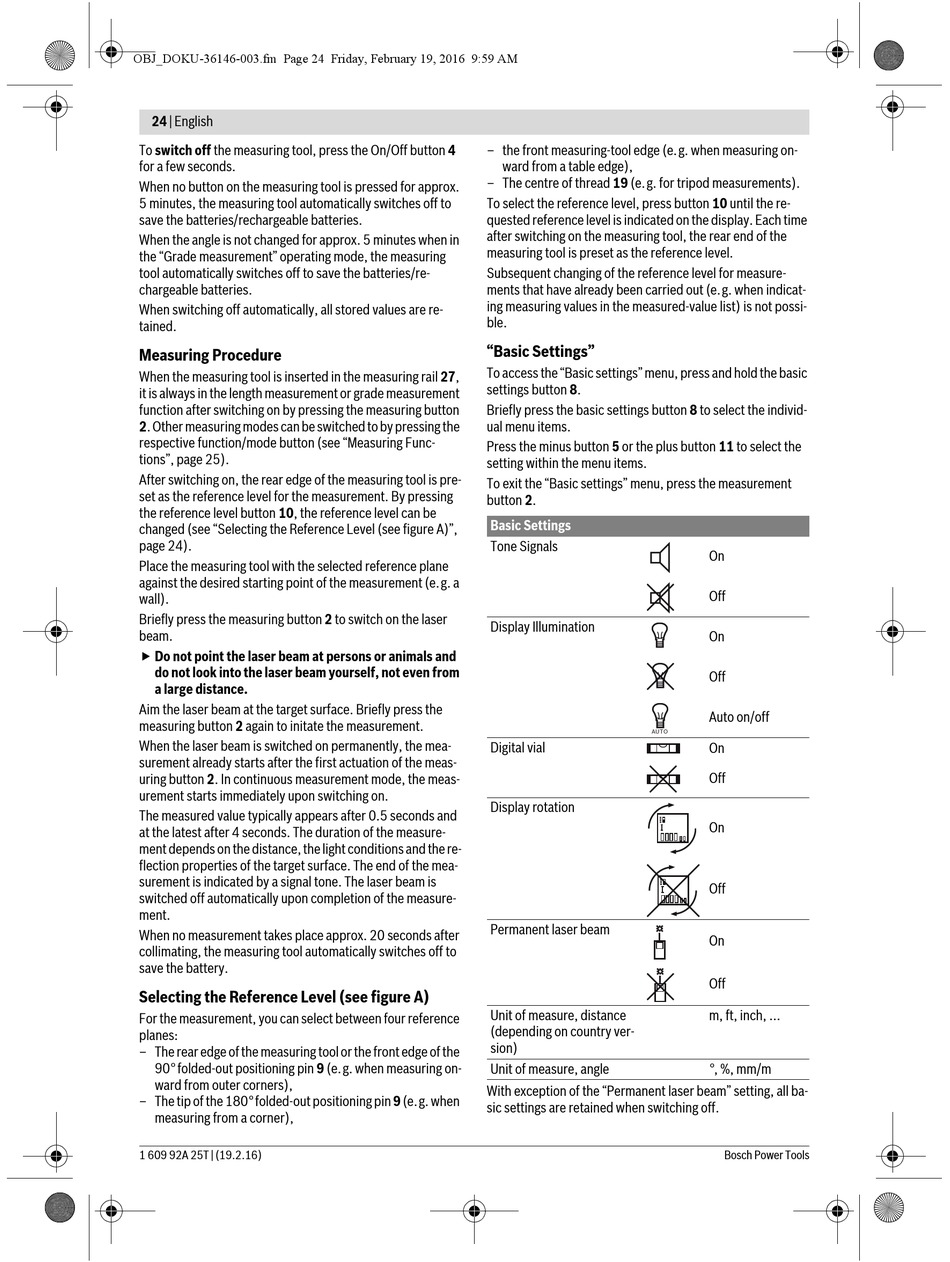

OBJ_DOKU-36146-003.fm Page 24 Friday, February 19, 2016 9:59 AM
24 | English
To switch off the measuring tool, press the On/Off button 4
for a few seconds.
When no button on the measuring tool is pressed for approx.
5 minutes, the measuring tool automatically switches off to
save the batteries/rechargeable batteries.
When the angle is not changed for approx. 5 minutes when in
the "Grade measurement" operating mode, the measuring
tool automatically switches off to save the batteries/re-
chargeable batteries.
When switching off automatically, all stored values are re-
tained.

Measuring Procedure

When the measuring tool is inserted in the measuring rail 27,
it is always in the length measurement or grade measurement
function after switching on by pressing the measuring button
2. Other measuring modes can be switched to by pressing the
respective function/mode button (see "Measuring Func-
tions", page 25).
After switching on, the rear edge of the measuring tool is pre-
set as the reference level for the measurement. By pressing
the reference level button 10, the reference level can be
changed (see "Selecting the Reference Level (see figure A)",
page 24).
Place the measuring tool with the selected reference plane
against the desired starting point of the measurement (e.g. a
wall).
Briefly press the measuring button 2 to switch on the laser
beam.
 Do not point the laser beam at persons or animals and
do not look into the laser beam yourself, not even from
a large distance.
Aim the laser beam at the target surface. Briefly press the
measuring button 2 again to initate the measurement.
When the laser beam is switched on permanently, the mea-
surement already starts after the first actuation of the meas-
uring button 2. In continuous measurement mode, the meas-
urement starts immediately upon switching on.
The measured value typically appears after 0.5 seconds and
at the latest after 4 seconds. The duration of the measure-
ment depends on the distance, the light conditions and the re-
flection properties of the target surface. The end of the mea-
surement is indicated by a signal tone. The laser beam is
switched off automatically upon completion of the measure-
ment.
When no measurement takes place approx. 20 seconds after
collimating, the measuring tool automatically switches off to
save the battery.
Selecting the Reference Level (see figure A)
For the measurement, you can select between four reference
planes:
– The rear edge of the measuring tool or the front edge of the
90° folded-out positioning pin 9 (e.g. when measuring on-
ward from outer corners),
– The tip of the 180° folded-out positioning pin 9 (e.g. when
measuring from a corner),
1 609 92A 25T | (19.2.16)
– the front measuring-tool edge (e.g. when measuring on-
ward from a table edge),
– The centre of thread 19 (e.g. for tripod measurements).
To select the reference level, press button 10 until the re-
quested reference level is indicated on the display. Each time
after switching on the measuring tool, the rear end of the
measuring tool is preset as the reference level.
Subsequent changing of the reference level for measure-
ments that have already been carried out (e.g. when indicat-
ing measuring values in the measured-value list) is not possi-
ble.

"Basic Settings"

To access the "Basic settings" menu, press and hold the basic
settings button 8.
Briefly press the basic settings button 8 to select the individ-
ual menu items.
Press the minus button 5 or the plus button 11 to select the
setting within the menu items.
To exit the "Basic settings" menu, press the measurement
button 2.
Basic Settings
Tone Signals
Display Illumination
Digital vial
Display rotation
Permanent laser beam
Unit of measure, distance
(depending on country ver-
sion)
Unit of measure, angle
With exception of the "Permanent laser beam" setting, all ba-
sic settings are retained when switching off.
On
Off
On
Off
Auto on/off
On
Off
On
Off
On
Off
m, ft, inch, ...
°, %, mm/m
Bosch Power Tools
