Product Overview - Conceptronic Multi Front Panel CMULTIFPE Schnellinstallationsanleitung

ENGLISH
1 2
10 11
Nr Description
1 Headphone connector
2 Power LED
3 eSATA connector
4 SM Family cardslot
5 Composite Out connector
6 SD/MMC Family cardslot
7 eSATA connector
8 USB port
9 FireWire port
10 Microphone connector
11 Activity LED
12 CF/MD Family cardslot
13 MS-Family cardslot

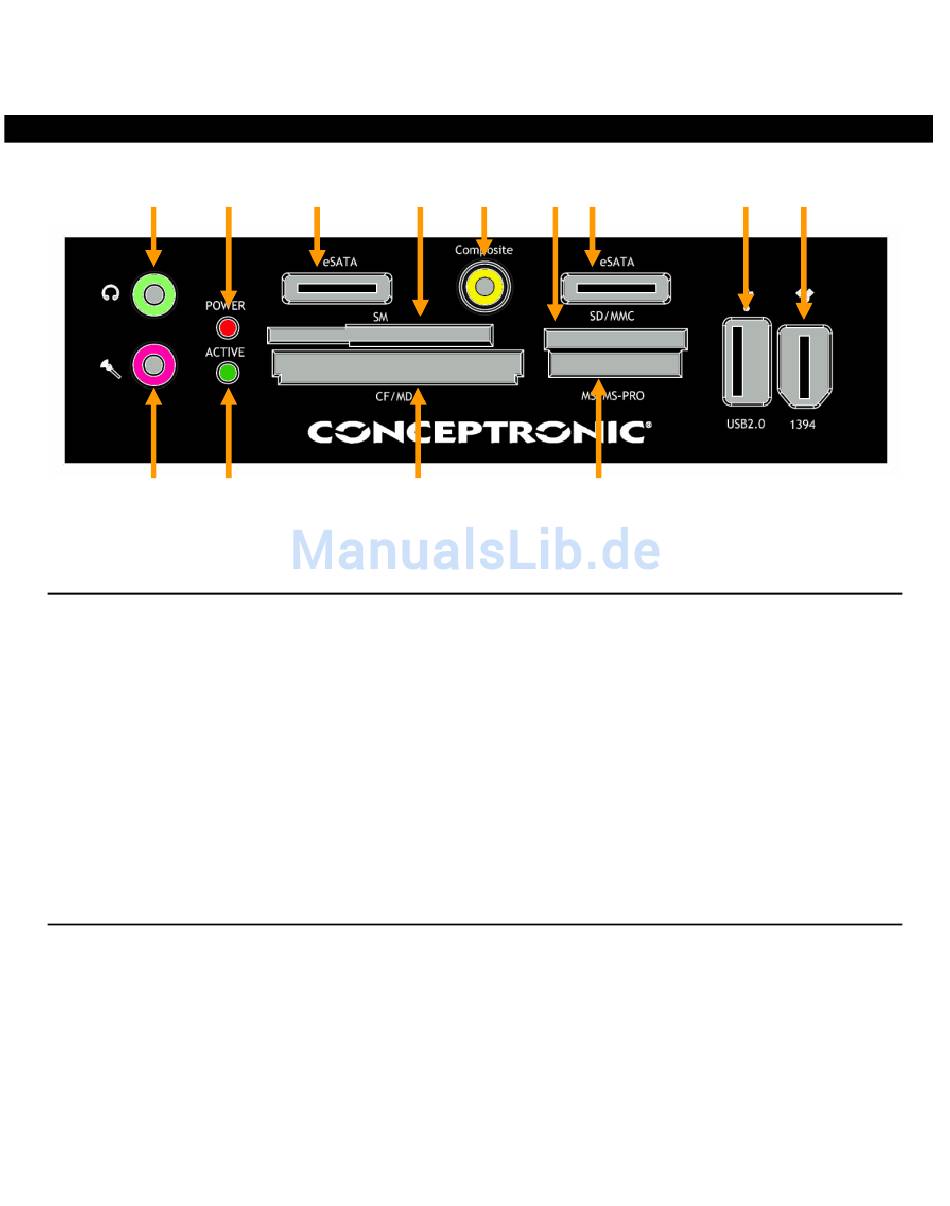

2. Product overview

3 4 5
12
(3,5mm jack)
(composite video, coaxial SPDIF, etc.)
(3,5mm jack)
9
6 7
13
8 9
