4.3 Internal Cable Connections

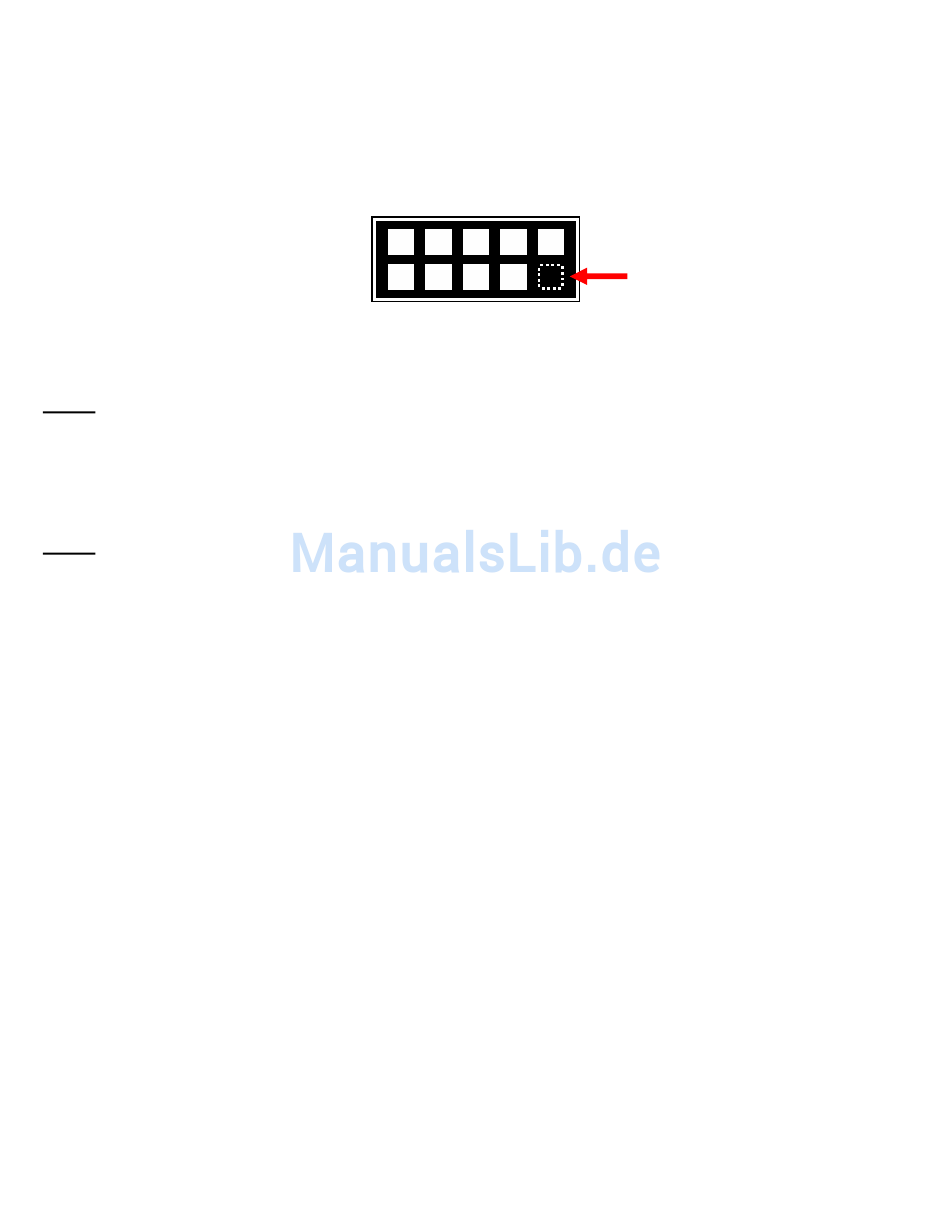

A. Find a free USB header on your mainboard. The USB headers on mainboards look
like the picture below:
B. Connect the internal USB cable to the USB header on your mainboard.
Note: Do not force the internal USB cable on the USB header!
The cable can only be connected in 1 way!
C. Connect the internal SATA cables to free SATA headers on your mainboard.
Note: Do not force the SATA cable on the SATA header.
The cable can only be connected in 1 way!
4.4 Finish the hardware installation
When all cables are connected, you can finish the hardware installation.
A. Close your computer case on both sides.
B. Reconnect the power cable to your computer.
C. Turn on your computer.
Windows will automatically recognize and install the Cardreader slots on the front of the
CMULTIFPE.
All other connections are pass-through connections. The computer will detect the devices
when connected to the connections of the CMULTIFPE.
Your CMULTIFPE is now ready to use!
13
Pin not present
