Conceptronic Multi Front Panel CMULTIFPE Schnellinstallationsanleitung Seite 12

ENGLISH
4.2 External Cable Connections

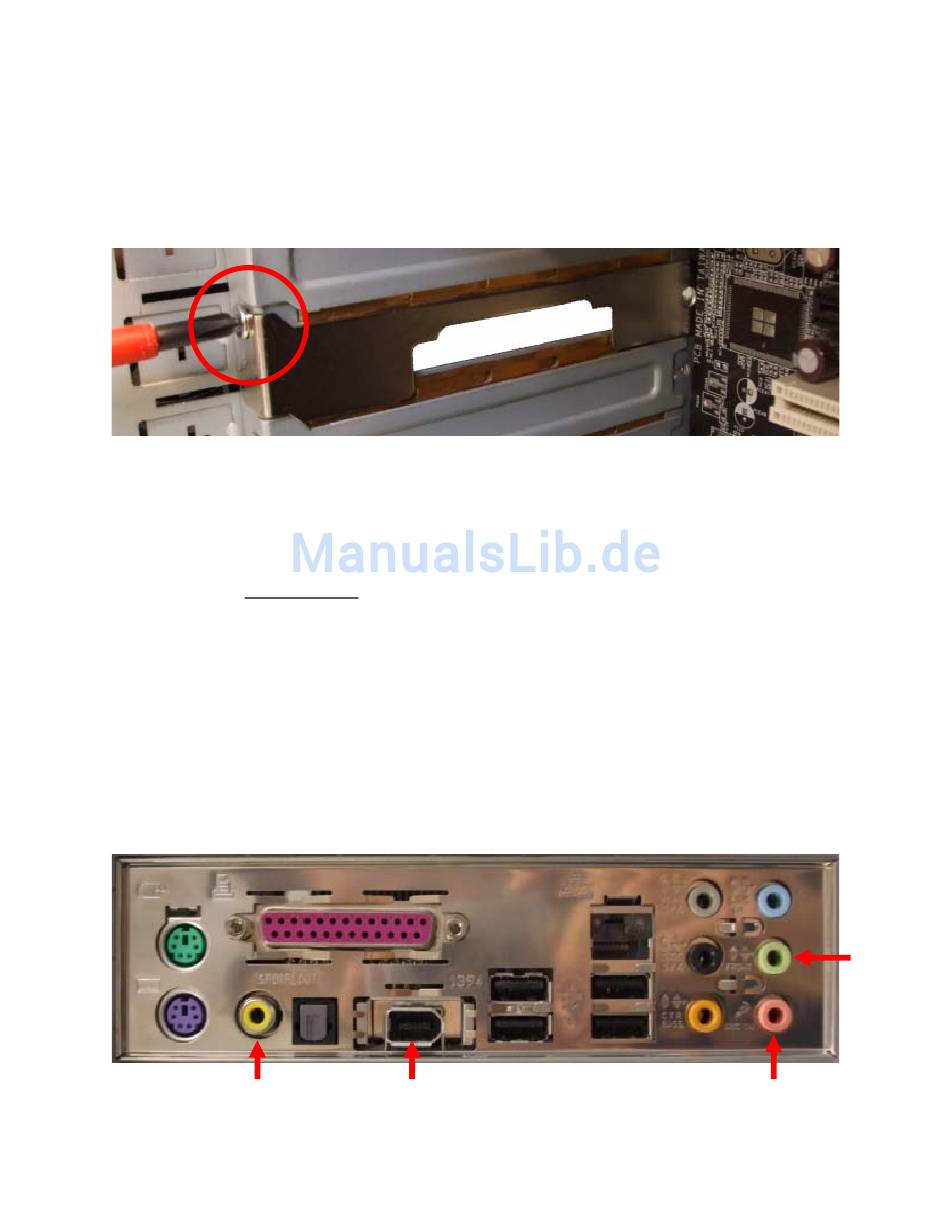

A. Remove a back plate from an unused slot at the back of your computer.
B. Insert the delivered back plate in the open slot at the back of your computer.
C. Guide the FireWire cable, Composite cable, Headphone cable and Microphone
cable through the bracket to the outside of your computer.
D. Connect the Composite cable to a free Composite port on the back of your
computer. (For example: the Composite TV-Out of your video card, the Composite
Input of your capture card or a SPDIF coaxial output).
E. Connect the FireWire cable to a free FireWire port on the back of your computer.
F. Connect the Microphone cable to the Microphone jack on the back of your
computer.
G. Connect the Headphone cable to the Headphone jack on the back of your
computer.
Example of a computer back panel:
D E
12
G
F
