DESCRIPTION OF THE DEVICE

Features

Double LED scanner + strobe effect

Double multi-scanner with moving mirrors

Bright R, G, B, A & W LEDs are arranged behind the left and right lenses; white SMD LEDs are centered
on the underside of the device

Operable in stand-alone mode or via DMX interface

DMX512 control possible via any commercial DMX controller (occupies max.8 channels)

2 or 8 DMX channels selectable for numerous applications

Sound-control via built-in microphone

Microphone sensitivity adjustable via rotary control

The colorful beams change their direction of movement at every bass-beat in sound controlled mode

Comfortable addressing and setting via control panel with LED display and four operating buttons

Functions: Auto mode, sound control, internal programs, strobe settings via DMX, Master/Slave

Equipped with 128 x 5 mm RGBAW LEDs as well as 36 x SMD LEDs in white

Locking possibility at the mounting bracket

Switch-mode power supply, automatic power supply adaption between 100 and 240 Volts without power
selector

IEC Power cord with safety-plug included in delivery

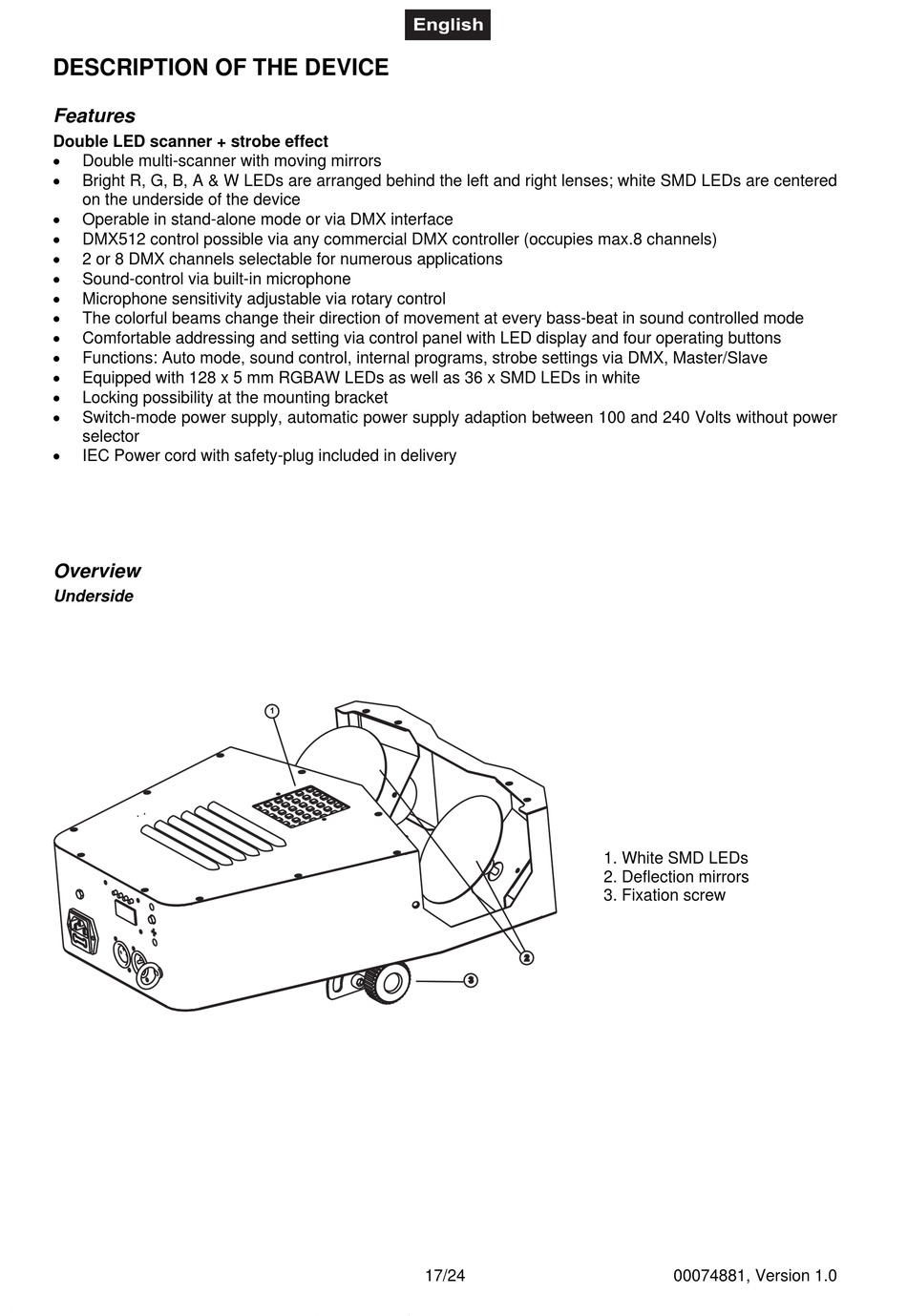

Overview

Underside
1
17/24
1. White SMD LEDs
2. Deflection mirrors
3. Fixation screw
2
3
00074881, Version 1.0
