Quax INDIGO Bauanleitung Seite 39

INDIGO
54 05 21xx

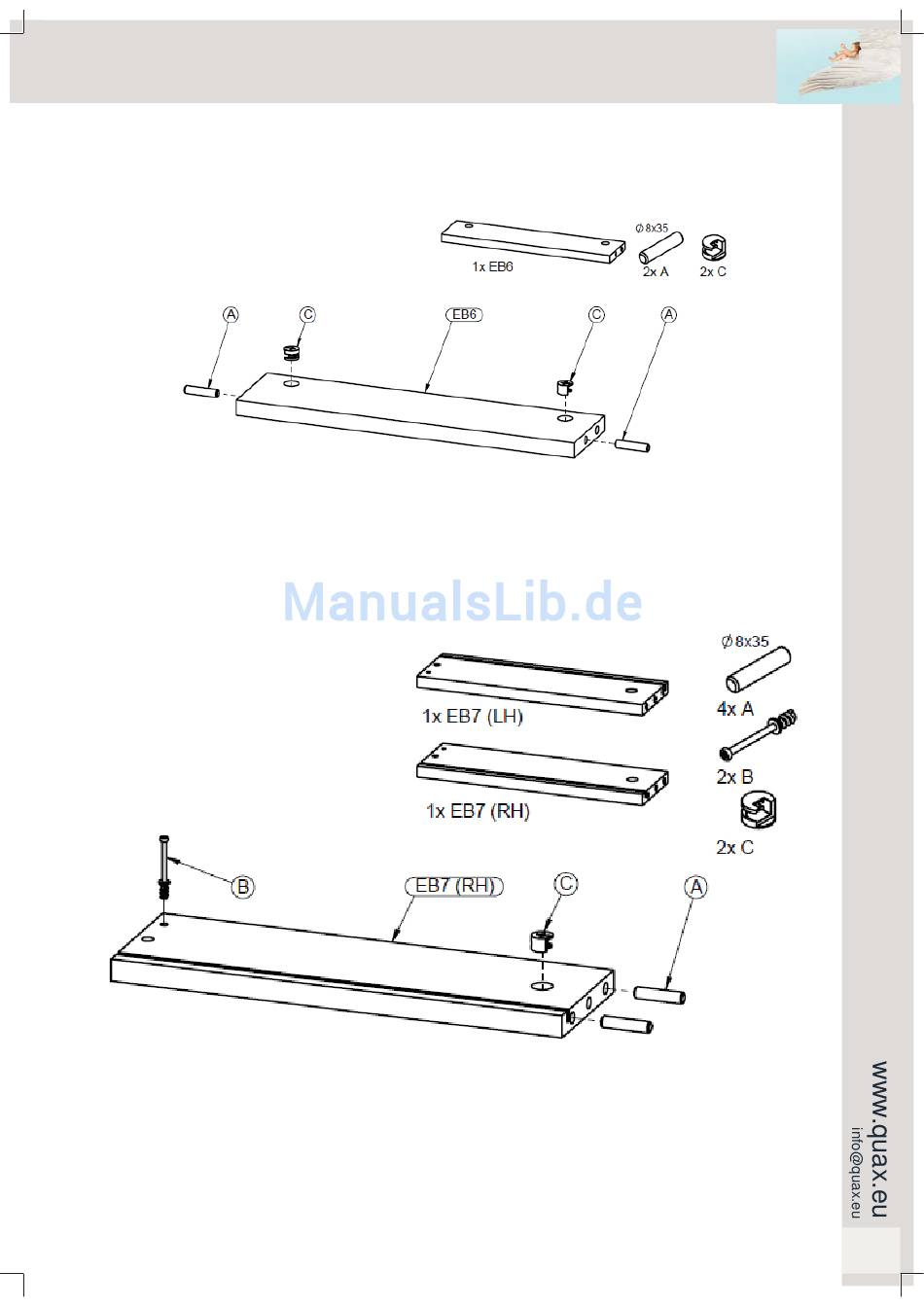

Step 10 : Use the the drawer back EB6, two wooden dowels A and two eccentrics C
Push a wooden dowel (A) in the drilling on the sides of the back (EB6). Push two eccentrics (C) into the
drillings on the outside of the back.
Step 11 : Use the left drawer side EB7 LH and the right one EB7 RH, four wooden dowels A, two connec-
tors B and two eccentrics C
Push two wooden dowels (A) in the drillings on the sides of the drawer sides (EB7 LH and EB7 RH). Push
an eccentric (C) into the drilling on the one end of the sides. Tighten a connectors (B) into the drilling on
the other end of the sides.
Nachttafel met een open vak en lade
Nachttisch mit Fach und Schublade
Table de nuit avec casier et tiroir
Night table with a drawer
Quax
First dreams
®
First steps
39
