3. Initial start-up

3.1. Ports

External appliances or sources can be very easily connected
to your TV set.

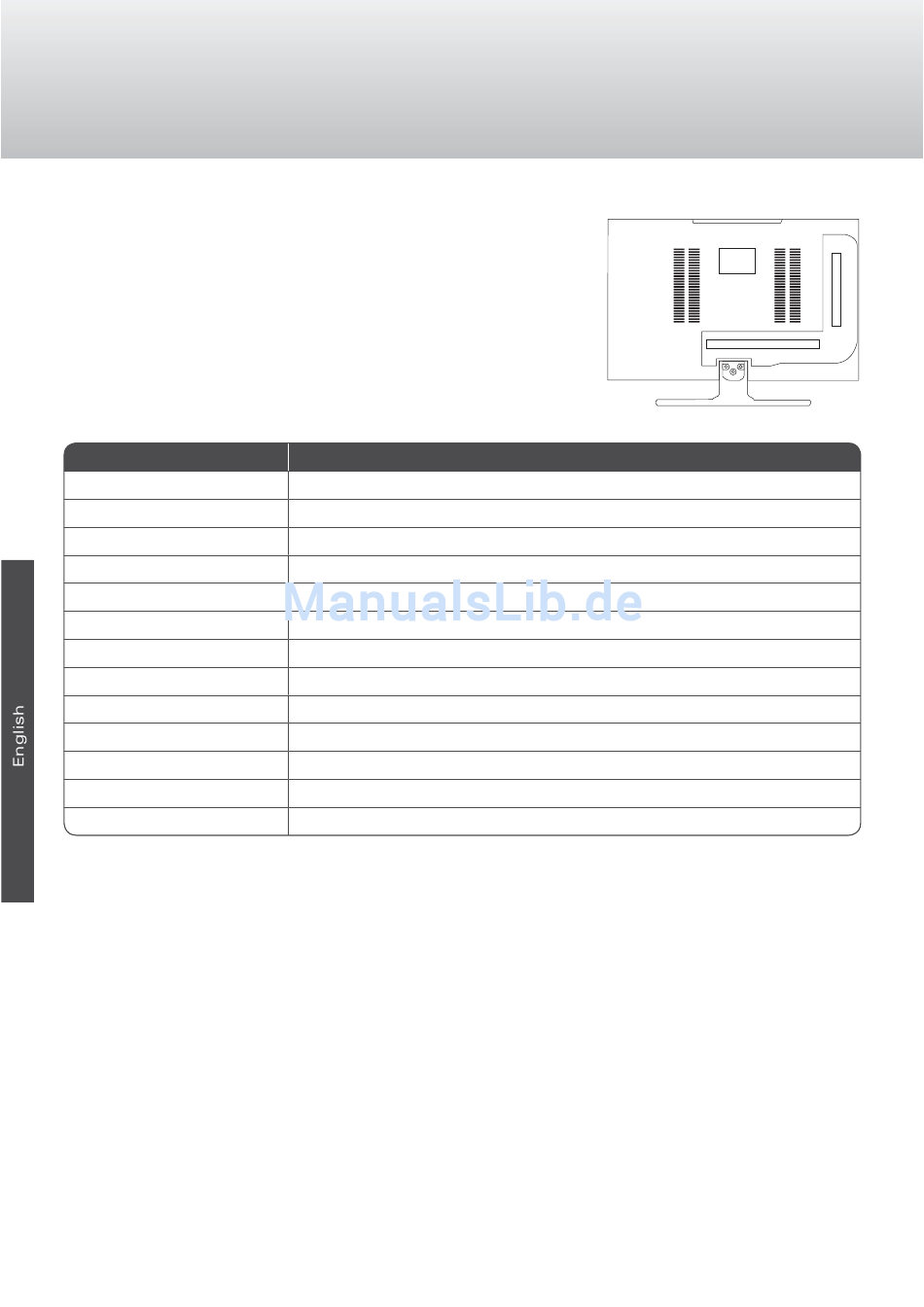

The connections are located on the back side of the
appliance.
Port
DC 12V IN
PC AUDIO
SCART
MINI YPbPr
EARPHONE
HDMI
RF
USB
CI
COAXIAL
VIDEO
AUDIO R
AUDIO L
It is possible to connect passive as well as active antennas (with integrated booster) to the
antenna input.
34
Explanation
Connection power cable / power supply
Audio connection PC
A/V input for external source
RGB video input
Headphone output
A/V input for external source, digital
TV antenna connection
USB connection for showing / playing picture / music / video files display
CI slot for receiving coded stations
Digital audio output
Video input for external source
Audio input for external source, right side
Audio input for external source, left side
