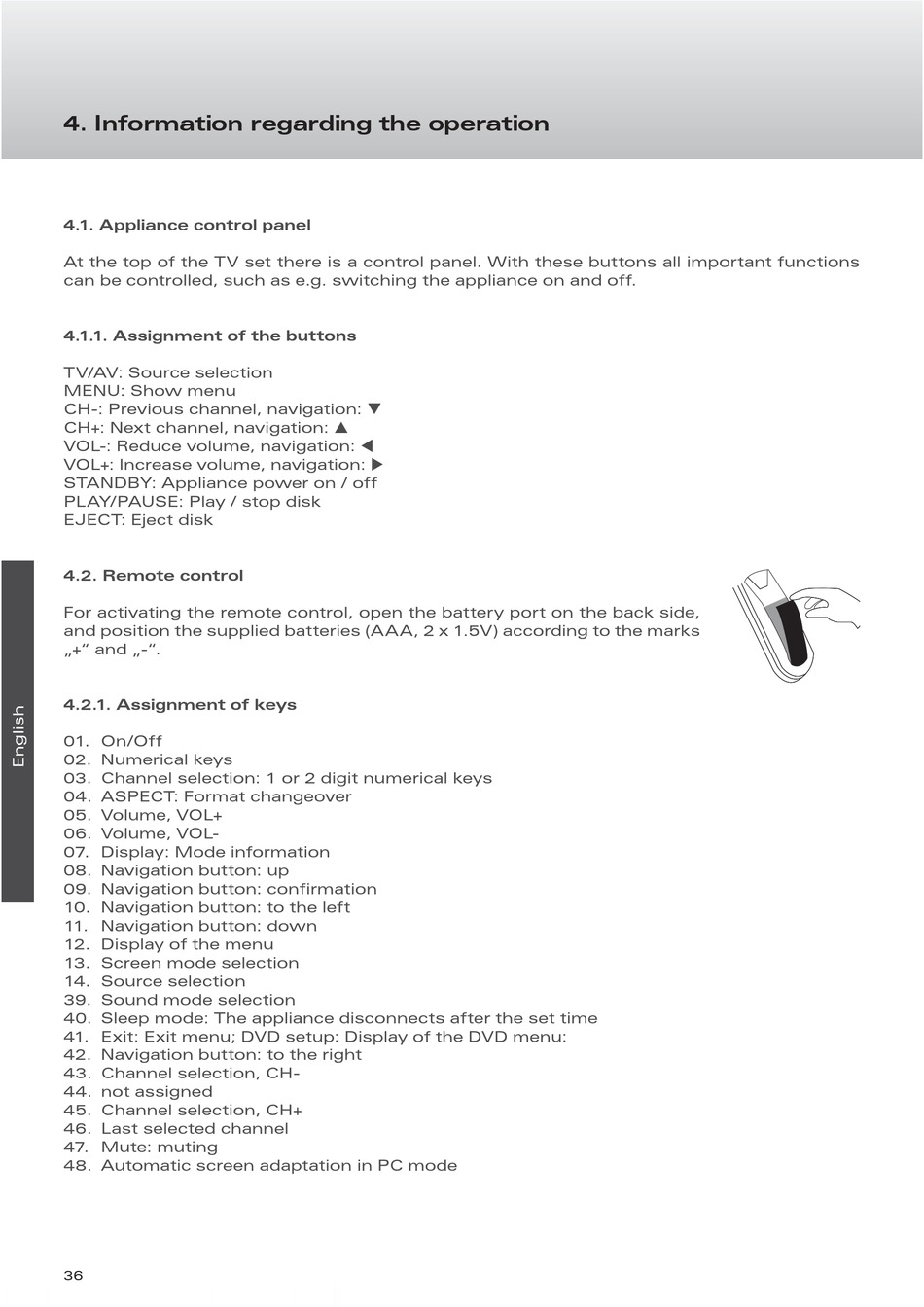

4. Information regarding the operation

4.1. Appliance control panel

At the top of the TV set there is a control panel. With these buttons all important functions
can be controlled, such as e.g. switching the appliance on and off.

4.1.1. Assignment of the buttons

TV/AV: Source selection
MENU: Show menu
CH-: Previous channel, navigation: T
CH+: Next channel, navigation: S
VOL-: Reduce volume, navigation: W
VOL+: Increase volume, navigation: X
STANDBY: Appliance power on / off
PLAY/PAUSE: Play / stop disk
EJECT: Eject disk

4.2. Remote control

For activating the remote control, open the battery port on the back side,
and position the supplied batteries (AAA, 2 x 1.5V) according to the marks
„+" and „-".

4.2.1. Assignment of keys

01. On/Off
02. Numerical keys
03. Channel selection: 1 or 2 digit numerical keys
04. ASPECT: Format changeover
05. Volume, VOL+
06. Volume, VOL-
07. Display: Mode information
08. Navigation button: up
09. Navigation button: confirmation
10. Navigation button: to the left
11. Navigation button: down
12. Display of the menu
13. Screen mode selection
14. Source selection
39. Sound mode selection
40. Sleep mode: The appliance disconnects after the set time
41. Exit: Exit menu; DVD setup: Display of the DVD menu:
42. Navigation button: to the right
43. Channel selection, CH-
44. not assigned
45. Channel selection, CH+
46. Last selected channel
47. Mute: muting
48. Automatic screen adaptation in PC mode
36
