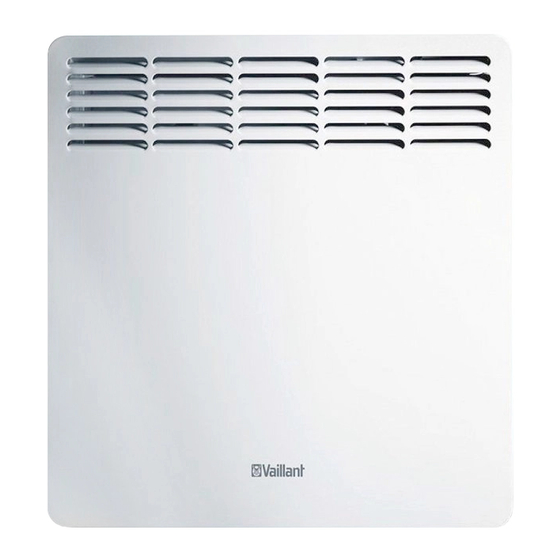

INSTALLATIONS- UND BEDIENUNGSANLEITUNG INSTALLATION AND OPERATING INSTRUCTIONS Vaillant-Witte ® Elektro-Raumheizer Vaillant-Witte ® Independent Room Heaters VER 75/3, VER 100/3, VER 150/3, VER 200/3, VER 250/3...
1 Application Universal independant room heaters, wall van vectors VER 75/3-VER 250/3, are designed and manufactured for a wide range of applications: residenti- al and business premises, bathrooms, halls, landings etc.
2 Construction (Fig. 2.1, page 8) The housing which accommodates the special-purpose heating unit is provi- ded with air slots underneath and at the front. The air is heated by free convection without a fan. The cold air enters the appliance on the underside, is heated as it flows past the special heating element and leaves the heater through the air outlet...
20 cm from the floor to the lower fixing hole. Appliance Hook the heater into the lower fixing type hooks. VER 75/3 > 200 Insert the upper fixing clips (7, fig. 3.3) VER 100/3 > 200 in their positions and press in.
The connecting lead is specific to con- vectors. Changing the connecting lead must only be carried out by an approved contractor. Only use original Vaillant special- purpose cables. 5 Starting up Set the switch (3) to position „I”. The built-in room thermostat keeps the required room temperature constant.
Technische Daten VER 75/3 VER 100/3 VER 150/3 VER 200/3 VER 250/3 Art.-Nr. 6205 6206 6207 6208 6209 Für Schäden, die durch Nichtbeach- tung dieser Anleitung entstehen, über- nehmen wir keine Haftung. Anschlußwert 0,75 kW 1,00 kW 1,50 kW 2,00 kW...
