COMPACT 3.0
Take care not to invert polarities when connecting the unit to the power supply. If this were to
happen, the plate would not come on and the unit would not work.
Centrifugal
blower
wiring communication
Az Blue
N Black
R Red
V Green
B White
A Yellow
Na Orange
M Brown
Compressor
electronic
module
2 Compressor

IMPORTANT WARNING!

Electronic
control
Battery /
Original shot
13

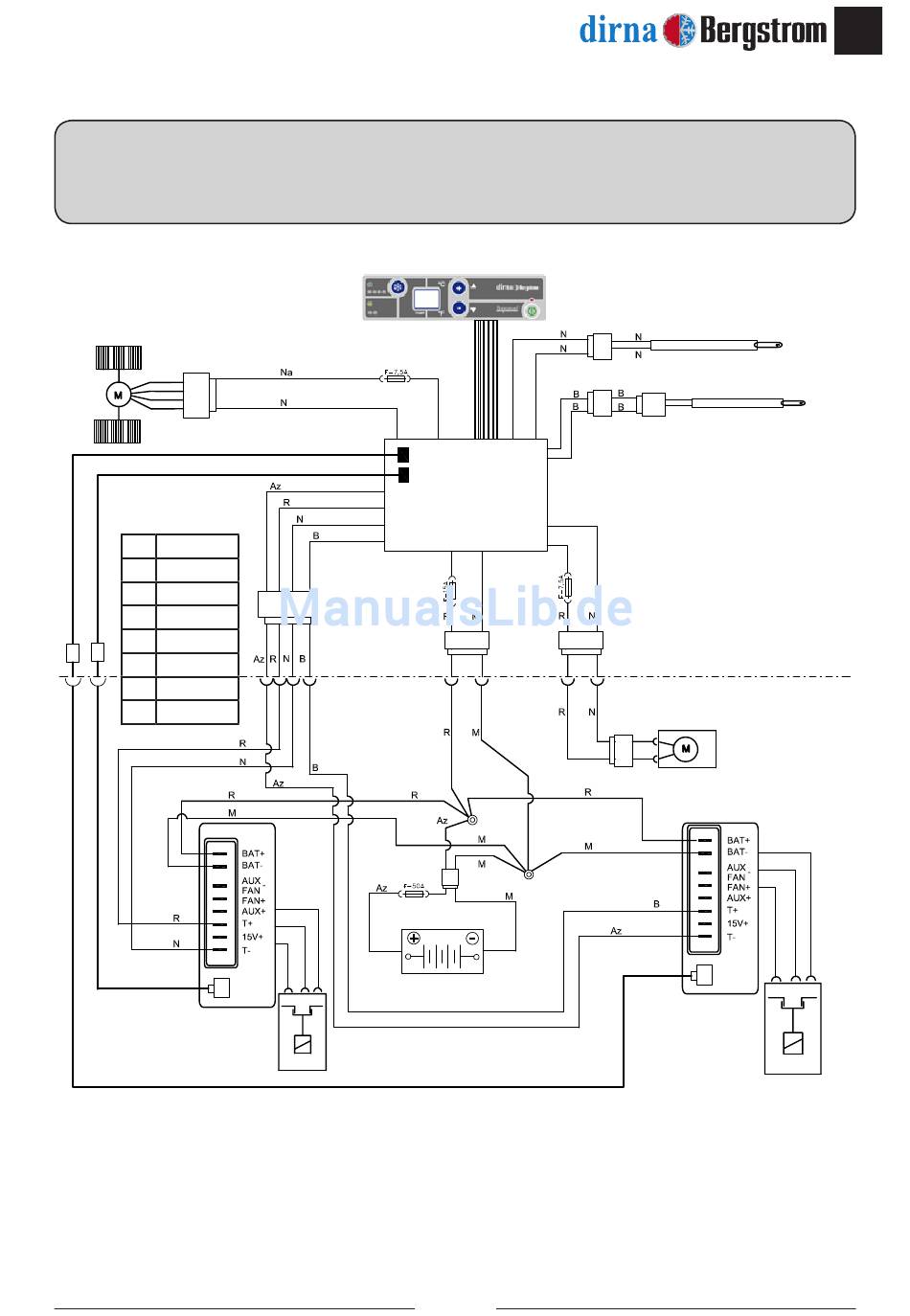

Electric wiring

Return
air sensor
Anti-freeze
sensor
Condenser
fan
Compressor
electronic
module
1 Compressor
EN
®
