Loading Ribbon And Roll Media
1
Ribbon Take-Up
Core
Printhead
Platen
(not shown)
8

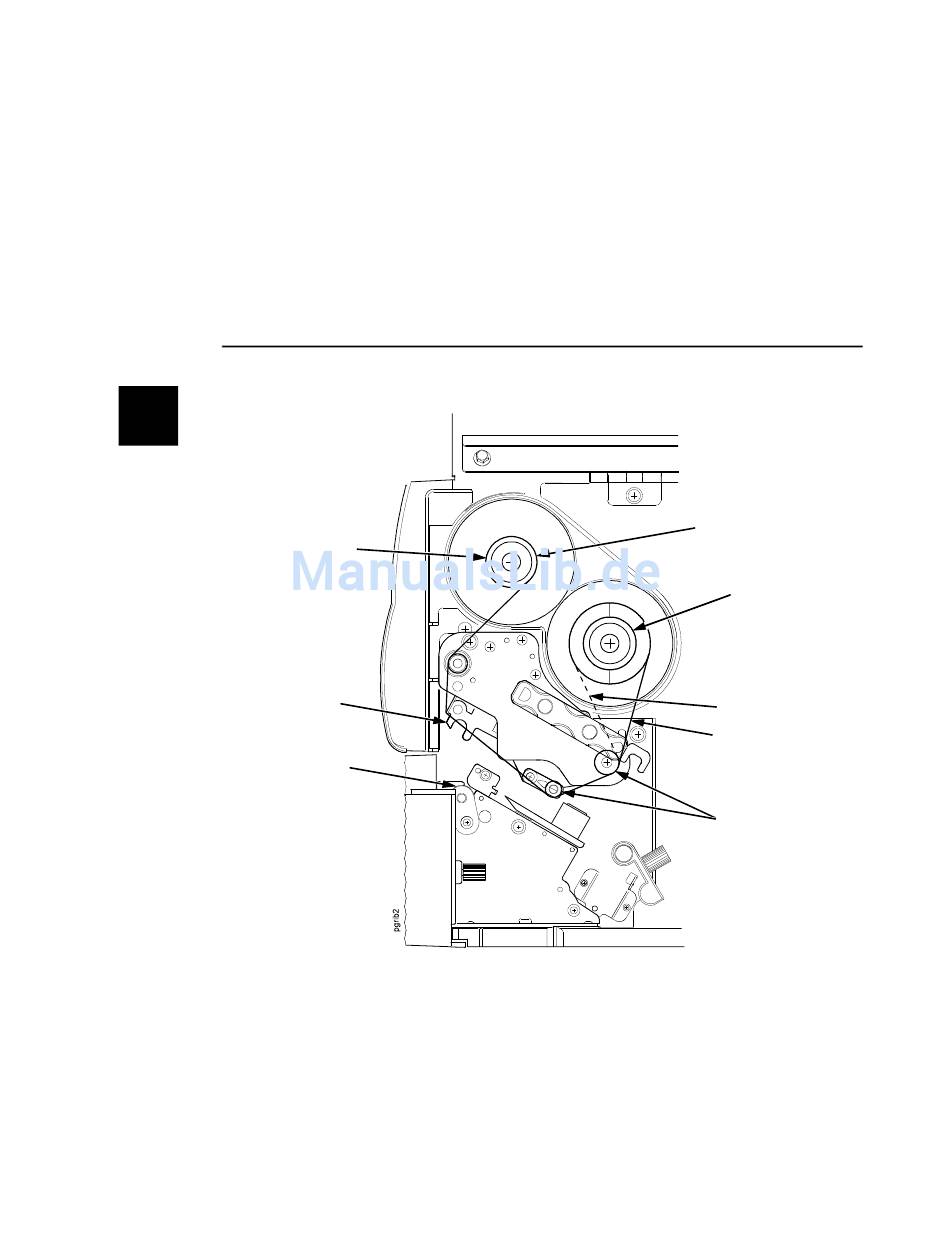

5. Thread the end of the ribbon under the ribbon guide rollers,
between the platen (rubber drive roller) and the printhead, and
between the ribbon take-up and supply spindles.
NOTE: Make sure to thread the ribbon behind the ribbon take-up
spindle.
NOTE: The alternate ribbon path is for ribbons that are inked on
the inside.
Ribbon
Take-Up Spindle
Ribbon
Supply Spindle
Alternate
Ribbon Path
Ribbon
Ribbon Guide
Roller (2)
