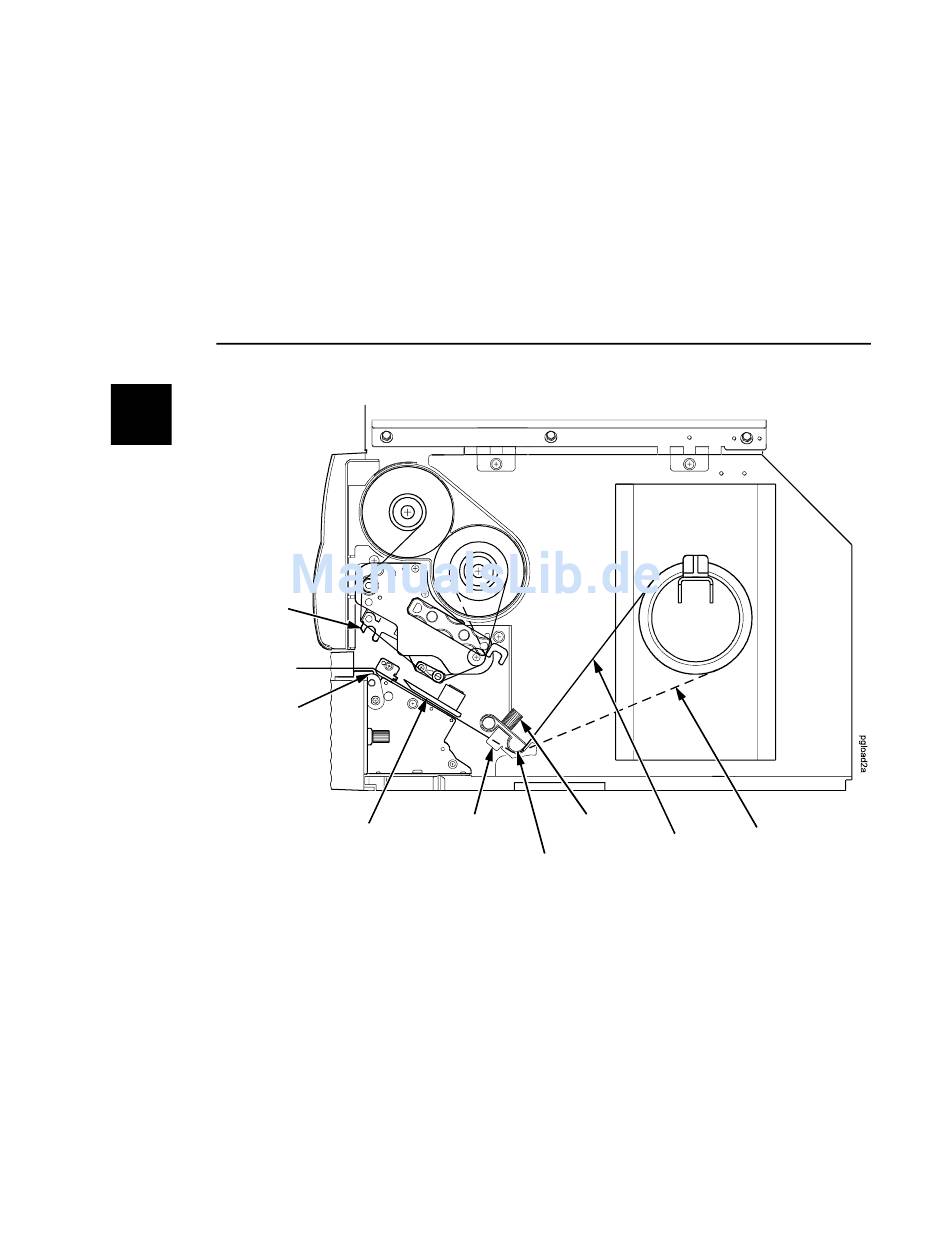

Loading Ribbon And Roll Media
1
Printhead
Platen
(not shown)
Media Sensor
Assembly
CAUTION
12
Media
Width Guide
Media Damper
4. Thread the media under the media damper, through the media
sensor assembly, and then between the platen and the
printhead.
NOTE: If you have a standard peel, label or liner rewinder, refer to
the User's Manual for proper threading instructions.
NOTE: The alternate media path is for inside wound label media.
If the media width guide locking knob is too loose or is
removed, the media width guide will fall off the printer.
5. Turn the media width guide locking knob counterclockwise just
enough to slide the media width guide, and no more.
6. Position the media width guide lightly against the outside edge
of the installed media and tighten the locking knob by turning it
clockwise.
Locking
Alternate
Knob
Media
Media Path
