Loading Ribbon And Roll Media
1
Media
(left edge)
Media
14
Inside Media
Edge Guide
Media Sensor
Assembly

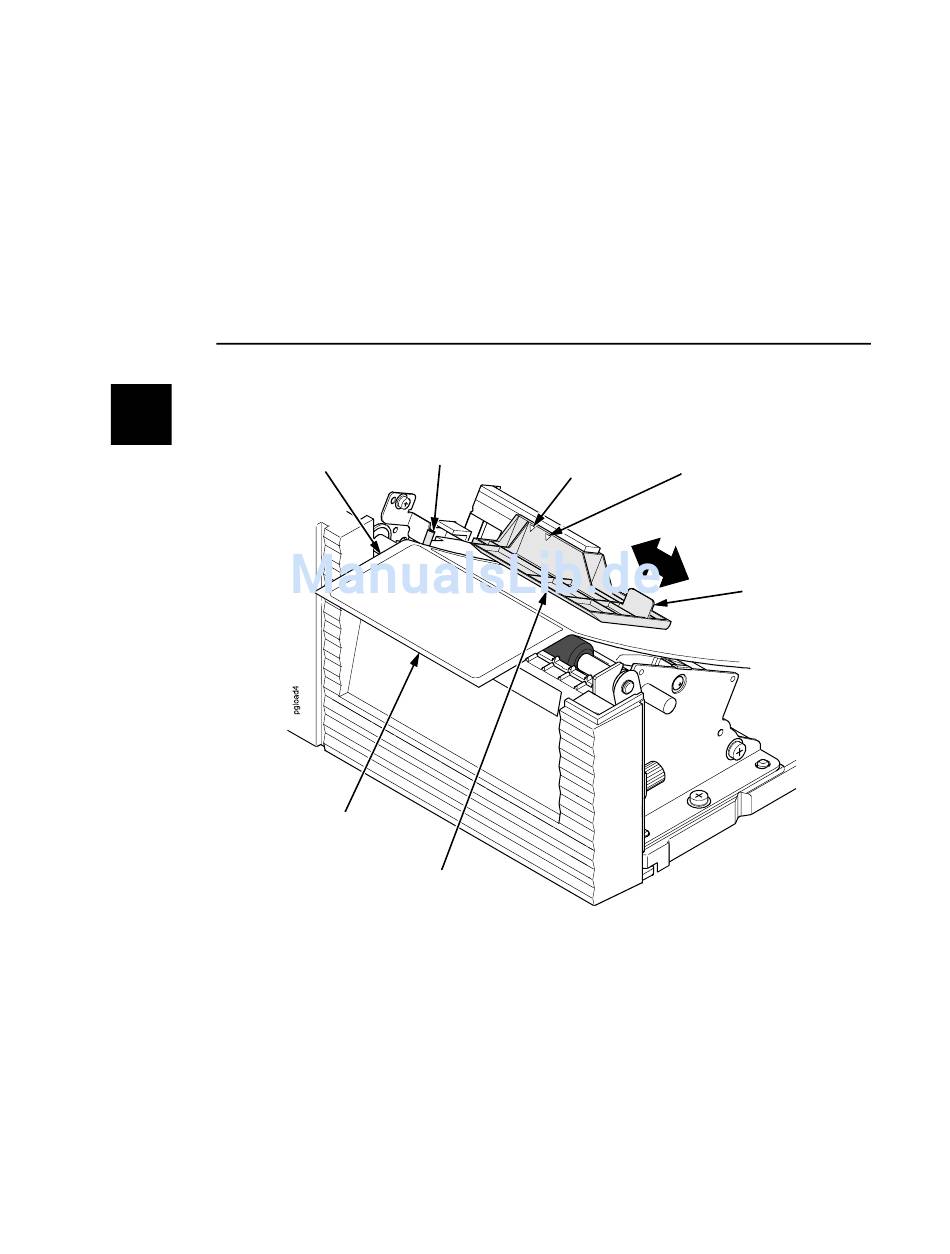

1. Align the left (inside) edge of the media with the inside media
edge guide.
2. If the label has no special label length indicators, leave the
media sensor assembly in the factory position.
Otherwise, use the media sensor handle to horizontally position
the media sensor assembly so that the sensor indicators
embossed on both of its sides are aligned with the label length
indicators on the media.
Use the Mark Sensor Indicator for media with black marks and
the Gap Sensor Indicator for media with gaps, notches, or
holes.
Mark Sensor
Indicator
Gap Sensor
(both sides)
Indicator
(both sides)
Media Sensor
Handle
