to a large extent. The water treatment through radiation also improves the health of the fish as
the level of germs in the water is reduced, decreasing the risk of infection. The physical principle
of radiation causes absolutely no change to the water values and has no negative effect on the
cleansing bacteria in the filter, which are vital for the breakdown of pollutants.
The JBL PROCRISTAL UV-C Water Clarifiers can be safely operated to pressures of up to 0.5 bar.
Therefore the operation with pumps which produce more than 0.5 bar pressure or the direct
connection to the water mains is not permitted.

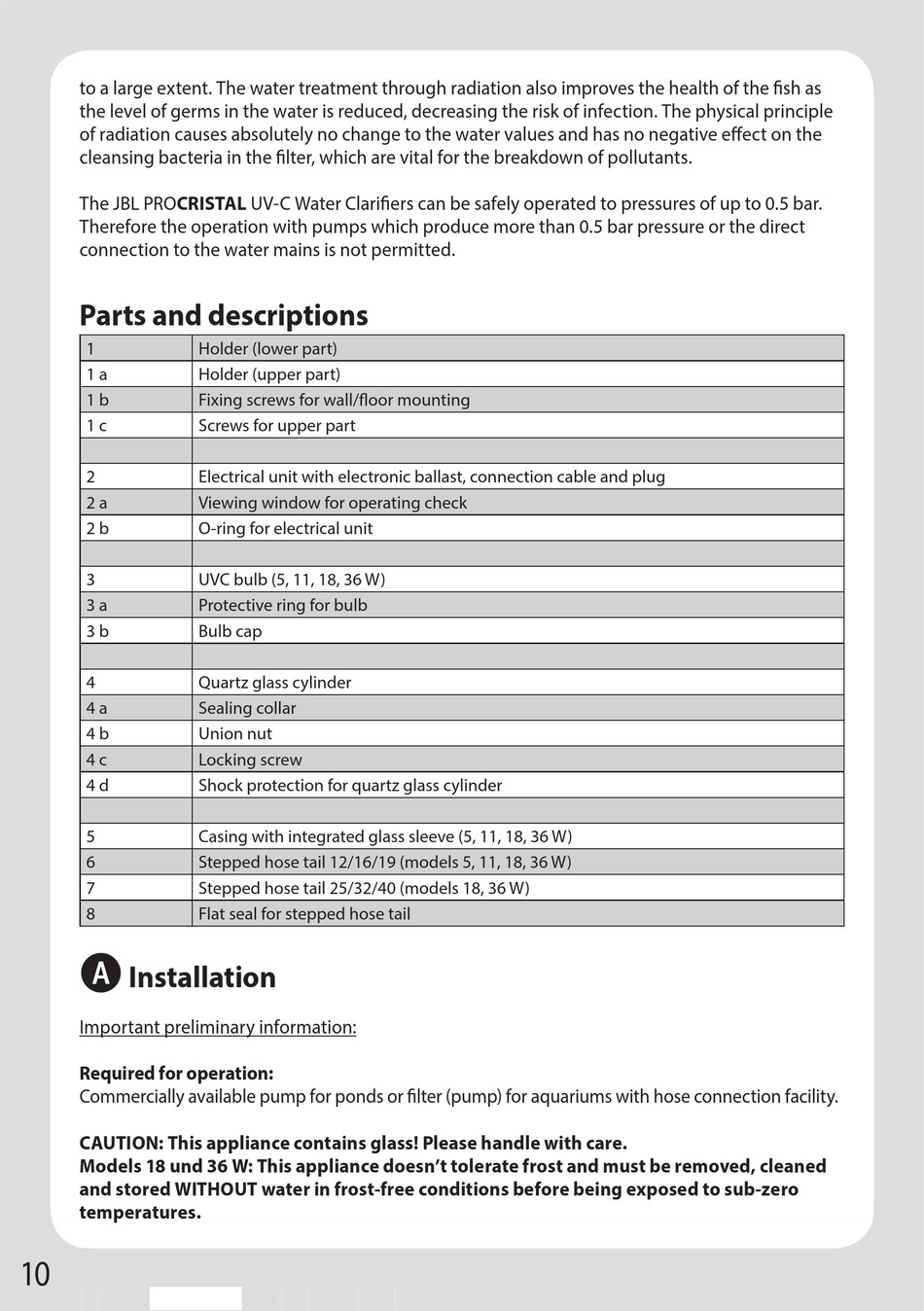

Parts and descriptions

1
1 a
1 b
1 c
2
2 a
2 b
3
3 a
3 b
4
4 a
4 b
4 c
4 d
5
6
7
8

Installation
Important preliminary information:
Required for operation:
Commercially available pump for ponds or filter (pump) for aquariums with hose connection facility.
CAUTION: This appliance contains glass! Please handle with care.
Models 18 und 36 W: This appliance doesn't tolerate frost and must be removed, cleaned
and stored WITHOUT water in frost-free conditions before being exposed to sub-zero
temperatures.
10
Holder (lower part)
Holder (upper part)
Fixing screws for wall/floor mounting
Screws for upper part
Electrical unit with electronic ballast, connection cable and plug
Viewing window for operating check
O-ring for electrical unit
UVC bulb (5, 11, 18, 36 W)
Protective ring for bulb
Bulb cap
Quartz glass cylinder
Sealing collar
Union nut
Locking screw
Shock protection for quartz glass cylinder
Casing with integrated glass sleeve (5, 11, 18, 36 W)
Stepped hose tail 12/16/19 (models 5, 11, 18, 36 W)
Stepped hose tail 25/32/40 (models 18, 36 W)
Flat seal for stepped hose tail
