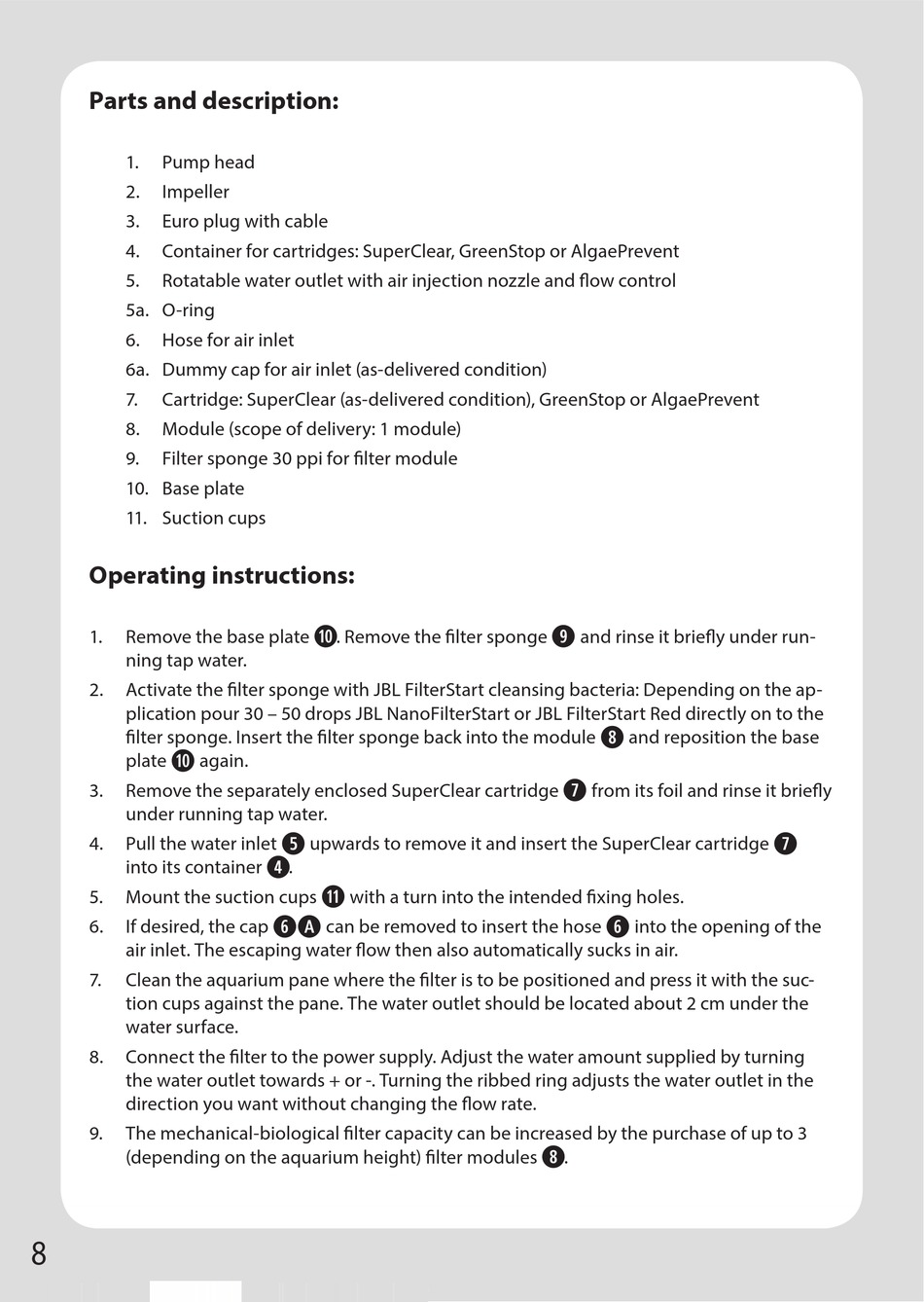

Parts and description:

1. Pump head
2. Impeller
3. Euro plug with cable
4. Container for cartridges: SuperClear, GreenStop or AlgaePrevent
5. Rotatable water outlet with air injection nozzle and flow control
5a. O-ring
6. Hose for air inlet
6a. Dummy cap for air inlet (as-delivered condition)
7. Cartridge: SuperClear (as-delivered condition), GreenStop or AlgaePrevent
8. Module (scope of delivery: 1 module)
9. Filter sponge 30 ppi for filter module
10. Base plate
11. Suction cups
Operating instructions:
1. Remove the base plate
ning tap water.
2. Activate the filter sponge with JBL FilterStart cleansing bacteria: Depending on the ap-
plication pour 30 – 50 drops JBL NanoFilterStart or JBL FilterStart Red directly on to the
filter sponge. Insert the filter sponge back into the module
plate again.

3. Remove the separately enclosed SuperClear cartridge
under running tap water.
4. Pull the water inlet
into its container
5. Mount the suction cups
6. If desired, the cap
air inlet. The escaping water flow then also automatically sucks in air.
7. Clean the aquarium pane where the filter is to be positioned and press it with the suc-
tion cups against the pane. The water outlet should be located about 2 cm under the
water surface.
8. Connect the filter to the power supply. Adjust the water amount supplied by turning
the water outlet towards + or -. Turning the ribbed ring adjusts the water outlet in the
direction you want without changing the flow rate.
9. The mechanical-biological filter capacity can be increased by the purchase of up to 3
(depending on the aquarium height) filter modules
8
. Remove the filter sponge

upwards to remove it and insert the SuperClear cartridge

 .
with a turn into the intended fixing holes.

 can be removed to insert the hose
and rinse it briefly under run-

 and reposition the base
 from its foil and rinse it briefly
 into the opening of the
 .

