10 11 12
7
8
9
(7)
Connexion MIC
Raccordement du microphone
(8)
Prise LINE OUT
destinée au raccordement d'un enregistreur ou d'un amplificateur externe
(9)
Prise LINE IN
destinée au raccordement d'un appareil Line (lecteur CD, tuner etc.)
(10)
Bouton de réglage TALKOVER
destiné au réglage de l'atténuation Talkover
(11)
Affichage TALKOVER
s'allume lorsque la fonction Talkover est active
(12)
Bouton de réglage MIXER LINE
règle la sensibilité de l'entrée LINE
(13)
Bouton de réglage MIXER MIC
règle la sensibilité de l'entrée microphone MIC
(14)
Bouton de réglage MIXER USB/SD
règle la sensibilité de la prise USB ou de la fente pour carte SD
(15)
Bouton de réglage MASTER VOLUME
règle le volume total
(16)
Bouton de réglage MASTER TONE
règle le son
(17)
Bouton POWER
met l'appareil en marche/en arrêt
(18)
Affichage CHARGING
Affichage de la fonction de charge
44
13
14
15
16
17 18

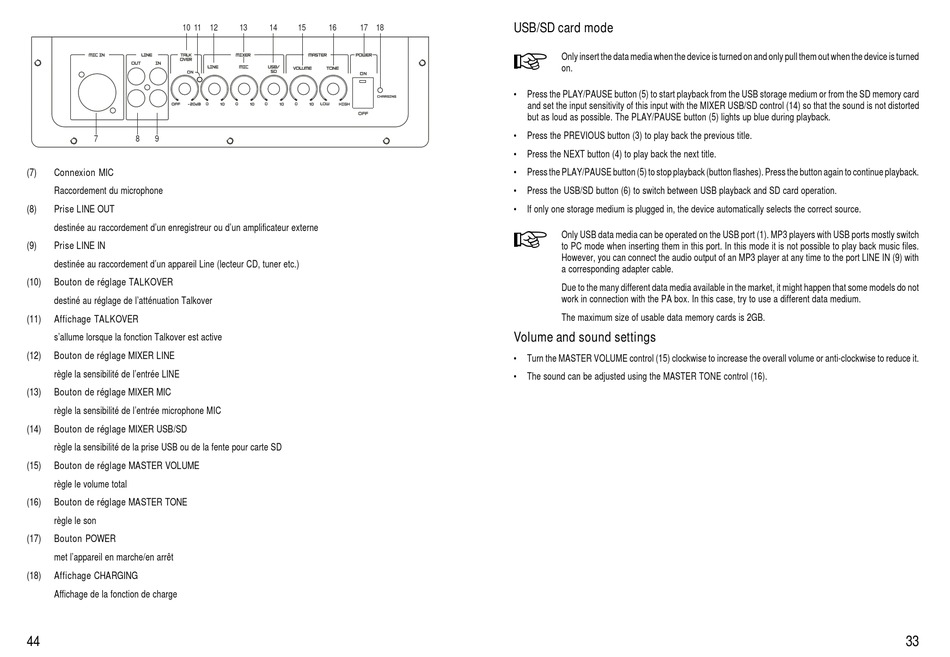

USB/SD card mode
Only insert the data media when the device is turned on and only pull them out when the device is turned
on.
•
Press the PLAY/PAUSE button (5) to start playback from the USB storage medium or from the SD memory card
and set the input sensitivity of this input with the MIXER USB/SD control (14) so that the sound is not distorted
but as loud as possible. The PLAY/PAUSE button (5) lights up blue during playback.
•
Press the PREVIOUS button (3) to play back the previous title.
•
Press the NEXT button (4) to play back the next title.
•
Press the PLAY/PAUSE button (5) to stop playback (button flashes). Press the button again to continue playback.
•
Press the USB/SD button (6) to switch between USB playback and SD card operation.
•
If only one storage medium is plugged in, the device automatically selects the correct source.
Only USB data media can be operated on the USB port (1). MP3 players with USB ports mostly switch
to PC mode when inserting them in this port. In this mode it is not possible to play back music files.
However, you can connect the audio output of an MP3 player at any time to the port LINE IN (9) with
a corresponding adapter cable.
Due to the many different data media available in the market, it might happen that some models do not
work in connection with the PA box. In this case, try to use a different data medium.
The maximum size of usable data memory cards is 2GB.
Volume and sound settings
•
Turn the MASTER VOLUME control (15) clockwise to increase the overall volume or anti-clockwise to reduce it.
•
The sound can be adjusted using the MASTER TONE control (16).
33
