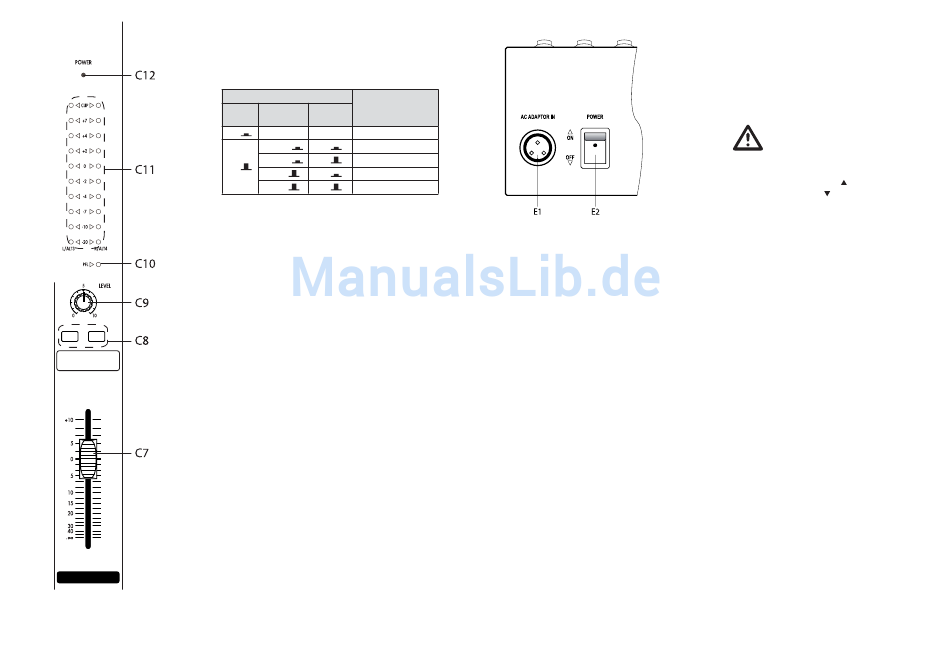

C7. MAIN Fader
Slide the fader to adjust the signal level of MAIN output (D7).
C8. Channel switching buttons
The following table shows how the button settings correspond to
the signal selection.
Switches
Signal output via the
CONTROL ROOM/
PFL
ALT 3/4
TAPE IN
PHONE sockets
On (
)
–––
–––
ALT 3/4 (
)
On (
)
TAPE IN
ALT 3/4 (
)
Off (
)
ALT 3/4
Off (
)
MAIN (
)
On (
)
TAPE IN
MAIN (
)
Off (
)
C9. PHONE/ CTRL-R LEVEL control
Adjust the signal output to the CONTROL ROOM (D9) and
PHONE (D8) sockets.
C10. PFL indicator
The indicator lights up if PFL function of any channel is activated.
C11. Level meter
The LED meter displays the level of the signal selected by the
MAIN button, Stereo RETURN control and PFL button. The "0"
segment corresponds to the nominal output level. The CLIP
segment lights up when the output reaches the clipping level.
C12. Power indicator
The indicator lights up when the power is on.
E) Panneau arrière
PFL
MAIN
E1. Prise de courant
Raccordez la sortie de basse tension du transformateur à
la prise de courant.
1.
Insérez la fi che de base tension du transformateur
dans la prise de courant.
2.
Serrez l'anneau en tournant dans le sens des aiguilles
d'une montre.
Gardez une distance d'au moins 0,5m entre
le mixeur et le transformateur pour éviter des
interférences.
E2. Commutateur ON/OFF
Mettre le commutateur sur «
ON » pour allumer le
pupitre de mixage et sur «
OFF » pour l'éteindre.
