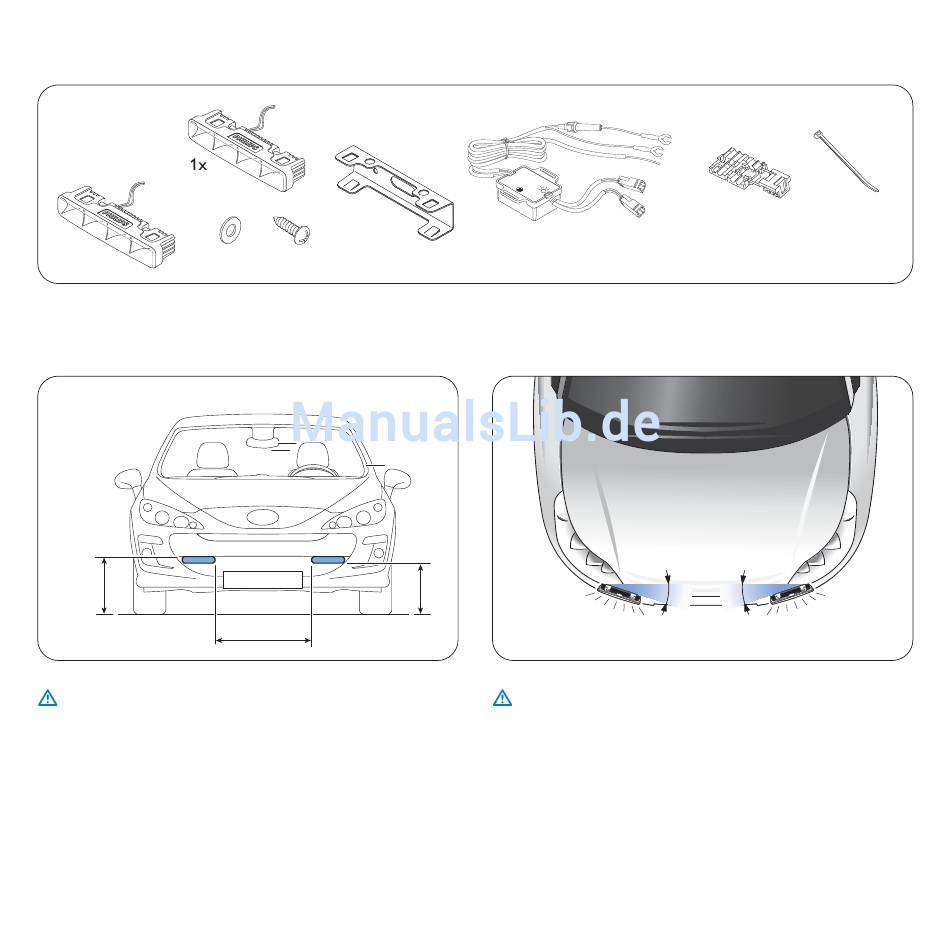

Content of the Philips LED DayLight 4 kit
2 m
1x
3
Where to install Philips LED DayLight 4
max
1500 mm
Legal installation position
ECE regulation 48
Make sure that the installation position of the
Philips LED DayLight 4 modules conforms to
the diagram above.
2
3 m
2x
4x 4x
Philips
min 600 mm
1x
min
250 mm
Horizontal tilting regulation
In order to follow the shape of the vehicle,
Philips LED DayLight 4 optics have been
especially designed to insure full conformity
with the 10° (max) horizontal tilting angle
regulation.
1x
10° max 10° max
10x
