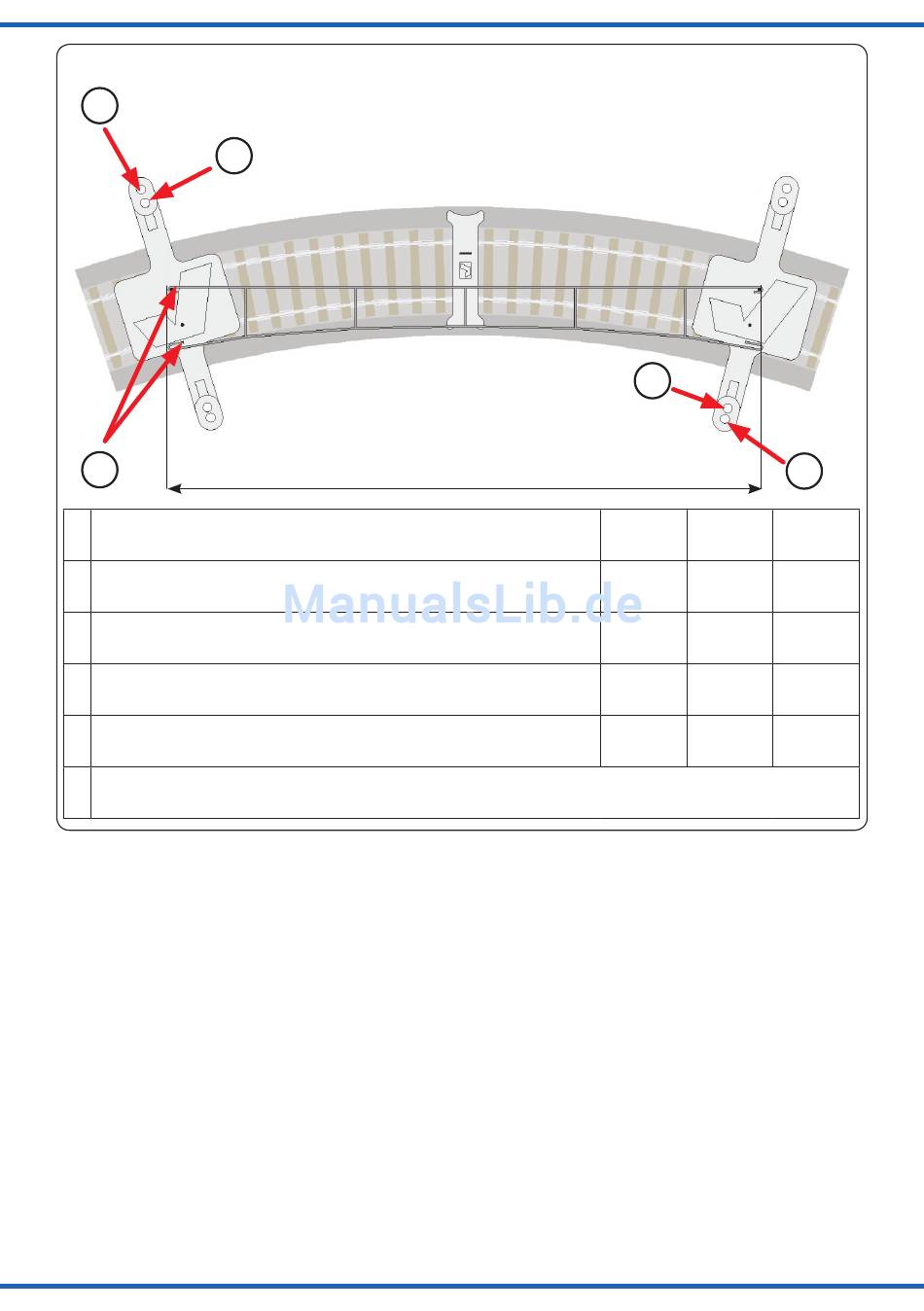

Abb. 12
1
5
1 Abstand zur Gleismitte für Quertragwerke
Distance to the middle of the tracks, for headspans
2 Abstand zur Gleismitte für Abspannmasten mit Ausleger
Distance to the middle of the tracks, for tensioning masts with bracket
3 Abstand zur Gleismitte für Streckenmasten
Distance to the middle of the tracks, for all standard masts
4 Abstand zur Gleismitte für Turmmasten mit Ausleger
Distance to the middle of the tracks, for tower masts with beam
5 Fahrdrahtaufnahmen
Running wire fastening
Mit der Ösen-Biegezange (Art.-Nr. 4198) von
Viessmann können Sie auch die Fahrdrahtlängen
bzw. Mastabstände indviduell Ihrer Anlage ent-
sprechend festlegen. Der maximale Mastabstand
ist vom Gleisbogenradius R und der Seitenabwei-
chung des Fahrdrahtes S abhängig. Er kann nach
folgender Formel errechnet werden:
L max. = 4 x √ R x S
10

Verwendung der Mastpositionslehre

Use of the mast position gauge
2
Fahrdrahtlänge / Length of the contact wire
3
H0
4197
40 mm
35,4 mm 26 mm
34 mm
37,5 mm 27,5 mm 20,7 mm
With the eye hook bending pliers (item-No. 4198)
from Viessmann you can adjust the length of the
catenary wires or the distance between the masts
to fit your individual layout. The maximum distance
is depending on the radius of the track curve R and
the sideways deviation of catenary wire S. It can be
calculated with the following formula:
L max. = 4 x √ R x S
Fig. 12
4
TT
N
4297
4397
29 mm
23 mm
20 mm
25 mm
19 mm
