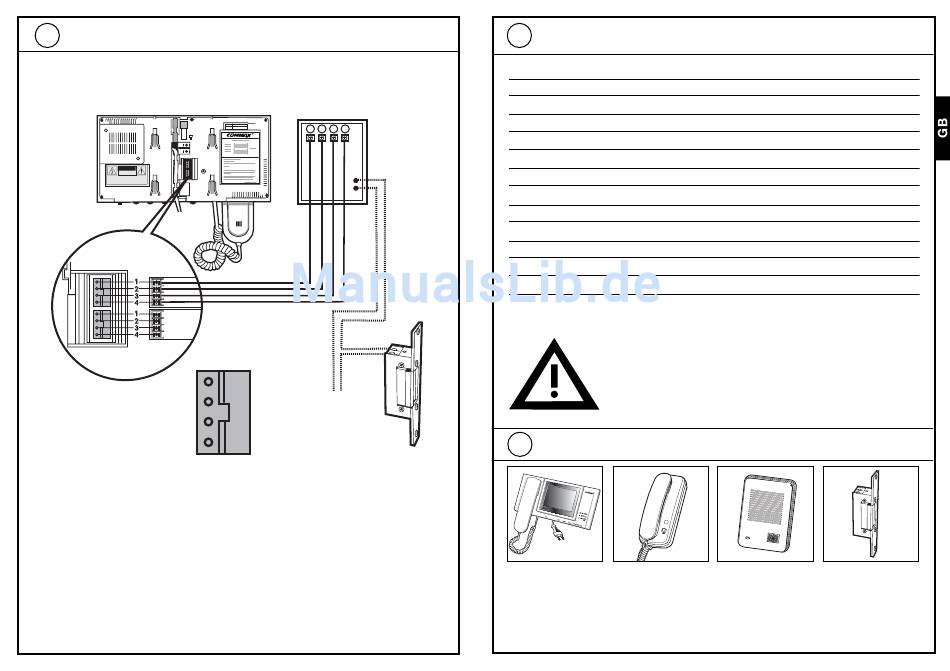

5.
Wiring
Monitor
CDV-50
S1
S2
C A U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONEL.
1
2
3
4
Camera/outdoor device
DRC-4CAN
1
2
3
4
Socket
CDV-50
External
power unit
(Option)
Door opener
(Option)
6.
Technical Data
DRC-4CAN camera/outdoor unit
Imaging sensor
1/4" CCD colour
Light sensitivity
approx. 1 lux
Temperature range
-10°C to +40°C
Dimensions
approx. H 18,7 x W 12,3 x D 1,7 cm
max. camera-monitor distance
approx. 100 m with 0.8 mm
CDV-50 monitor/receiver
Mains connection
100 - 240V AC 50/60 Hz
Diagonal
5" colour TFT LCD
Dimensions
approx. H 28,3 x W 13,7 x D 5,0 cm
Power consumption
approx. 18 W
Wiring
4 wires (existing bell wire)
Test mark
TÜV/GS, CE
The right to make technical changes or changes to the appearance without prior warning is retained.
Safety notice:
Please only use the internal unit in dry areas, and do not expose
it to water drops or spray. Moreover, please ensure that the ven-
tilation openings are not covered by objects, e.g. curtains and net
curtains. The outdoor unit should be mounted with as much shel-
ter as possible, and not exposed to extreme environmental con-
ditions.
7.
Accessories
Monitor
Internal device
CDV-50
DP-4VR
Item No.: 008755A
Item No.: 008939
Max. 2 additional
Max. 3 additional
monitors!
telephones!
2
approx. 80 m with 0.65 mm
Door opener +
Gong
power unit
DC-2D
Item No.: 009479A
Different versions
available as system
accessories
2
