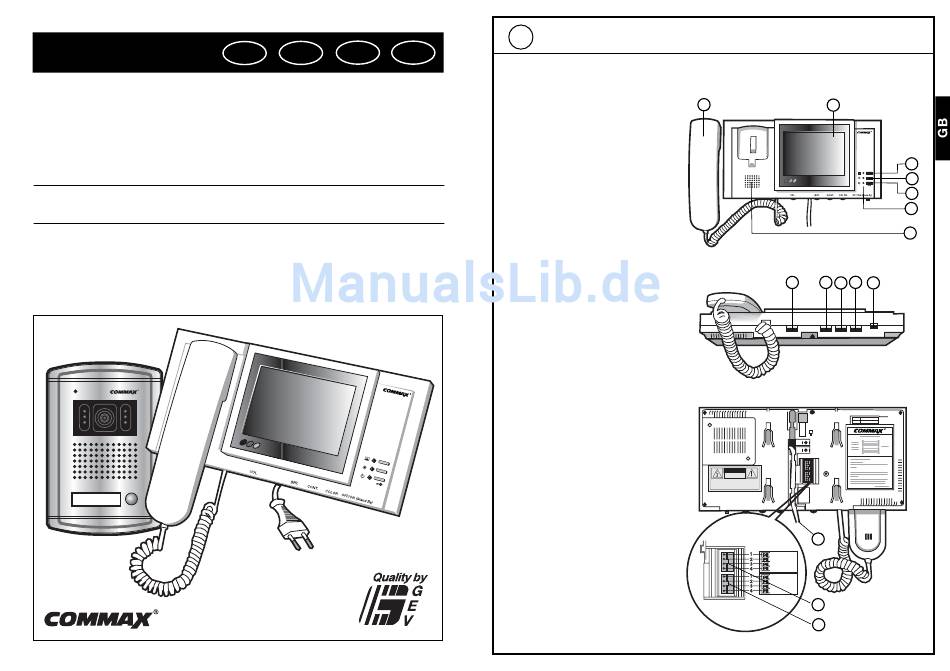

A S S E M B LY
ComBoy
Video entryphone system
1-family house set with flush-mounted camera
Type: 008427A consisting of:
F
NL
D
GB
1 x Monitor:
CDV-50
1 x outdoor camera: DRC-4CAN
1.
Technical Equipment
1.) Monitor key
When this key is pressed the
outdoor camera is switched on for
approx. 30 sec., and the image
is transmitted to the monitor
2.) Intercom system (option)
When pressed, the DP-4VR wall
telephone or the second monitor
is called
3.) Door opener (option)
Key for opening the door
4.) Operating indicator
Lights up when the monitor is
switched on
5.) Gong volume control
6.) Intensity regulator
For adjusting the monitor's
picture brightness
7.) Contrast
8.) Colour adjustment
9.) ON/OFF switch
For the video entryphone system
10.) Receiver
Allows communication between
the door unit and the DP-4VR wall
telephone (option)
11.) Loudspeaker
The gong sounds twice when a
visitor presses the call button on
the outdoor unit
12.) Monitor
5" colour TFT LCD
13.) Mains connection
For connecting the device to the
mains
14.) Connection Terminal
For the DRC-4CAN camera
15.) Connection terminals (option)
For the intercom system
(DP-4VR wall telephone)
CDV-50
10
12
6
8
5
7
9
S1
S2
C A U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONEL.
13
14
15
1
2
3
4
11
