1a

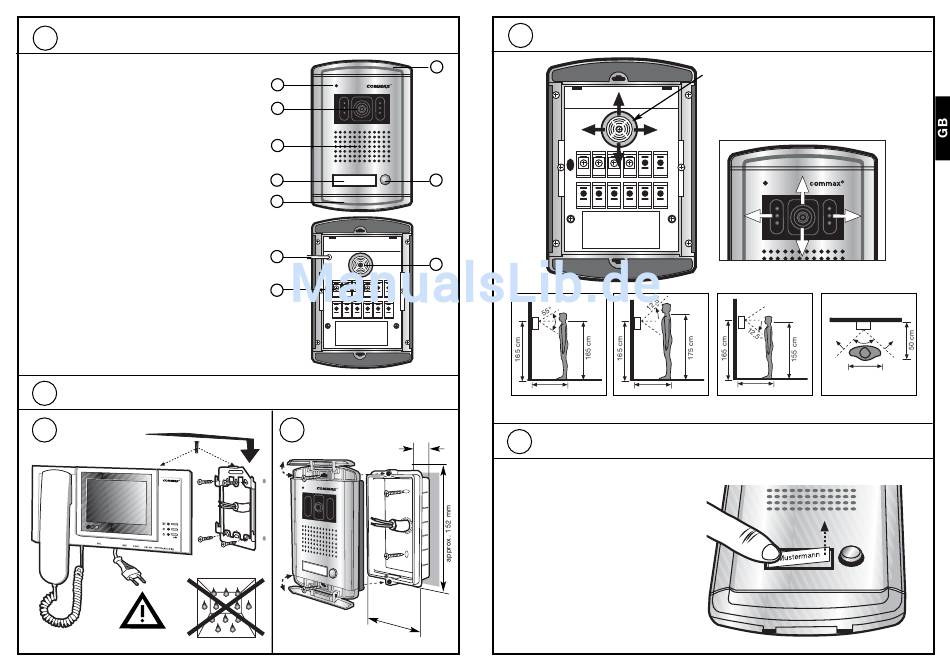

Technical Equipment
1.) Microphone
2.) Camera objective lens
1/4" CCD colour
3.) Loudspeaker
4.) Illuminated nameplate
Lights up when the camera is active
5.) Cover flap
For covering the fastening of the flush-
mounted housing
6.) Call button
Causes the unit to ring, and at the same
time activates the camera for approx.
80 sec. (Image appears on the monitor)
7.) Connecting cable
Potenial-free contact for the door ope-
ner
8.) Horizontal and vertical adjustment of
the camera
9.) Connection Terminal
For wiring with the CDV-50 monitor
2.
Assembly
2a
DRC-4CAN
5
1
2
3
4
6
5
7
8
9
1
2
3
4
5
6
7
8
9
10
11
12
2b
approx. 40 mm
approx. 98 mm
3.
Adjusting the camera
1
2
3
4
5
6
7
8
9
10
11
12
50 cm
50 cm
Normal position
Tilted upwards
4.
Nameplate cover
It is possible to change the name-
plate cover by pushing the cover
downwards to the side.
The plastic cover can then be pulled
out upwards. The cover is inserted
by following the opposite sequence.
DRC-4CAN
The objective/LED element can be
swung to an upper, lower or side position
to adjust the camera angle.
68°
12,5°
12,5°
46 cm
50 cm
Tilted downwards
Camera angled to the
side
