How to put into operation
Note the figure on the fold-out page
1
Loudspeaker
2
Mains connection cable
3
ON/OFF switch with a volume controller
4
Channel switch
5
Talking button
6
Calling button
7
Green LED to indicate operation
8
Red LED to indicate talking and calling
9
Microphone
10 Permanent talking button

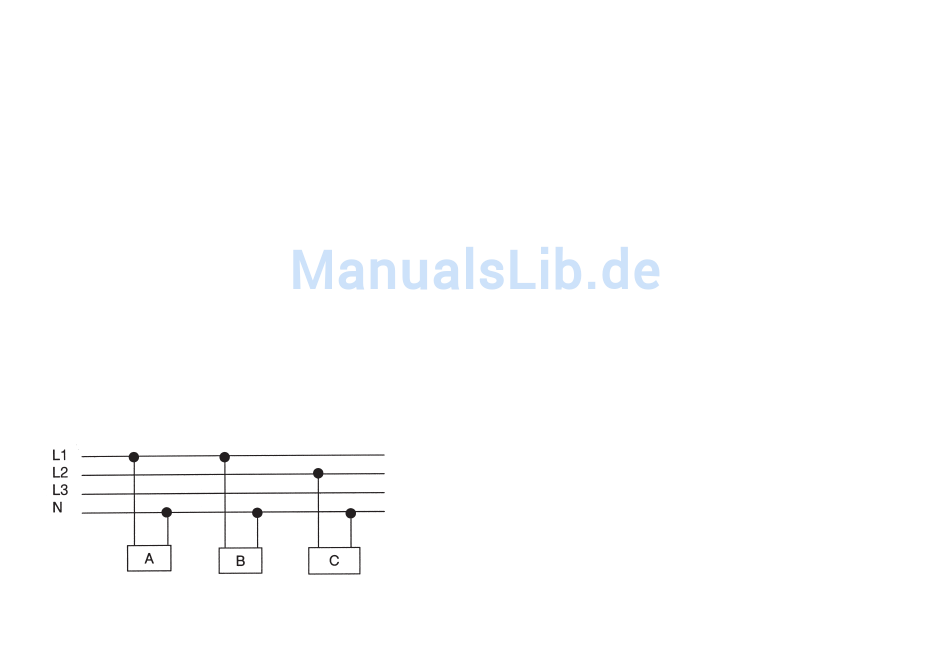

Insert the mains plug of each individual set in a mains socket of the
public supply network. Note here that a voice communication bet-
ween the sets is possible only if these are located in the same cir-
cuit.
Communication is possible between A + B
Communication is impossible between A + B
Set the channel switch to a common channel (positions A or B).
14
Switch the sets on and tune them to the desired volume.
Depress the calling button to call the other set in the other room.
The set thus called receives a call signal.
For an answer, depress and hold depressed the talking button.
Note:
If you should only hear a loud singing tone (feedback) tune back
the volume until the singing tone stops or the sets require to be
positioned farther away from each other.
Release the talking button again to listen to the answer.
Press the permanent talking button for a room supervision.
Press the permanent talking key another time to return to normal
operation.
Note:
When in the "Room supervision" mode the set concerned will
not receive any notices or call signals.
How to clean
Attention:
Note the safety instructions and first extract the plug from the
socket.
We recommend that you use a dry, non-fluffy cloth to clean the
casing. You should not use cleansing agents.
15
