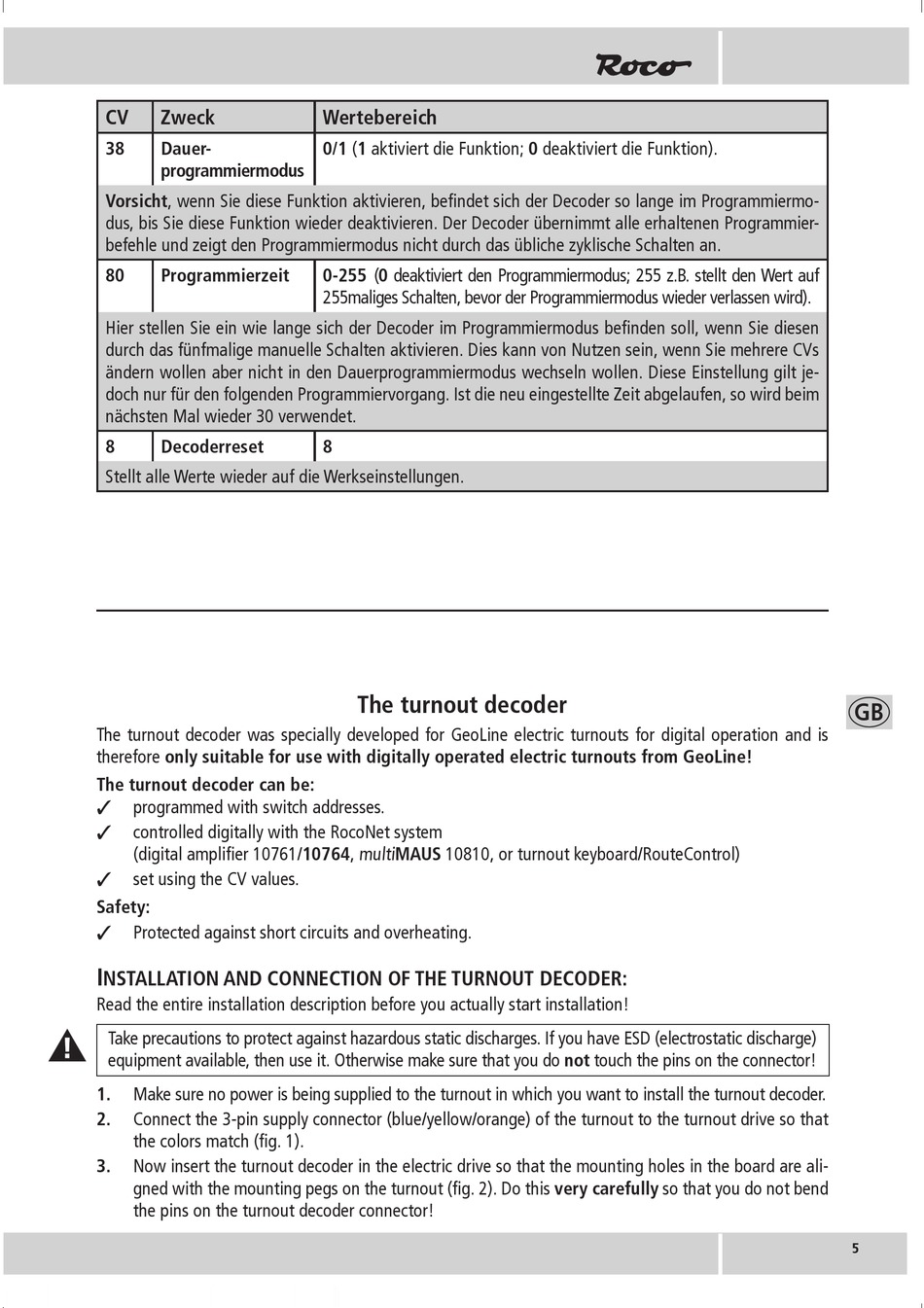

roco GeoLine 61196 Anleitung Seite 5

Weichendecoder

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

CV
Zweck
38
Dauer-
programmiermodus
Vorsicht, wenn Sie diese Funktion aktivieren, befindet sich der Decoder so lange im Programmiermo-
dus, bis Sie diese Funktion wieder deaktivieren. Der Decoder übernimmt alle erhaltenen Programmier-
befehle und zeigt den Programmiermodus nicht durch das übliche zyklische Schalten an.
80
Programmierzeit
Hier stellen Sie ein wie lange sich der Decoder im Programmiermodus befinden soll, wenn Sie diesen
durch das fünfmalige manuelle Schalten aktivieren. Dies kann von Nutzen sein, wenn Sie mehrere CVs
ändern wollen aber nicht in den Dauerprogrammiermodus wechseln wollen. Diese Einstellung gilt je-
doch nur für den folgenden Programmiervorgang. Ist die neu eingestellte Zeit abgelaufen, so wird beim
nächsten Mal wieder 30 verwendet.
8
Decoderreset
Stellt alle Werte wieder auf die Werkseinstellungen.
The turnout decoder was specially developed for GeoLine electric turnouts for digital operation and is
therefore only suitable for use with digitally operated electric turnouts from GeoLine!
The turnout decoder can be:
programmed with switch addresses.
controlled digitally with the RocoNet system
(digital amplifier 10761/10764, multi MAUS 10810, or turnout keyboard/RouteControl)
set using the CV values.
Safety:
Protected against short circuits and overheating.
I
NSTALLATION AND CONNECTION OF THE TURNOUT DECODER:
Read the entire installation description before you actually start installation!
Take precautions to protect against hazardous static discharges. If you have ESD (electrostatic discharge)
equipment available, then use it. Otherwise make sure that you do not touch the pins on the connector!
1.
Make sure no power is being supplied to the turnout in which you want to install the turnout decoder.
2.
Connect the 3-pin supply connector (blue/yellow/orange) of the turnout to the turnout drive so that
the colors match (fig. 1).
3.
Now insert the turnout decoder in the electric drive so that the mounting holes in the board are ali-
gned with the mounting pegs on the turnout (fig. 2). Do this very carefully so that you do not bend
the pins on the turnout decoder connector!
Wertebereich
0/1 (1 aktiviert die Funktion; 0 deaktiviert die Funktion).
0-255 (0 deaktiviert den Programmiermodus; 255 z.B. stellt den Wert auf
255maliges Schalten, bevor der Programmiermodus wieder verlassen wird).
8
The turnout decoder
GB
5
5
