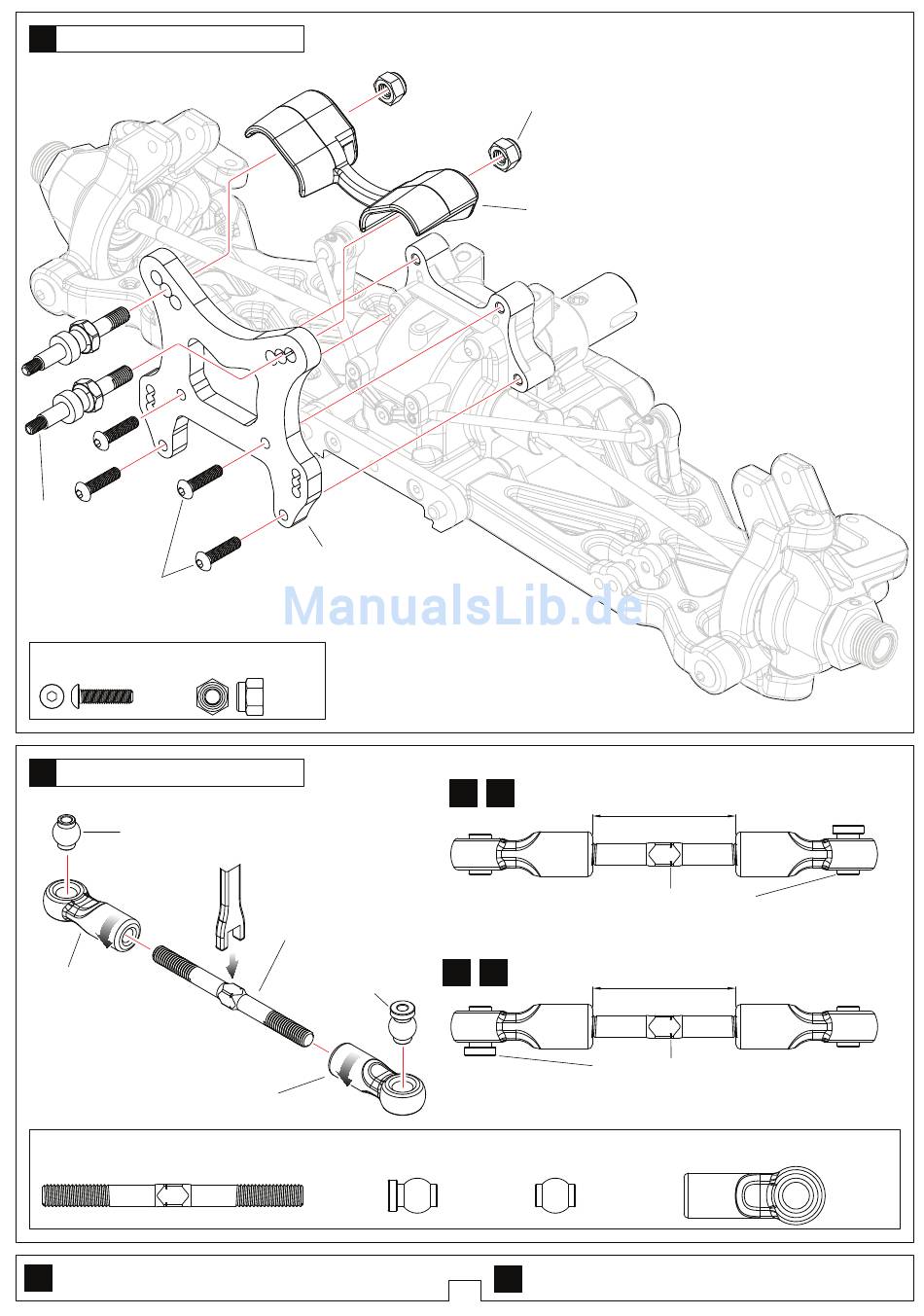

Front Shock Tower / Dämpferbrücke vorne /
11
Tour de choc frontal
115000879
Shock absorber Mount
115000768 M3x12
115000768 M3x12 Screw
115000762
......4
Front Upper Turnbuckle / Rechts-/Links Gewind.
12
vorne / Supérieur avant Tendeur
115000706
7.8 Ball stud
5mm
115000706
7.8 Ball End-Front Upper
115000706
7.8 Ball End-Front Upper
115000741 5x58 Turnbuckle
True-to -scale diagram
1:1
Maßstabsgetreu / pleine Echelle
115000730
Front Shock Tower
M4 Nylon Nut
.........2
115000741
5x58 Turnbuckle
115000706
7.8 Ball stud
115000706 7.8 Ball stud
.........2
115000762 M4
115000871
Cover-Front Shock
Front Upper-Left
1:1 x1
▲Projection.Note direction
Front Upper-Right
1:1 x1
▲Projection.Note direction
115000706 7.8 Ball stud
...............2
...............2
Assemble as many times as specified
x1
6
Anzahl der benötigten Teile / Nombre de pièces requises
C
Approx.32mm
Approx.32mm
115000706 7.8 Ball End-Front Upper
............4
