Steering Turnbuckle / Gewindestangen /
13
Les tiges filetées
115000706
6.8 Ball stud
115000706
6.8 Ball End-Steering
115000741 4x53 Turnbuckle
Front Upper/Steering Turnbuckle / obere vord.
14
Gewindestange / Supérieure avant / Turnbuckle
Front Upper Turnbuckle-Right
115000771 M3x25
115000769 M3x16 Screw
......2

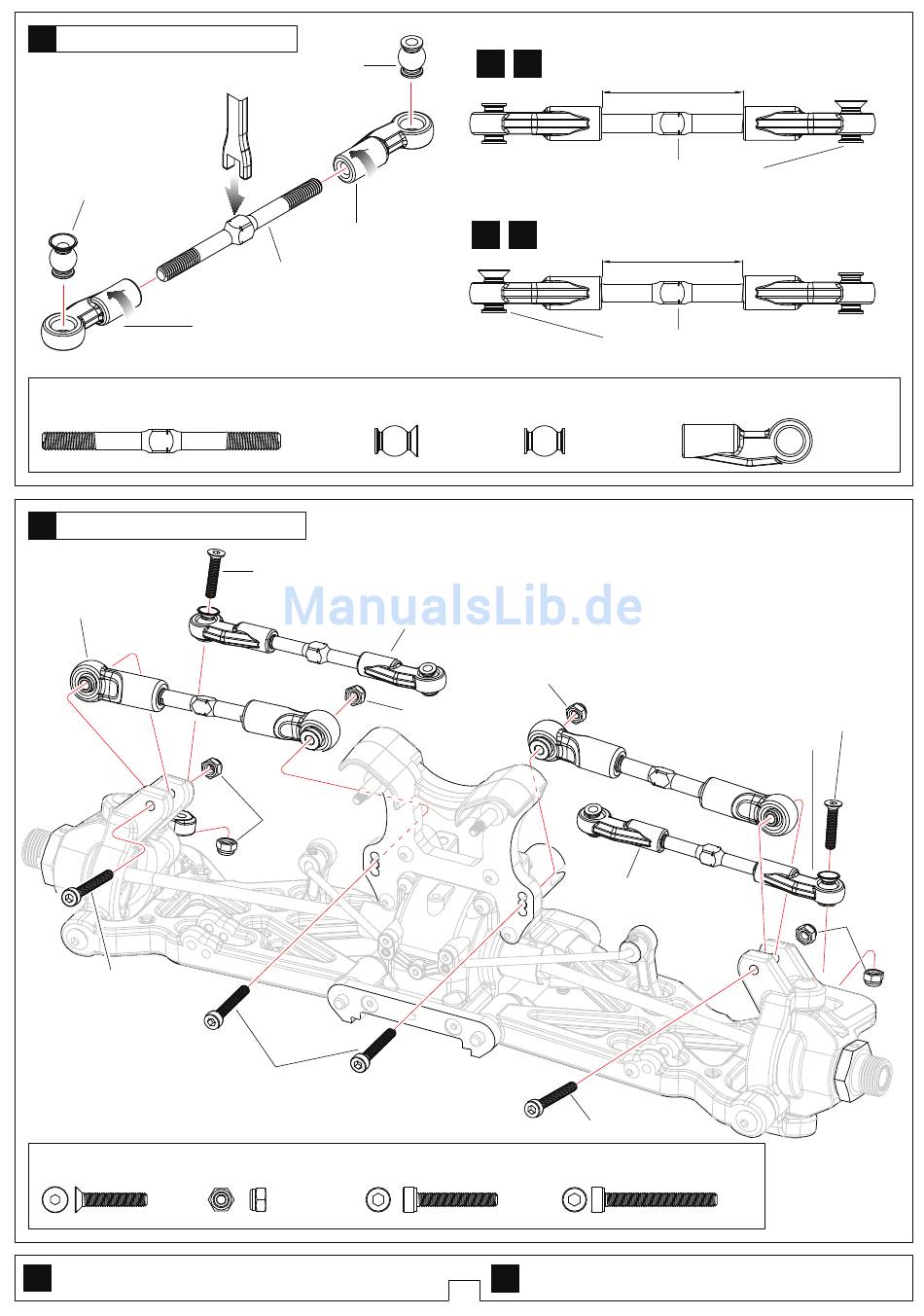

True-to -scale diagram
1:1
Maßstabsgetreu / pleine Echelle
115000706
6.8 Ball stud
5mm
115000706
6.8 Ball End-Steering
115000741
4x53 Turnbuckle
115000706 6.8 Ball stud
.........2
115000769 M3x16
115000762 M3
115000771 M3x18
115000762 M3 Nylon Nut
115000771 M3x18 Screw
............6
Steering-Left
1:1 x1
Steering-Right
1:1 x1
115000706 6.8 Ball stud
...............2
Steering Turnbuckle-Right
115000762 M3
115000762 M3
115000771 M3x25 Screw
......2
Assemble as many times as specified
x1
7
Anzahl der ben. Teile / Assemblez autant de fois que spécifié
Approx.31.5mm
▲Projection.Note direction
Approx.31.5mm
▲Projection.Note direction
115000706 6.8 Ball End-Steering
...............2
Steering Turnbuckle-Left
Front Upper Turnbuckle-Left
115000771 M3x25
......2
...............4
115000769 M3x16
115000762
M3
