The device should be installed in the imme-
diate vicinity of the guarded area. However,
install it in such a way that the PIR points
downward and the ultrasound generator up-
ward. If installed otherwise, water may pen-
etrate.

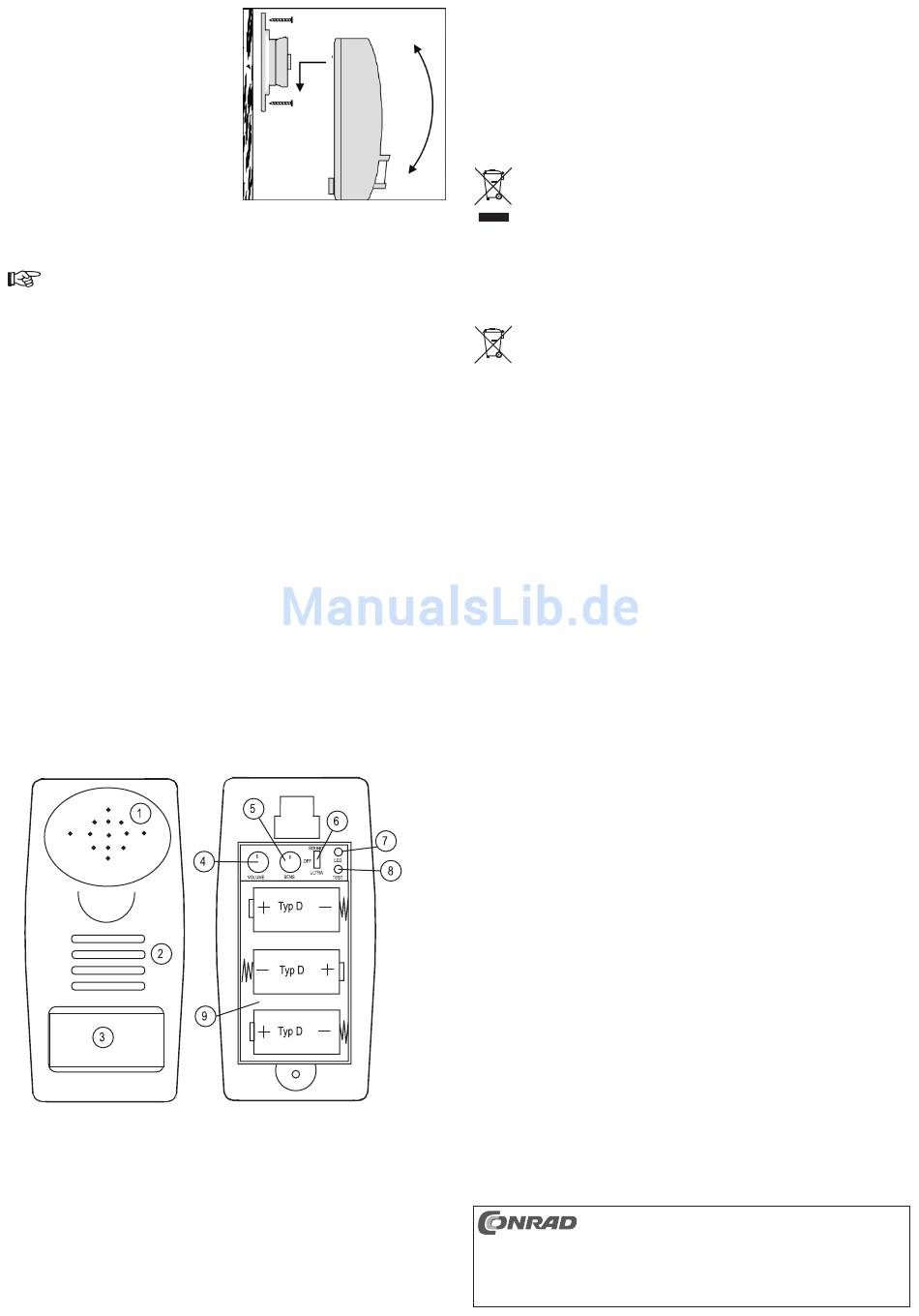

Secure the retaining plate on the wall using
the mounting material provided. Should the
supplied screws and plugs are not be suit-
able for your wall, please use others.
Then, suspend the animal repeller in the re-
taining plate from above (B) and then slide it
down until it clicks into place. The tilt can be adjusted so that the animal repeller can be aligned
appropriately.
The range of the PIR movement sensor is max. 7 m with a detection angle of 110°.
The battery compartment can remain open for the first function test in order to effect
further settings. However, moisture must not get in. Do not make installations/setups
during rain!
Close the battery compartment for normal operation.

Operation

1. Ultrasound generator
2. Loudspeaker
3. PIR movement sensor
4. "VOLUME" control knob The volume of the bird of prey sound simulator is set with this
control. We recommend setting the control knob somewhat at the centre by default.
5. Rotary knob "SENS": The sensitivity of the PIR sensor is set with this control. If the sensitiv-
ity is too low, a signal is not triggered or only when large animals are detected. However, if
the sensitivity is too high, unnecessary signals may be triggered. We recommend setting the
control knob somewhat at the centre by default.
6. On/off slide switch: You can use this slide switch to toggle between the functions OFF, bird
of prey sound simulator (SOUND) or ultrasound generator (ULTRA).
Select the bird of prey sound simulator to repel songbirds, etc.
Select the bird of prey generator sound simulator to repel dogs, cats, etc.
7. LED indicator to control the ultrasound function: The LED is on as soon as the ultrasound is
activated.
8. "TEST" button to activate the ultrasound function: Select the function ultrasound generator
(ULTRA) with the On/OFF slide switch. Press the "TEST" button. The ultrasound generator
is switched on for 20 seconds and the LED is on. This function does not have a function
when the slide switch is in position "OFF" and "SOUND" (bird of prey sound simulator).
9. Battery compartment

Maintenance

The product does not require any maintenance. You should never take it apart. The outside of
the product should be cleaned only with a clean, soft, dry cloth. Never use aggressive cleaning
agents or chemical solutions since these might damage the surface of the casing or impair
the operation Do not press too hard on the lens of the PIR movement detector while cleaning!
Disposal
a) Product
Electronic devices are recyclable waste materials and must not be disposed of in the
household waste!
Please dispose of the product, when it is no longer of use, according to the current
statutory requirements.
Remove any inserted battery and dispose of it separately from the product.
b) Single-use and rechargeable batteries
As the end user, you are required by law (Battery Regulation) to return used batteries and
rechargeable batteries. Do not dispose of used batteries in the household waste!
Batteries/rechargeable batteries contain harmful materials and are labelled with
the symbol shown to indicate that disposal in the household waste is forbidden.
The symbols of the relevant heavy metals are: Cd=cadmium, Hg=mercury, Pb=lead
(marking can be seen on the battery/rechargeable battery, e.g., underneath the
refuse bin symbol shown on the left).
You can return used (rechargeable) batteries free of charge at the official collection points in
your municipality, our stores, or where ever (rechargeable) batteries are sold!
You thereby fulfil your statutory obligations and contribute to the protection of the environment.

Technical Data

Operating voltage ..............................................................4.5 V/DC (3 x 1.5V batteries; type D)
Max. range of PIR sensor ..................................................7 m
PIR detection angle ...........................................................110°
Frequency of ultrasound generator ...................................20 kHz - 40 kHz
Activation duration of ultrasound generator ......................approx. 20 seconds
Sound pressure of bird of prey sound simulator ................max. 105 dB
Activation duration of bird of prey sound simulator ...........approx. 60 seconds
Type of protection ..............................................................IP55
Dimensions ........................................................................101 x 228 x 52 mm
Weight ...............................................................................365 g (without batteries)
These operating instructions are a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1,
D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming,
or the capture in electronic data processing systems require the prior written approval by the editor.
Reprinting, also in part, is prohibited.
These operating instructions represent the technical status at the time of printing. Changes in
technology and equipment reserved.
© Copyright 2014 by Conrad Electronic SE.
