Digital Monocular Microscope with Built-in Camera
Instruction Manual
06/16 ALF
1. Description, technical data
The digital monocular microscope with built-in
camera allows two-dimensional viewing of ob-
jects (thin sections of plant or animal specimen)
in 40x to 1000x magnification. It also allows
photographic or video-recording documentation
of images.
As well as real-time video playback, single im-
ages, sequences and video recording, the
ScopeImage software provides a wide range of
functions for the presentation, processing and
evaluation of images.
The installation CD contains a detailed descrip-
tion of the software in English, and additional
advice and assistance is available in the help
files of the software.
®
PHYSICS
1013152
Stand: All-metal stand, arm firmly connected
with base, pinion knobs attached on both sides
of the stand for coarse and fine focusing
Tube: Monocular inclined 45°, head rotation
360°
Eyepiece: Wide field eyepiece WF 10x 18 mm
Objectives: Revolving nosepiece with 3 achro-
matic objectives 4x / 0.10, 10x / 0.25, 40x / 0.65
Magnification: 40x, 100x, 400x
Object stage: x-y mechanical stage, 125 mm x
115 mm, with object guide, adjustment range 70
mm x 20 mm
Illumination: Adjustable LED lighting integrated
in base. Universal 100 V to 240 V, 50/60 Hz
power supply
1

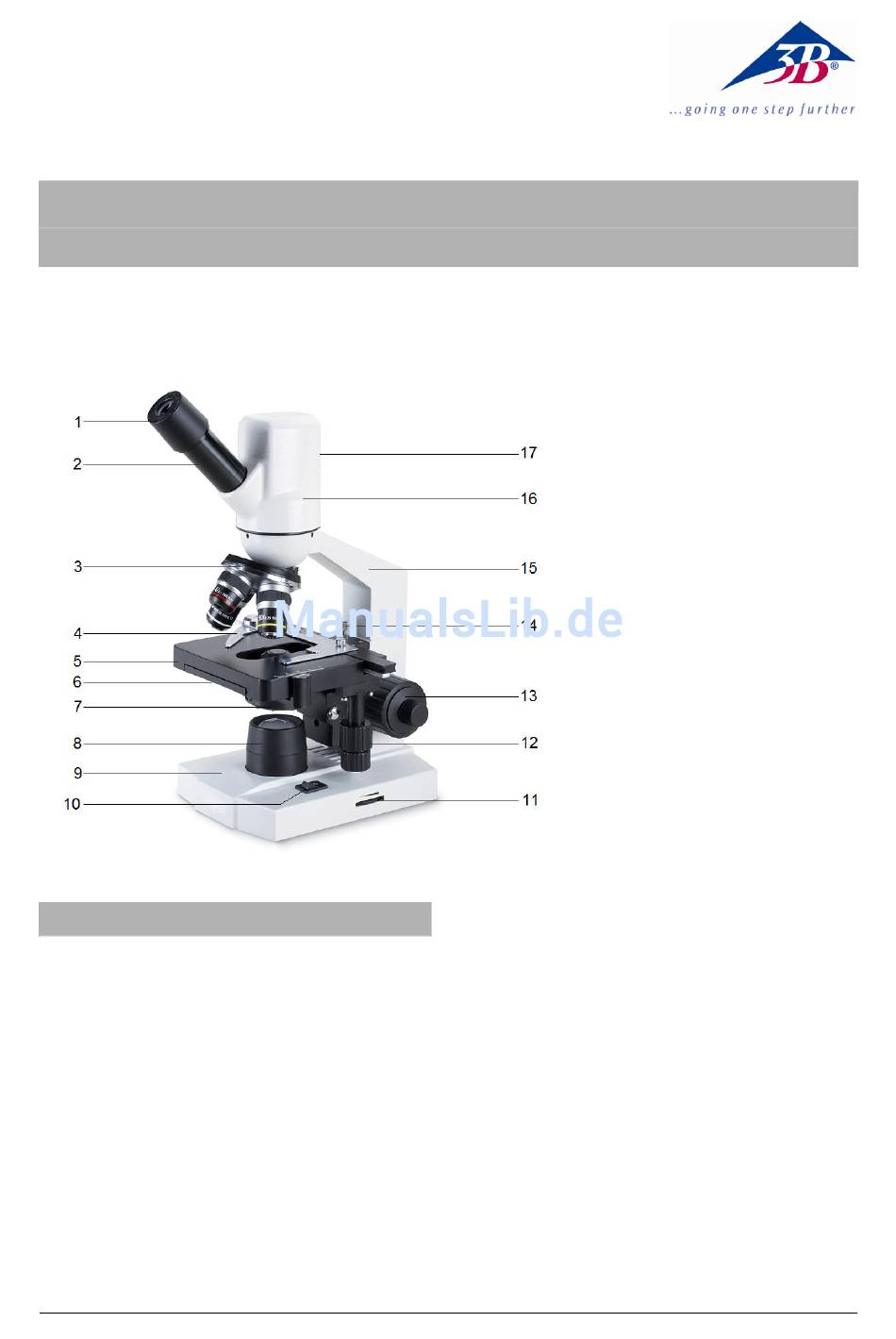

1 Eyepiece
2 Tube
3 Revolver with objectives
4 Object guide
5 Object stage
6 Condenser control (not
visible)
7 Condenser with iris dia-
phragm and filter holder
8 Lamp housing
9 Base
10 Mains switch
11 Illumination control
12 Coaxial movement control
for the specimen stage
13 Coarse and fine movement
controls
14 Lock screw for object stage
15 Stand
16 Camera
17 USB connection
