G

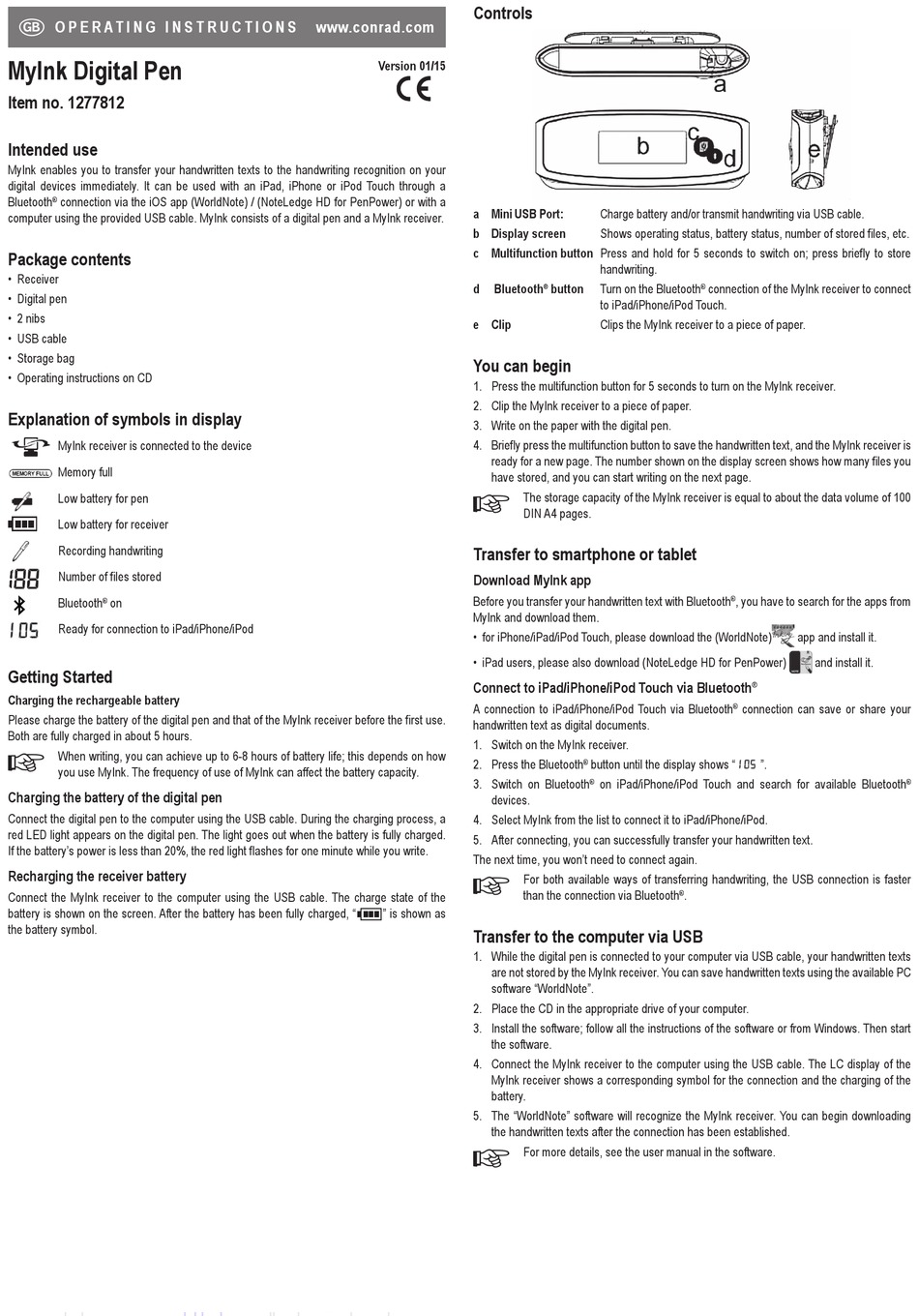

O P E R A T I N G I N S T R U C T I O N S
MyInk Digital Pen
Item no. 1277812
Intended use
MyInk enables you to transfer your handwritten texts to the handwriting recognition on your
digital devices immediately. It can be used with an iPad, iPhone or iPod Touch through a
Bluetooth connection via the iOS app (WorldNote) / (NoteLedge HD for PenPower) or with a
®
computer using the provided USB cable. MyInk consists of a digital pen and a MyInk receiver.
Package contents
• Receiver
• Digital pen
• 2 nibs
• USB cable
• Storage bag
• Operating instructions on CD
Explanation of symbols in display
MyInk receiver is connected to the device
Memory full
Low battery for pen
Low battery for receiver
Recording handwriting
Number of files stored
Bluetooth on
®
Ready for connection to iPad/iPhone/iPod
Getting Started
Charging the rechargeable battery
Please charge the battery of the digital pen and that of the MyInk receiver before the first use.
Both are fully charged in about 5 hours.
When writing, you can achieve up to 6-8 hours of battery life; this depends on how
you use MyInk. The frequency of use of MyInk can affect the battery capacity.
Charging the battery of the digital pen
Connect the digital pen to the computer using the USB cable. During the charging process, a
red LED light appears on the digital pen. The light goes out when the battery is fully charged.
If the battery's power is less than 20%, the red light flashes for one minute while you write.
Recharging the receiver battery
Connect the MyInk receiver to the computer using the USB cable. The charge state of the
battery is shown on the screen. After the battery has been fully charged, "
the battery symbol.
Controls
www.conrad.com
Version 01/15
a Mini USB Port:
b Display screen
c Multifunction button Press and hold for 5 seconds to switch on; press briefly to store
d
e Clip
You can begin
1. Press the multifunction button for 5 seconds to turn on the MyInk receiver.
2. Clip the MyInk receiver to a piece of paper.
3. Write on the paper with the digital pen.
4. Briefly press the multifunction button to save the handwritten text, and the MyInk receiver is
Transfer to smartphone or tablet
Download MyInk app
Before you transfer your handwritten text with Bluetooth
MyInk and download them.
• for iPhone/iPad/iPod Touch, please download the (WorldNote)
• iPad users, please also download (NoteLedge HD for PenPower)
Connect to iPad/iPhone/iPod Touch via Bluetooth
A connection to iPad/iPhone/iPod Touch via Bluetooth
handwritten text as digital documents.
1. Switch on the MyInk receiver.
2. Press the Bluetooth
3. Switch on Bluetooth
4. Select MyInk from the list to connect it to iPad/iPhone/iPod.
5. After connecting, you can successfully transfer your handwritten text.
The next time, you won't need to connect again.
" is shown as
Transfer to the computer via USB
1. While the digital pen is connected to your computer via USB cable, your handwritten texts
2. Place the CD in the appropriate drive of your computer.
3. Install the software; follow all the instructions of the software or from Windows. Then start
4. Connect the MyInk receiver to the computer using the USB cable. The LC display of the
5. The "WorldNote" software will recognize the MyInk receiver. You can begin downloading
Charge battery and/or transmit handwriting via USB cable.
Shows operating status, battery status, number of stored files, etc.
handwriting.
Bluetooth button Turn on the Bluetooth
®
to iPad/iPhone/iPod Touch.
Clips the MyInk receiver to a piece of paper.
ready for a new page. The number shown on the display screen shows how many files you
have stored, and you can start writing on the next page.
The storage capacity of the MyInk receiver is equal to about the data volume of 100
DIN A4 pages.
button until the display shows "
®
on iPad/iPhone/iPod Touch and search for available Bluetooth
®
devices.
For both available ways of transferring handwriting, the USB connection is faster
than the connection via Bluetooth
are not stored by the MyInk receiver. You can save handwritten texts using the available PC
software "WorldNote".
the software.
MyInk receiver shows a corresponding symbol for the connection and the charging of the
battery.
the handwritten texts after the connection has been established.
For more details, see the user manual in the software.
connection of the MyInk receiver to connect
®
, you have to search for the apps from
®
app and install it.
and install it.
®
connection can save or share your
®
".
.
®
®
