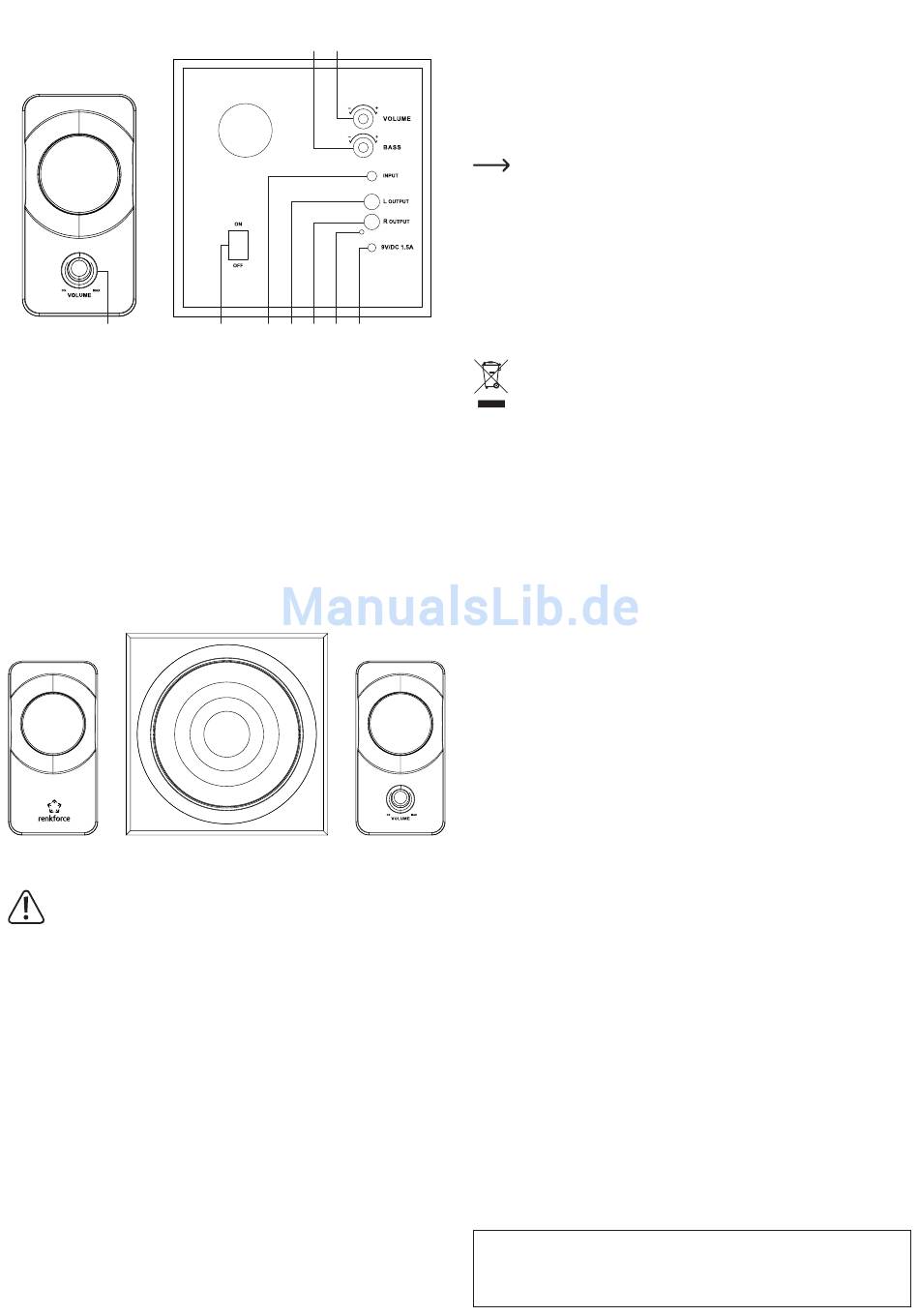

Product overview
9
1 Bass control
2 Volume control
3 Connection jack for power supply unit
4 Indicator light
5 Red RCA jack (right speaker)
6 White RCA jack (left speaker)
7 Audio input
8 On/off switch
9 Volume control
Positioning
The speaker with the volume control is the right speaker. Position the speakers and
the subwoofer according to the following figure.
Connection
Make sure that the subwoofer is turned off (on/off switch to the OFF
position).
Turn both knobs on the back of the subwoofer and the control of the right
speaker all the way to the left.
• Connect the white RCA plug of the left speaker to the white RCA jack on the back
of the subwoofer.
• Connect the red RCA plug of the right speaker to the red RCA jack on the back of
the subwoofer.
• Connect the black plug of the right speaker to the INPUT socket on the back of
the subwoofer.
• Connect the turquoise green plug of the right speaker to the audio output of your
computer.
• Connect the DC plug of the power supply unit with the appropriate connection
socket on the back of the subwoofer.
• Connect the mains plug to a standard mains socket.
1
2
8
7
6
5
4
3
Operation
• Switch on the subwoofer (on/off switch to the ON position). The blue indicator light
goes on.
• Start playback on your computer.
• Turn both volume controls and the bass control slowly to the right until the desired
volume level and the desired bass level have been set.
• When turning off the product, turn both volume controls all the way to the left.
You may need to set the speaker set as an output device in your operating
system in system preferences.
Care and cleaning
• Always disconnect the product from the power supply before cleaning it.
• Never use aggressive detergents, rubbing alcohol or other chemical solutions, as
these may damage the casing or cause the product to malfunction.
• Use a dry, lint-free cloth to clean the product.
Disposal
Electronic devices are recyclable waste and must not be placed in
household waste. Always dispose of the product according to the relevant
statutory regulations.
You thus fulfill your statutory obligations and contribute to the protection of
the environment.
Technical data
a) General information
Channels ...................................2.1
Output power .............................8 W (RMS)
Frequency response ..................60 – 19000 Hz
Cable length ..............................1.2 m
Operating/storage conditions .....-20 to +60 °C, max. 80 % RH
b) Subwoofer
Driver unit ..................................10.16 cm (4"), 4 Ω, 10 W
Dimensions (W x H x D) ............180 x 180 x 215 mm
Weight .......................................1.4 kg
c) Satellite loudspeakers
Driver unit ..................................6.35 cm (2.5 "), 4 Ω, 3 W
Dimensions (W x H x D) ............80 x 156 x 90 mm
Weight .......................................900 g
d) Power adapter
Input voltage ..............................100 – 240 V/AC, 50/60 Hz
Output voltage ...........................9 V/DC
Output current ............................1.5 A
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method (e.g. photocopying, microfilming, or the capture in
electronic data processing systems) requires prior written approval from the editor. Reprinting, also in part, is prohibited.
This publication represents the technical status at the time of printing.
Copyright 2018 by Conrad Electronic SE.
*1577044_v2_0218_02_IPL_m_en
