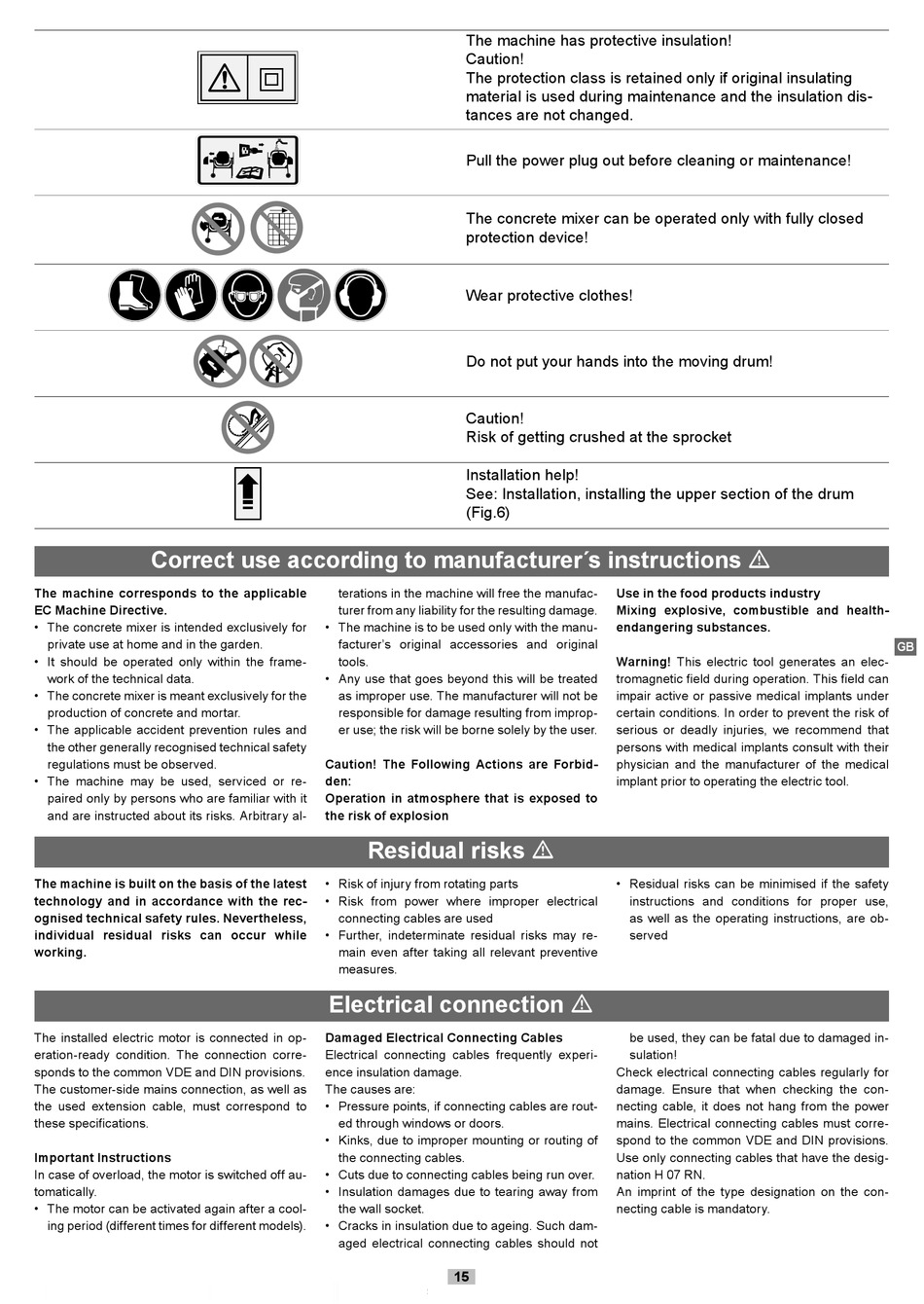

Scheppach MIX125 Anleitung Seite 15

129 x 70
Ø 25 mm
Size: 20 (mm)
Correct use according to manufacturer´s instructions m
The machine corresponds to the applicable
EC Machine Directive.
•
The concrete mixer is intended exclusively for
private use at home and in the garden.
•
It should be operated only within the frame-
work of the technical data.
•
The concrete mixer is meant exclusively for the
production of concrete and mortar.
• The applicable accident prevention rules and
the other generally recognised technical safety
regulations must be observed.
•
The machine may be used, serviced or re-
paired only by persons who are familiar with it
and are instructed about its risks. Arbitrary al-
The machine is built on the basis of the latest
technology and in accordance with the rec-
ognised technical safety rules. Nevertheless,
individual residual risks can occur while
working.
The installed electric motor is connected in op-
eration-ready condition. The connection corre-
sponds to the common VDE and DIN provisions.
The customer-side mains connection, as well as
the used extension cable, must correspond to
these specifications.
Important Instructions
In case of overload, the motor is switched off au-
tomatically.
•
The motor can be activated again after a cool-
ing period (different times for different models).
40 (mm)
terations in the machine will free the manufac-
turer from any liability for the resulting damage.
•
The machine is to be used only with the manu-
facturer's original accessories and original
tools.
•
Any use that goes beyond this will be treated
as improper use. The manufacturer will not be
responsible for damage resulting from improp-
er use; the risk will be borne solely by the user.
Caution! The Following Actions are Forbid-
den:
Operation in atmosphere that is exposed to
the risk of explosion
Residual risks m
•
Risk of injury from rotating parts
•
Risk from power where improper electrical
connecting cables are used
•
Further, indeterminate residual risks may re-
main even after taking all relevant preventive
measures.
Electrical connection m
Damaged Electrical Connecting Cables
Electrical connecting cables frequently experi-
ence insulation damage.
The causes are:
•
Pressure points, if connecting cables are rout-
ed through windows or doors.
•
Kinks, due to improper mounting or routing of
the connecting cables.
•
Cuts due to connecting cables being run over.
•
Insulation damages due to tearing away from
the wall socket.
• Cracks in insulation due to ageing. Such dam-
aged electrical connecting cables should not
15
The machine has protective insulation!
Caution!
The protection class is retained only if original insulating
material is used during maintenance and the insulation dis-
tances are not changed.
Pull the power plug out before cleaning or maintenance!
The concrete mixer can be operated only with fully closed
protection device!
Wear protective clothes!
Do not put your hands into the moving drum!
Caution!
Risk of getting crushed at the sprocket
Installation help!
See: Installation, installing the upper section of the drum
(Fig.6)
Use in the food products industry
Mixing explosive, combustible and health-
endangering substances.
Warning! This electric tool generates an elec-
tromagnetic field during operation. This field can
impair active or passive medical implants under
certain conditions. In order to prevent the risk of
serious or deadly injuries, we recommend that
persons with medical implants consult with their
physician and the manufacturer of the medical
implant prior to operating the electric tool.
•
Residual risks can be minimised if the safety
instructions and conditions for proper use,
as well as the operating instructions, are ob-
served
be used, they can be fatal due to damaged in-
sulation!
Check electrical connecting cables regularly for
damage. Ensure that when checking the con-
necting cable, it does not hang from the power
mains. Electrical connecting cables must corre-
spond to the common VDE and DIN provisions.
Use only connecting cables that have the desig-
nation H 07 RN.
An imprint of the type designation on the con-
necting cable is mandatory.
