6

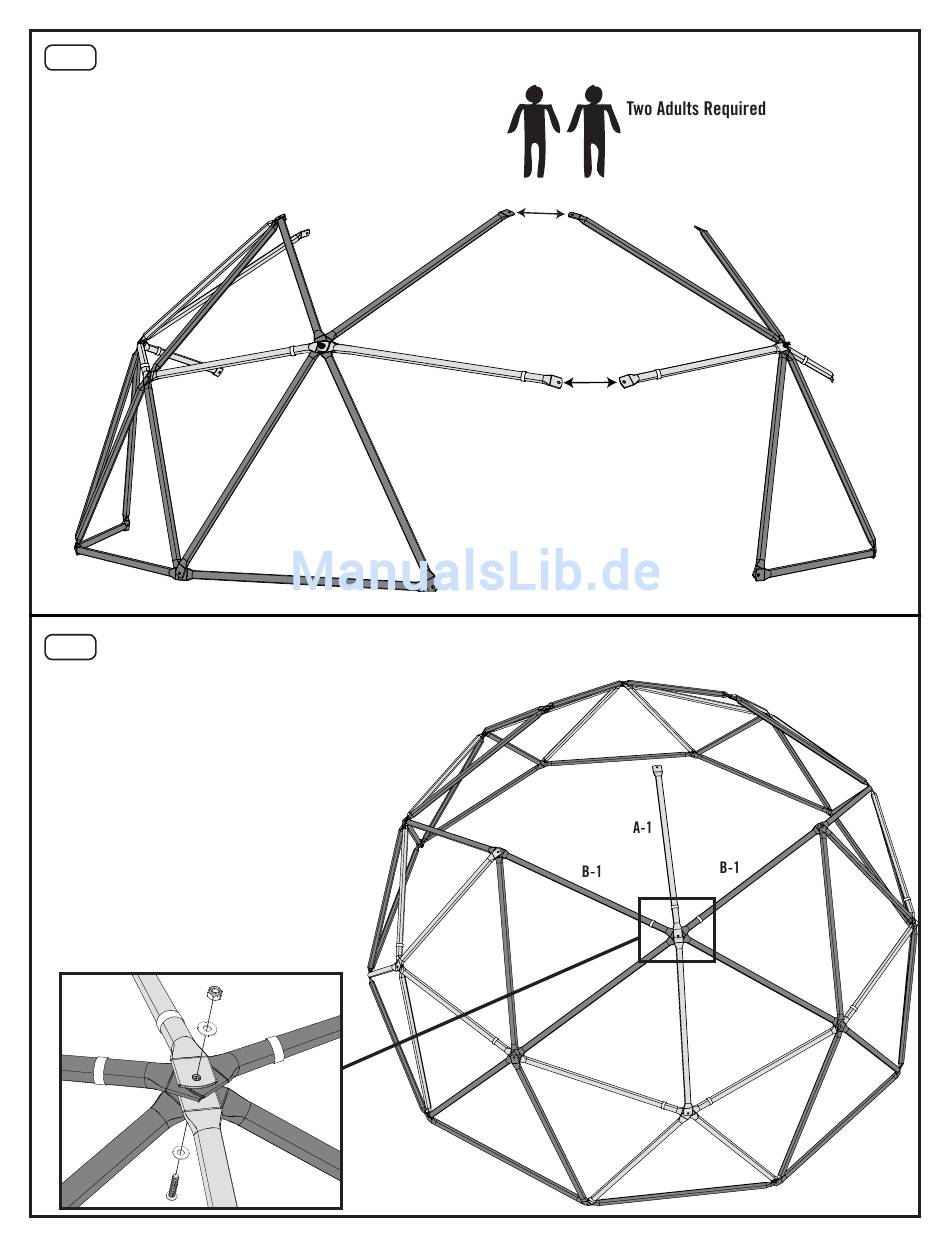

Add one of the assemblies completed in step 2, to the
assembly completed in step 5.
Use the instructions from steps 3, 4, and 5 to attach the
assemblies. Continue adding the assemblies from step 2 to
complete the circle.
7
Remove the Standard Nut (HD) and Washers
(HE) at joint d and add a Large Blue Tube
(B-1). Replace the Washer and Nut; however
do not completely tighten joint d. Repeat the
same process for joint e.
Remove the Standard Nut (HD) and Washer
(HE) at joint f. Place the added Large Blue
Tubes (B-1) over the bolt in the order
shown. Add a Large Red Tube (A-1) on the
top of joint f. Replace the Washer (HE) and
Standard Nut (HD). Tighten joint completely.
Complete around the circle.
6
HD
HE
4
HE
2
HA
5
1
3
for Assembly
6
joint d
4
2
3
joint e
5
joint f
1
9
