8

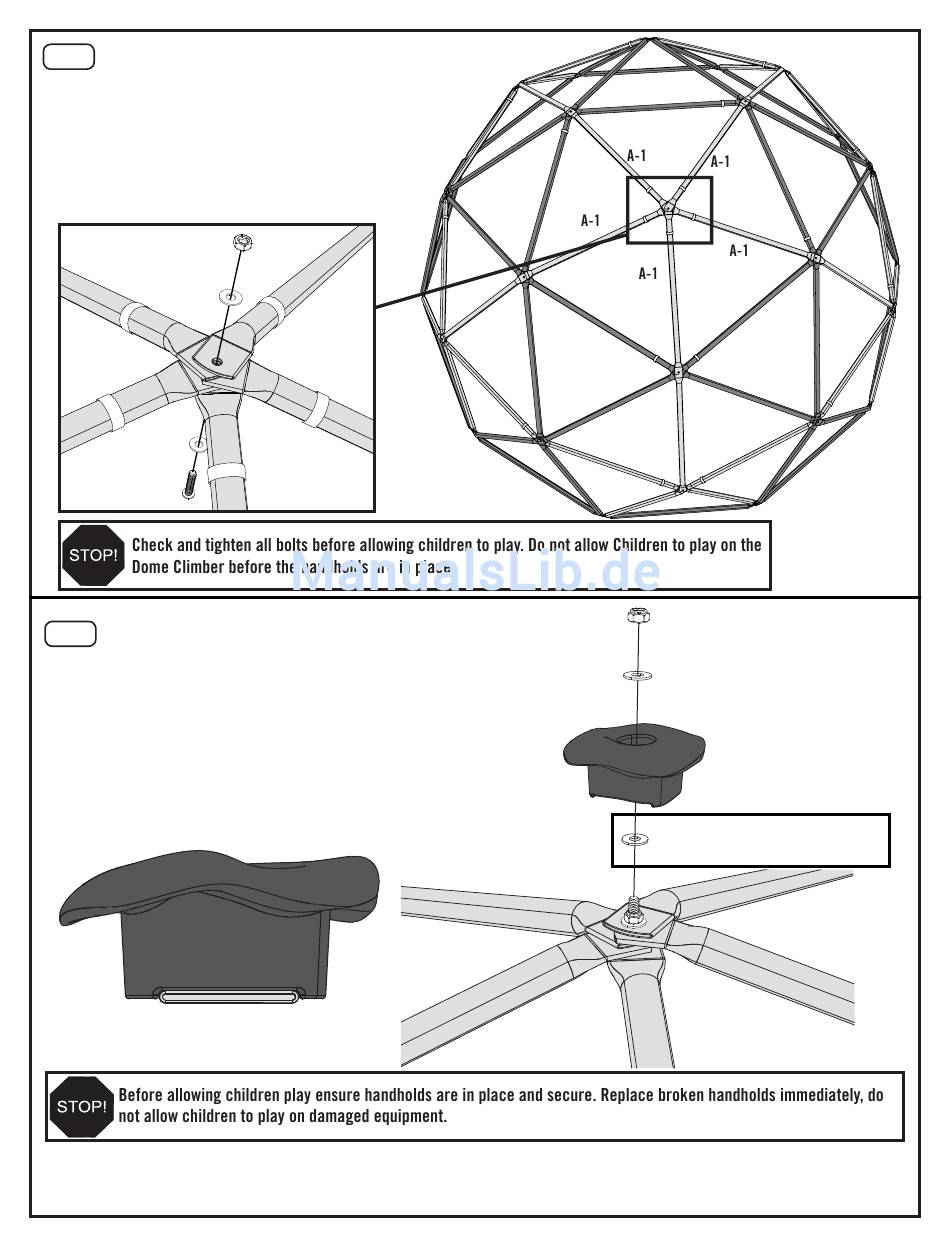

Connect five Large Red Tubes (A-1) at the top by sliding
a
1 3/4"
Bolt (HA) through a Washer (HE) and through
the five Large Red Tubes (A-1) in the order shown.
Secure with a Washer (HE) and Standard Nut (HD).
Tighten completely.
HD
HE
4
HE
2
HA
9
Attach Handholds (C) to each of the joints not touching the ground.
Attach the Handholds by sliding a Washer (HE) over the 1 3/4" Bolt
(HA) and placing the Handhold (C) over the 1 3/4" Bolt (HA). Line up
the notch on the bottom of the handhold with the tube on the top of
the joint.
Secure each Handhold with a Washer (HE) and Nylock Nut (HC).
Tighten completely.
Make sure the notch in the handhold
is securely in place over the Tube, as
shown.
This may cause the Dome to lose its shape. Instead, use several people to lift the Dome and move it to the new location.
10
5
3
1
When moving the Dome Climber, do not slide the Dome or tip it on its side.
5
4
2
1
HC
HE
C
STOP: It is critical that this
HE
washer is added.
HA
3
