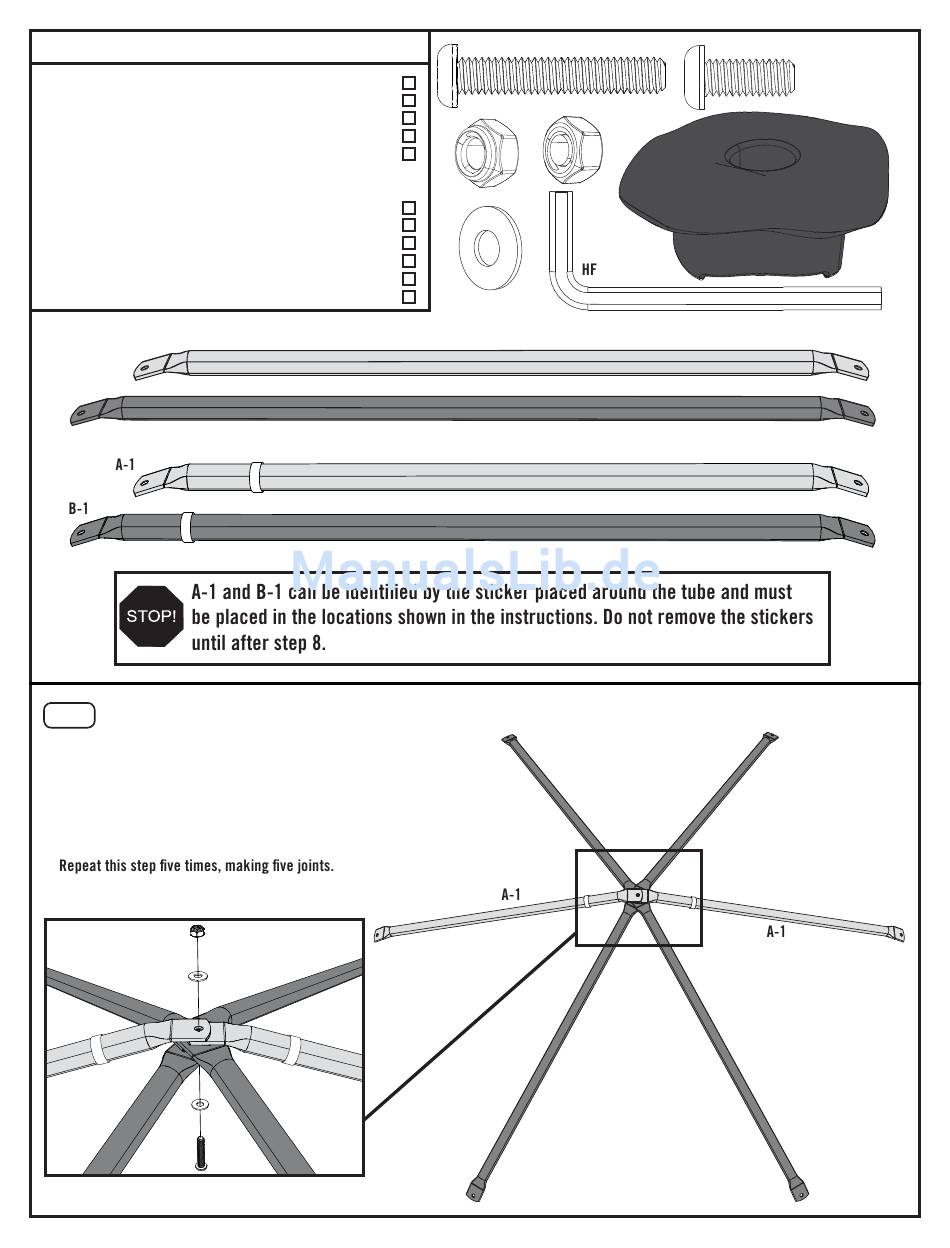

Primary Color Parts List
A
8002153
1 1/8" x 33.875" Red Tubing 15
B
8002151
1 1/8" x 38.128" Blue Tubing 30
A-1
8002886
1 1/4" x 33.875" Red Tubing 15
B -1
8002890
1 1/4" x 38.128" Blue Tubing 5
C
8002067
Handhold
Dome Climber Hardware (8002389)
HA
8000134
5/16" x 1 3/4" Bolt
HB
8000162
5/16" x 3/4" Bolt
HC
8000209
5/16" Nylock Nut
HD
8001390
5/16" Standard Nut
HE
8002027
1/4" Thin Washer
HF
8000355
3/16" Allen Wrench
There may be extra hardware.
A
B
1
Complete the joint shown five times. Slide a Washer (HE) over
a
1 3/4"
Bolt (HA), then slide the Bolt through four Blue Tubes
(B) and two Large Red Tubes (A-1) in the order indicated by the
numbers. Slide another Washer (HE) over the Bolt and secure
with a Standard Nut (HD). Hold the Nut with a wrench while
tightening the Bolt. Tighten completely to prevent movement.
4
6
HE
HA
2
6
16
16
10
26
16
84
2
HD
3
HE
5
1
HA
HC
HD
HE
4
B
6
B
2
HB
C
3
B
B
1
5
