Owner's Manual and Assembly Instructions

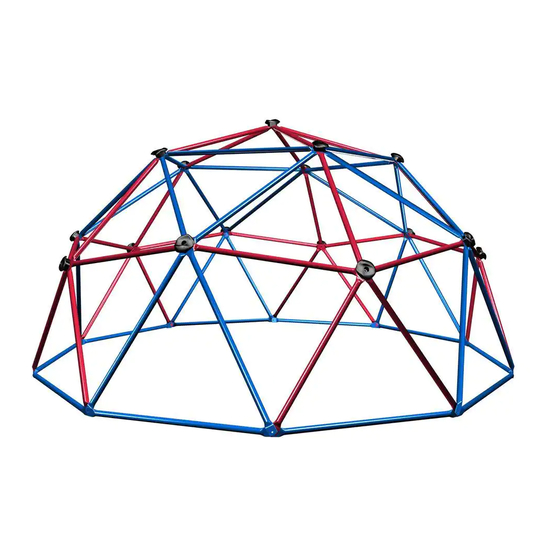

5' Dome Climber with Handholds Model #101301
**U.S. and Canada customers ONLY**
IF ASSISTANCE IS NEEDED,
DO NOT CONTACT THE STORE!
CALL OUR CUSTOMER SERVICE DEPARTMENT at 1 (800) 225-3865
HOURS: 7:00 a.m. to 5:00 p.m. Monday through Friday (Mountain Standard Time)
Call or visit our Web site at www.lifetime.com for Saturday hours
**For customers outside the U.S. or Canada, please contact the store for assistance.**
Lifetime Products, Inc.
This product is intended for use by children ages 3 to 10 and is for residential
use only.
1
Instruction #1050346 G
3/12/2013

Werbung

loading

Verwandte Anleitungen für Lifetime 101301

Inhaltszusammenfassung für Lifetime 101301

  • Seite 1 CALL OUR CUSTOMER SERVICE DEPARTMENT at 1 (800) 225-3865 HOURS: 7:00 a.m. to 5:00 p.m. Monday through Friday (Mountain Standard Time) Call or visit our Web site at www.lifetime.com for Saturday hours **For customers outside the U.S. or Canada, please contact the store for assistance.** Lifetime Products, Inc.
  • Seite 2 Most injuries are caused by misuse and/or not following instructions. Use caution when using this play equipment. Customer Service: 1-800-225-3865 Monday-Friday 7 a.m. to 5 p.m. MST Call or visit our Web site at www.lifetime.com for Saturday hours Lifetime Products, Inc. P.O. Box 160010 Clearfield, UT 84016-0010 This product is intended for use by children ages 3 to 10 and is for residential use only.

  • Seite 3: Maintenance Instructions

    Installation and Ground Preparation Instructions: such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires. Operating Instructions: Observing the following instructions and warnings reduces the likelihood of serious or fatal injury. lb (272 kg). ponchos, scarves, jackets with neck drawstrings, helmets with straps, and other loose-fitting clothing that is poten- cause a strangulation hazard.
  • Seite 4 Maintenance Instructions, Continued: depth. Replace as necessary. Twice a month during play season: depth. Replace as necessary. depth. Replace as necessary. Disposal Instructions: Playset dimensions: 10’ diameter Recommended play area: 22’ diameter 6 feet 6 feet...
  • Seite 5 maintained at depths of 6, 9, and 12 inches. How- The U.S. Consumer Product Safety Commis- ever, it should be recognized that all injuries due to sion (CPSC) estimates that about 100,000 play- falls cannot be prevented no matter what surfacing material is used.
  • Seite 6 Primary Color Parts List 8002153 1 1/8” x 33.875” Red Tubing 15 8002151 1 1/8” x 38.128” Blue Tubing 30 8002886 1 1/4” x 33.875” Red Tubing 15 B -1 8002890 1 1/4” x 38.128” Blue Tubing 5 8002067 Handhold Dome Climber Hardware (8002389) 8000134 5/16”...
  • Seite 7 Attach a Blue Tube (B) to tubes 1 and 2 at the bottom of each assembly completed in the previous step (joint a). Slide a 3/4” Bolt (HB) through a Thin Washer (HE) and the two Blue Tubes (B). Place a Washer (HE) over the 3/4”...
  • Seite 8 Add two additional Red Tubes (A) in the order indicated. Place the 1 3/4” Bolt (HA) through the Washer (HE) then through the five Red Tubes (A). Secure with Washer (HE) and Standard Nut (HD). Do not tighten completely until after step 5. for Assembly Ground Ground...
  • Seite 9 Add one of the assemblies completed in step 2, to the assembly completed in step 5. for Assembly Use the instructions from steps 3, 4, and 5 to attach the assemblies. Continue adding the assemblies from step 2 to complete the circle. Remove the Standard Nut (HD) and Washers (HE) at joint d and add a Large Blue Tube (B-1).
  • Seite 10 Connect five Large Red Tubes (A-1) at the top by sliding 1 3/4” Bolt (HA) through a Washer (HE) and through the five Large Red Tubes (A-1) in the order shown. Secure with a Washer (HE) and Standard Nut (HD). Tighten completely.
