2

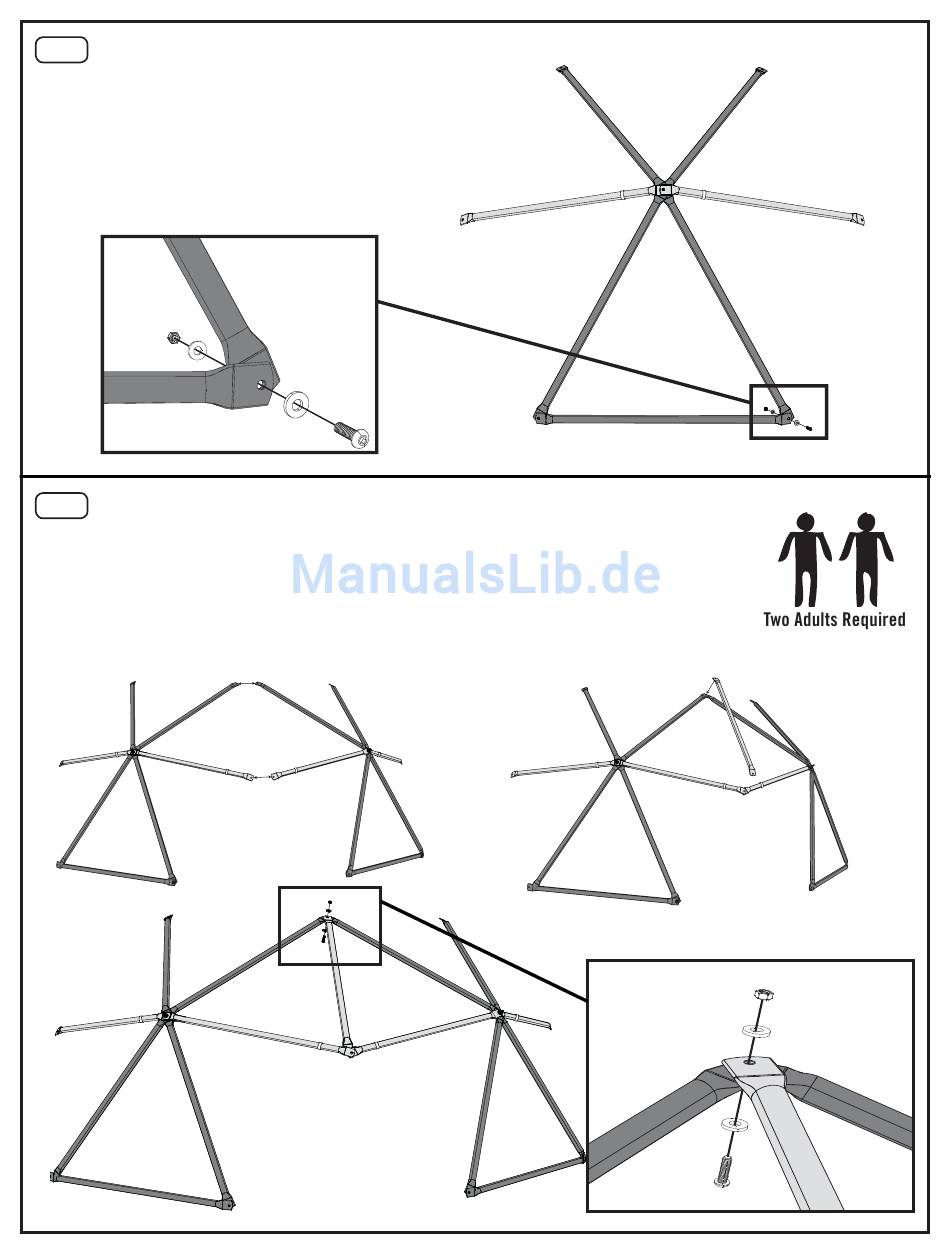

Attach a Blue Tube (B) to tubes 1 and 2 at the bottom of each
assembly completed in the previous step (joint a). Slide a 3/4" Bolt
(HB) through a Thin Washer (HE) and the two Blue Tubes (B). Place a
Washer (HE) over the 3/4" Bolt (HB) and finger tighten the Nylock Nut
(HC) for removal later. Follow the same assembly for
this step on all five assemblies.
B
HC
HE
B
3
Bring two of the assembles completed in steps 1 and 2 together as shown in the image below.
Place a Red Tube (A) over the Blue Tubes (B) and secure the Red and Blue Tubes together at the
top joint as shown below by placing a
Tubes (B) and Red Tube (A). Place a Washer (HE) over the 1 3/4" Bolt (HA) and finger tighten the
Standard Nut (HD) for removal later.
The Geo-Dome should be stood upright to complete this step and the rest of the assembly.
B
Ground
joint b and repeat
HE
HB
1 3/4"
Bolt (HA) through Washer (HE) then through the Blue
B
A
4
6
2
joint b
B
Ground
3
5
1
joint a
for Assembly
HD
HE
HE
HA
7
